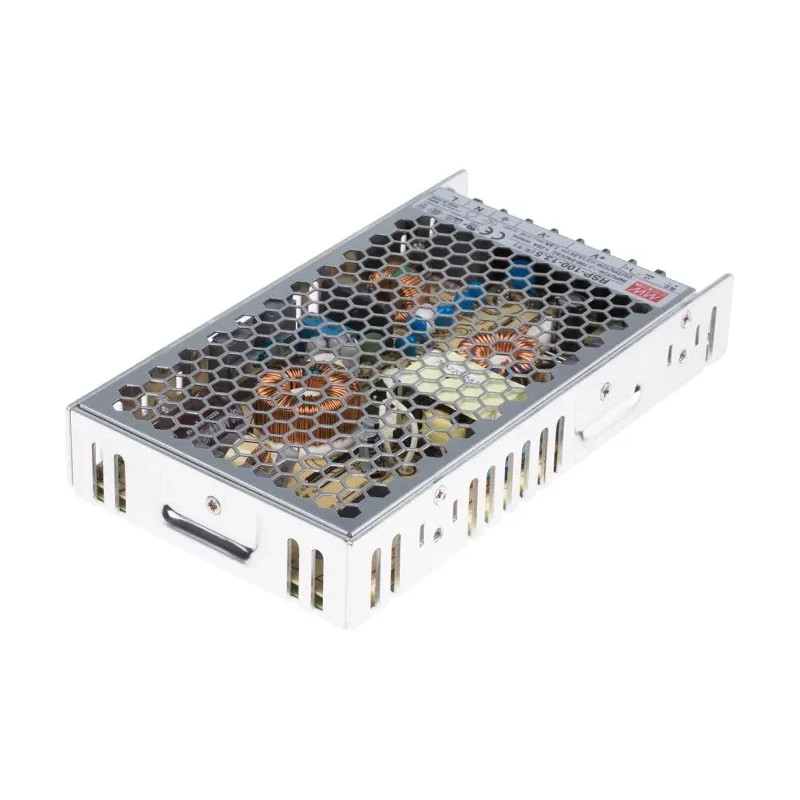

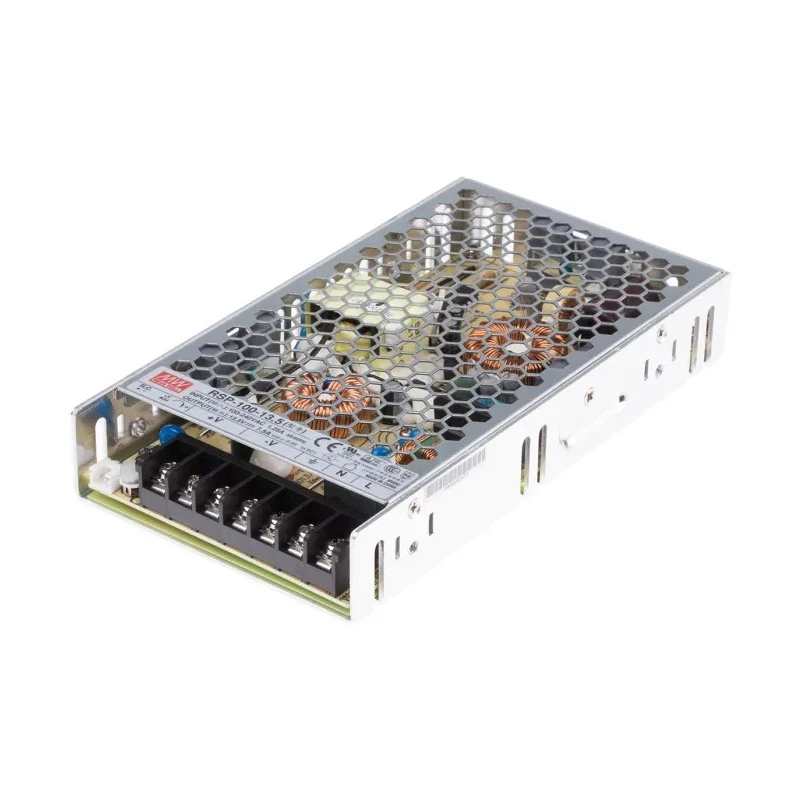

MEAN WELL RSP-100-13.5 Switching Power Supply 13.5V DC 101W 7.5A Chassis Mount RSP-100-13.5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL RSP-100-13.5 Switching Power Supply 13.5V DC 101W 7.5A Chassis Mount RSP-100-13.5

Name: MEAN WELL RSP-100-13.5 Switching Power Supply 13.5V DC 101W 7.5A Chassis Mount RSP-100-13.5
Brand: MEAN WELL
SKU: 133168
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	101W
Efficiency	86.5%
Length	179mm
Model	RSP-100-13.5
Depth	30mm
Gross Weight	520g
Width	30mm
Mount Type	Chassis
Series	RSP-100
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protection	Short circuit / Overload / Over voltage
Maximum Output Voltage	13.5V dc
SMPS Output Current	7.5A
Minimum Input Voltage	85V ac

Key Features

Universal AC input voltage range from 85V to 264V.
High efficiency up to 88%, reducing energy loss.
Fan-less design using free air convection cooling for silent operation.
Wide operating temperature from -30°C to +70°C enabling harsh environment use.
Comprehensive protection against short circuit, overload, over voltage and over temperature.
Remote ON/OFF control with LED power indicator for easy operation.
Compact size with 30mm height suitable for 1U rack installations.
Compliance with global safety standards including UL, CUL, TUV, CE, CCC and CB certifications.

Product Description

MEAN WELL RSP-100-13.5 is a high-performance switching power supply designed to provide a stable 13.5V DC output with a power rating of 101W and output current of 7.5A. It features a compact chassis mount form factor measuring 179mm in length, 30mm in width and depth, making it ideal for industrial automation systems, mechanical and electrical equipment, household appliances, and instrumentation where low-profile 1U mounting is required.

This power supply supports a universal input voltage range of 85 to 264V AC with a maximum input voltage of 370V DC. Its fan-less design relies on free air convection cooling, enabling silent operation within a temperature range from -30°C to +70°C, with specified derating at higher temperatures. The unit incorporates active Power Factor Correction (PFC) to improve input power quality and efficiency up to 88%.

Advanced protection features include short circuit, overload, over voltage and over temperature safeguards to ensure reliable and safe operation under varying load conditions. Remote ON/OFF control functionality and a power-on LED indicator provide convenient user interface and status monitoring.

The RSP-100-13.5 complies with multiple international safety and quality standards such as UL 62368-1, TUV EN 62368-1, CCC GB4943.1, CSA C22.2 No. 62368-1, CB IEC60950-1, and CE marking, making it suitable for global deployment and industrial applications requiring regulatory approval.

Applications include industrial automation, factory machinery, household appliances, instrumentation, and electrical equipment installations demanding reliable low-profile power solutions. This product embodies MEAN WELL's renowned engineering quality and robust design principles.

Universal AC input voltage from 85V to 264V. High efficiency up to 88% for energy savings. Fan-less cooling ensures silent operation. Wide operating temperature range -30°C to +70°C. Comprehensive protection against faults.

Remote ON/OFF control and LED power indicator. Compact 1U low-profile chassis design. Global certifications including UL, CUL, TUV, CCC, CB, and CE marks. Explore MEAN WELL Switching Power Supplies at EnvMart for reliable and efficient power solutions tailored to your industrial and commercial needs.
