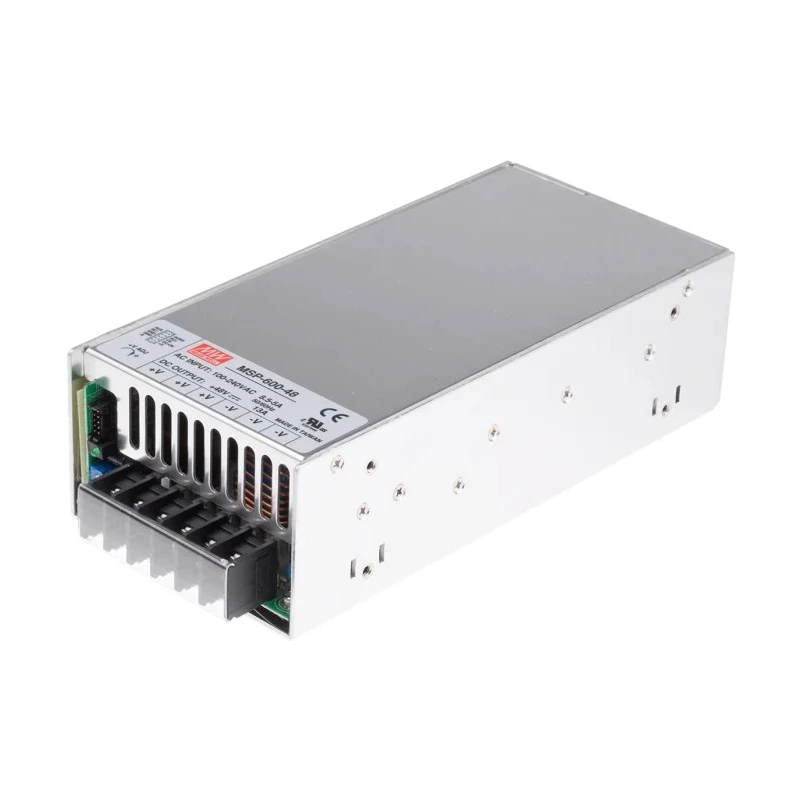

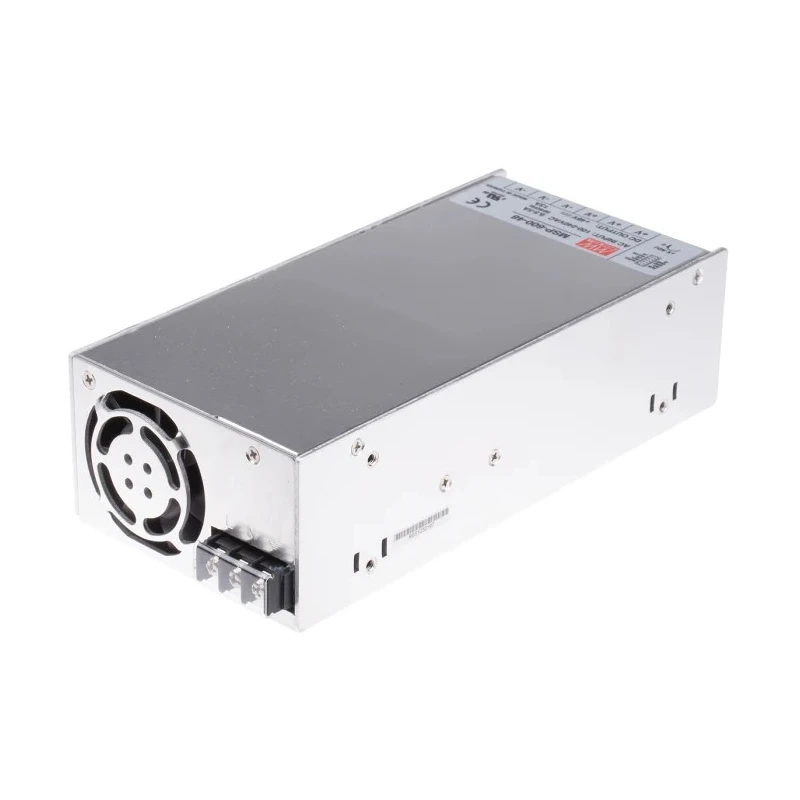

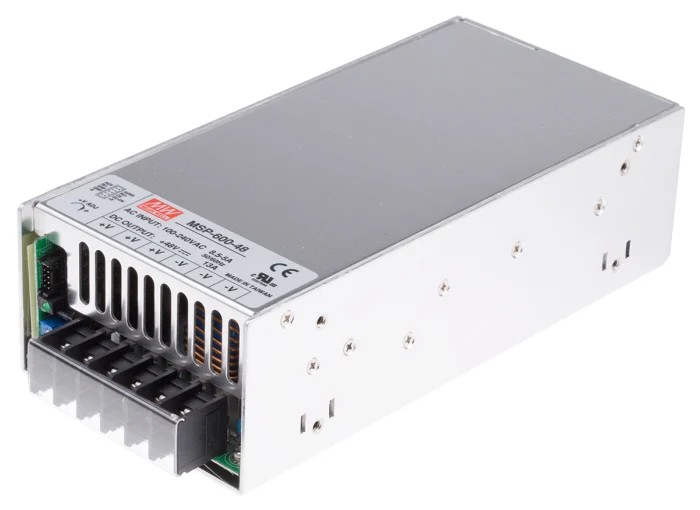

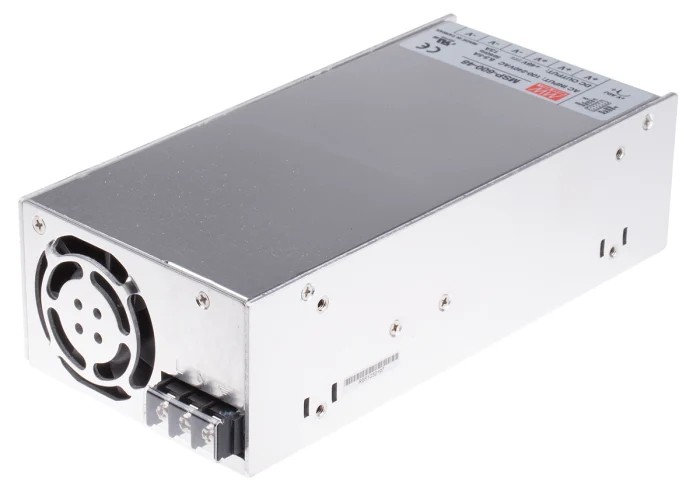

MEAN WELL MSP-600-48 624W 48V DC Medical Grade Switching Power Supply, Rack Mount, 85-264V AC Input MSP-600-48

MEAN WELL MSP-600-48 is a 624W enclosed switch mode medical grade power supply delivering a stable 48V DC output. It accepts a universal AC input ranging from 85 to 264 volts, allowing operation in diverse power environments. This rack mount switching power supply incorporates a high efficiency rating of up to 89.5%, minimizing energy waste.

Equipped with built-in active Power Factor Correction (PFC) achieving PF>0.94, the unit reduces reactive power for improved electrical performance. It is medically approved to IEC60601-1, ensuring compliance with stringent medical safety standards, featuring low leakage current measured at just 300μA at 264VAC.

The design includes a forced air cooling system with a long life DC fan, supporting reliable operation over a temperature range of -40°C to 70°C. This broad thermal tolerance allows deployment in industrial, medical, and laboratory environments where temperature conditions vary.

This power supply meets international certifications such as UL 62368-1, CSA C22.2 No. 62368-1, CCC GB4943.1, BSMI CNS143361, AS/NZS 62368.1, EAC TP TC 00, IS 13252(Part1)/IEC 60950-1, and TÜV BS EN/EN 62368-1, underscoring its safety and quality compliance.

Typical use cases include powering medical equipment, chemical and biological detection systems, analysis instruments, and various applications requiring efficient, reliable low leakage power supplies in controlled environments.

Its compact form factor measuring 218mm in length and 63.5mm in width and depth, along with a rack mount design, enables easy integration into existing equipment racks or enclosures.

Provides single 48V DC output at 13A maximum current. Universal AC input voltage range from 85 to 264V AC. High efficiency up to 89.5% conserves energy and reduces heat. Built-in active Power Factor Correction with PF>0.94 enhances power quality.

Medically certified IEC60601-1 for low leakage current and safety. Long life forced air cooling fan for stable operation. Wide operating temperature range from -40°C to 70°C. Complies with multiple international safety standards.

Compact rack mount enclosure measuring 218x63.5x63.5 mm. Explore the complete MEAN WELL MSP series and other Switching Power Supplies on EnvMart for varied industrial and medical power needs.
