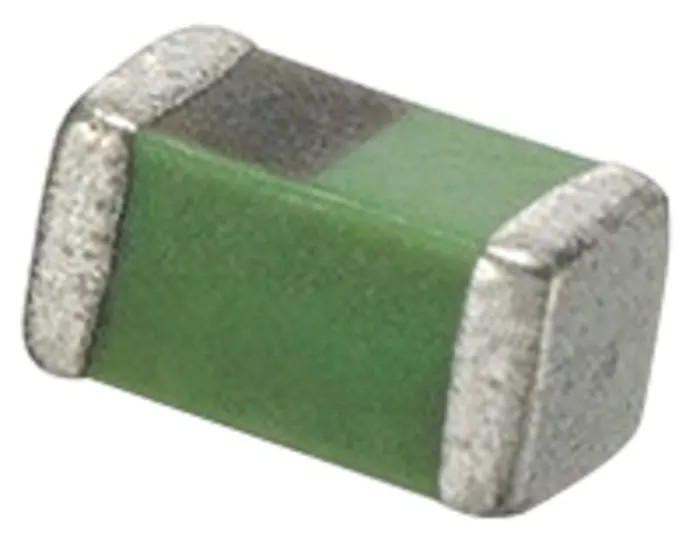

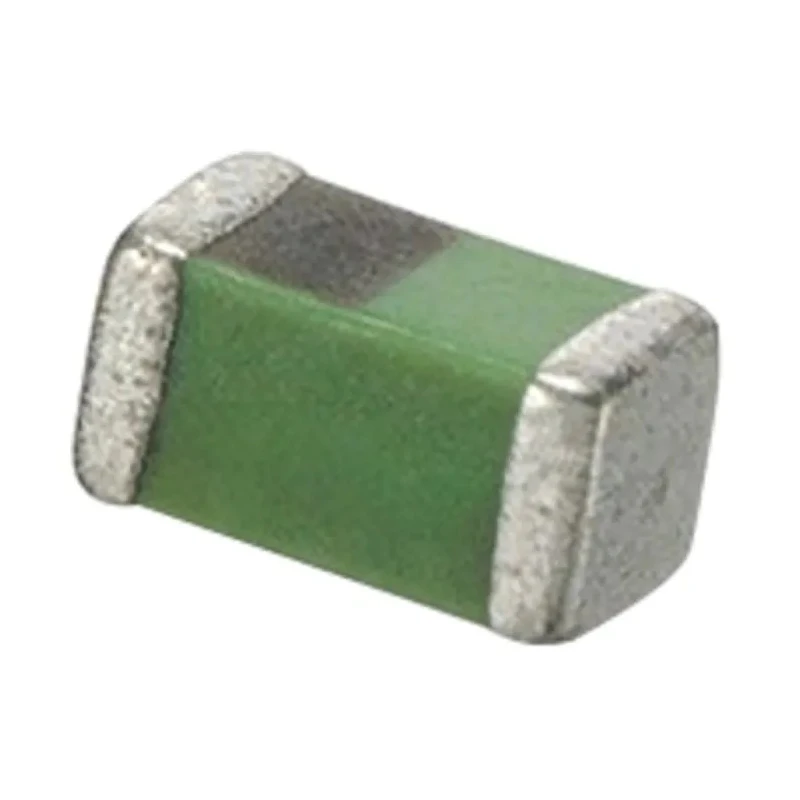

Murata Wirewound Surface Mount Inductor 270 nH ±5% 110 mA Idc 1005 Package Ferrite Core LQG15HSR27J02D

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor 270 nH ±5% 110 mA Idc 1005 Package Ferrite Core LQG15HSR27J02D

Name: Murata Wirewound Surface Mount Inductor 270 nH ±5% 110 mA Idc 1005 Package Ferrite Core LQG15HSR27J02D
Brand: Murata
SKU: 132867
Price: 0.02 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	India
Brand	Murata
Height	0.5mm
Length	1mm
Model	LQG15HSR27J02D
Depth	0.5mm
Packaging	Paper Tape
Series	LQG
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	270nH
Standards/Approvals	RoHS
Package/Case	1005
Maximum DC Current	110mA
Maximum DC Resistance	4.94Ω
Inductance Tolerance	±5 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	400MHz
Minimum Quality Factor	8
Inductor Construction	Wirewound

Key Features

Designed with a ferrite core for stable magnetic properties.
Compact 1005 package size measuring 1 mm length and 0.5 mm depth and height.
Supports operating temperature range from -55°C to 125°C for reliability.
Low maximum DC resistance of 4.94 Ω reduces power loss.
Provides high self-resonant frequency at 400 MHz suitable for high-frequency applications.
Wirewound construction ensures a minimum quality factor of 8, balancing performance and size.
Surface mount termination style facilitates automated assembly.
Compliant with RoHS standards ensuring environmental safety.

Product Description

Murata LQG15HSR27J02D is a high-quality wirewound surface mount inductor featuring a ferrite core that delivers 270 nH inductance with ±5% tolerance. It is engineered for excellent performance in high-frequency circuits including WLAN networks, RF circuit matching, mobile communications, and choke applications.

This inductor is housed in a compact 1005 package, measuring 1 mm in length, 0.5 mm in height, and 0.5 mm in depth, allowing use in space-constrained PCB layouts. Its maximum DC current rating of 110 mA and low DC resistance of 4.94 Ω minimizes energy loss during operation, contributing to efficient power management.

Designed to operate reliably within a wide temperature range of -55°C to 125°C, the LQG15HSR27J02D is stable at high frequencies with a self-resonant frequency up to 400 MHz. Its wirewound construction ensures a minimum quality factor (Q) of 8, providing a balance between size, rated current, and inductance tolerance.

The surface mount termination style supports automated manufacturing processes and the product complies fully with RoHS environmental directives. Packaging on paper tape reels enables efficient handling and integration in mass production environments.

Ferrite core material ensures stable magnetic properties. Compact 1005 package for dense circuit boards. Wide temperature range for versatility in industrial and commercial applications. Low DC resistance for power efficiency.

High self-resonant frequency suited for RF applications. Wirewound construction providing reliability and performance. Surface mount termination enables automated assembly. RoHS compliant ensuring environmental safety. Paper tape packaging suitable for automatic insertion machinery.

This product is ideal for electronic, communication, industrial, and manufacturing sectors needing reliable, compact inductors for power regulation and signal conditioning. Explore more Surface Mount Inductors in the Electronics & Electricals category at EnvMart for solutions tailored to your application needs.
