Cree LED 3.1 V Blue LED 3535 Surface XLamp XP-E XPEBLU-L1-0000-00201

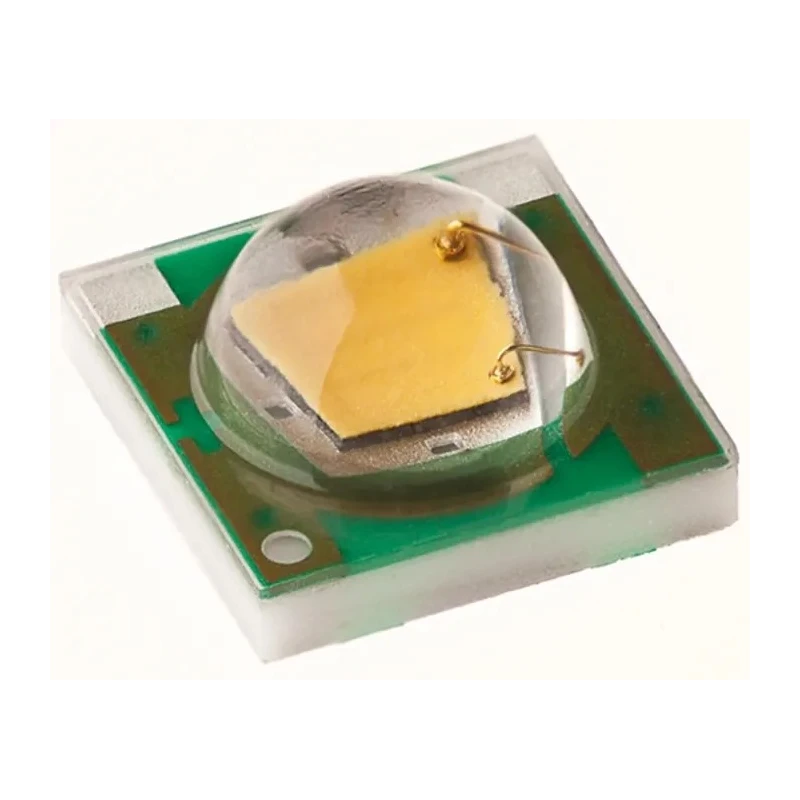

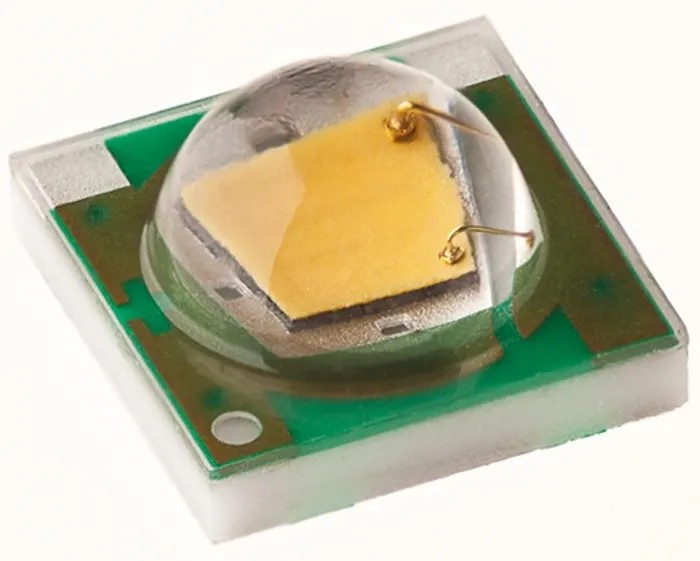

Cree LED XPEBLU-L1-0000-00201 is a high-quality 3.1 V Blue LED from the XLamp XP-E series, packaged in a 3535 surface mount format. It is engineered for superior lighting performance with a maximum forward current of 1000 mA and low thermal resistance of 9°C/W. The LED is equipped with a clear dome lens measuring 3.45 by 3.45 mm providing a wide viewing angle of 130 degrees, which ensures excellent light uniformity and distribution.

This blue LED produces a luminous flux of 39.8 lumens at a dominant wavelength of 485 nm, making it suitable for diverse applications including colour-changing lighting, transportation lighting, commercial illumination, and emergency vehicle lighting. The electrically neutral thermal path and symmetrical package enhance reliability and simplify thermal management in lighting systems.

The XP-E series LEDs are reflow solderable and meet JEDEC J-STD-020C standards, facilitating integration into automated assembly processes. With RoHS compliance, this LED meets environmental and safety standards.

Applications include industrial, commercial, transportation, and emergency lighting systems where high efficiency, reliability, and compact footprint are essential. The surface mount design allows for easy installation and high-density PCB layouts.

The LED operates reliably at a current up to 1 ampere maximum. It offers a dome-shaped clear lens for optimized light output. RoHS compliant ensuring usage in environmentally sensitive applications. Wide viewing angle supports better light dispersion.

Designed for use in colour-changing and vehicle lighting systems. Low thermal resistance enables effective heat dissipation. Complies with JEDEC J-STD-020C for reflow soldering. Country of origin is China. Explore a broad range of Cree LED components and lighting solutions at EnvMart for your industrial, commercial, and transportation lighting needs.
