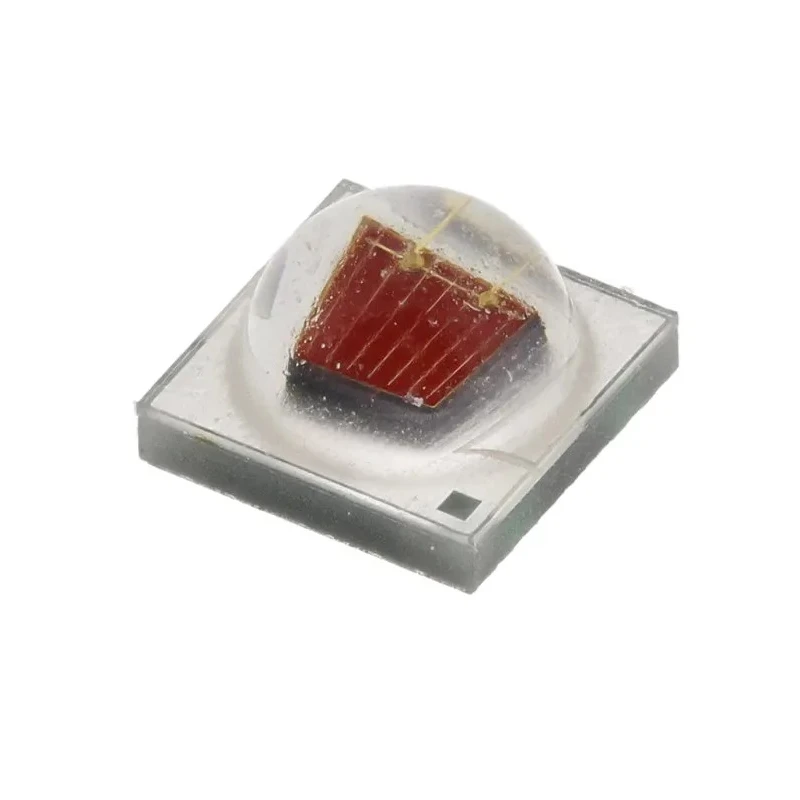

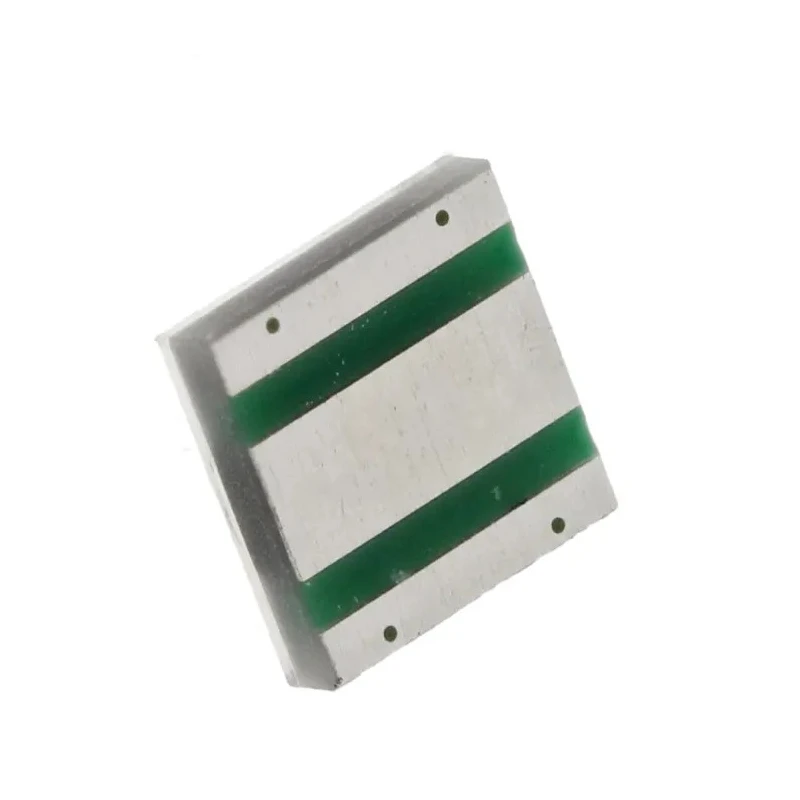

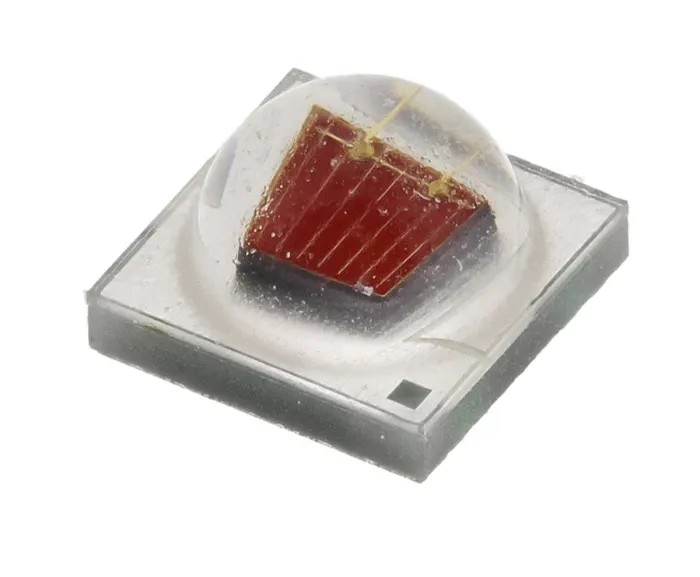

Cree LED 2.6 V Red LED 3535 Surface XLamp XP-E XPEBRD-L1-0000-00801

Cree LED XPEBRD-L1-0000-00801 is a high-performance red LED from the XLamp XP-E series, operating at a forward voltage of 2.6 V and designed for surface mount applications. This LED offers precise optical control with a square clear lens measuring 3.45 x 3.45 mm and achieves a luminous flux output of 73.9 lumens with a dominant wavelength of 630 nm, providing vibrant red light suitable for various electronic and lighting projects.

Incorporating Cree's SC3 technology, this model delivers up to 88% higher maximum light output compared to alternative high-power color LEDs and up to 20% more lumen output than the original XP-E series. The LED supports a maximum forward current of 1000 mA and features a low thermal resistance of 5°C/W, ensuring efficient heat dissipation during operation.

Packaged in tape and reel format and equipped with two pins, this 3535 package type LED is RoHS compliant and manufactured in China. Its wide viewing angle of approximately 130° (ranging from 110° to 135°) allows broad light dispersion, making it suitable for architectural illumination, vehicle lighting, display systems, and LED retrofit lamps both for indoor and outdoor use.

Square clear lens with precise dimensions for controlled light output. High luminous efficacy enabled by Cree’s SC3 technology. Wide applicability in industrial, automotive, architectural, and display lighting. Supplied in tape and reel packaging enabling efficient assembly.

Efficient thermal management supporting sustained operation at 1A drive current. Compliant with environmental standards ensuring safe usage.

This Cree LED model is an excellent choice for LED retrofit lamps, emergency vehicle lights, outdoor and indoor lighting installations where high brightness and reliability are required. Browse further in the LED and electronic components categories for compatible devices and accessories on EnvMart.
