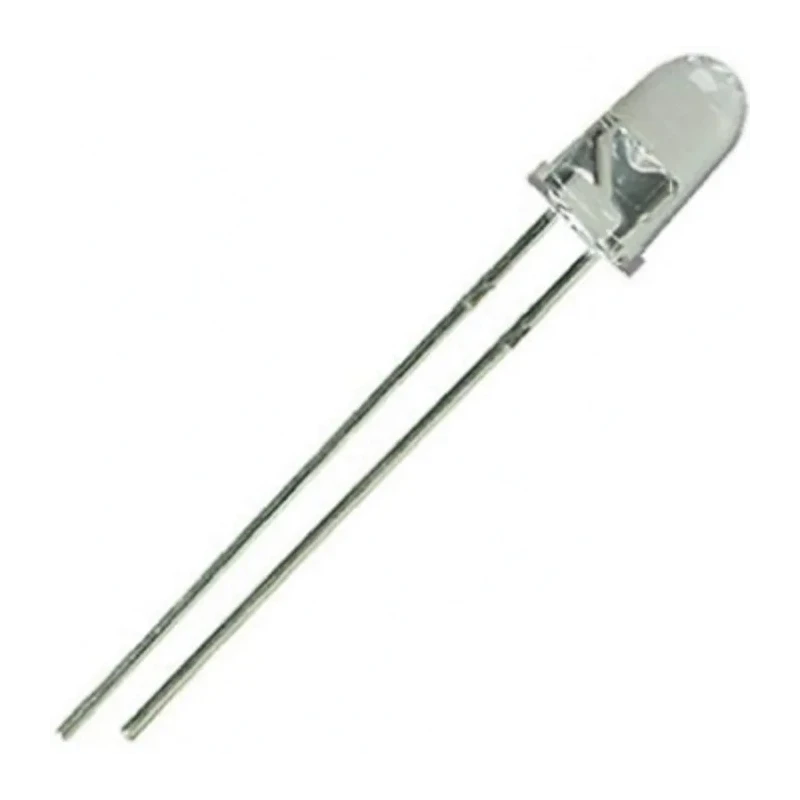

Cree LED 2.6 V Red LED 5 mm (T-1 3/4) Through Hole Cree C503B-RBS-CW0Z0AA1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | C503B-RBS-CW0Z0AA1 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | Cree |
| Maximum forward current | 50mA |
| Viewing angle | 23 ° |
| Package Type | 5 mm (T-1 3/4) |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Forward Voltage | 2.6V |
| Number of Pins | 2 |
| LED Luminosity | 12 cd |
| Maximum Power Dissipation | 130mW |
| Lens Dimensions | 8.6 x 5 mm |
| Lens Shape | Oval |
Key Features
- This LED has a red color emission with a dominant wavelength of 630 nm.
- The package type is a 5 mm (T-1 3/4) oval lens with clear finish for superior optical performance.
- It supports a maximum forward current of 50 mA ensuring reliable operation.
- Designed for through hole mounting with 2 pins for easy integration into electronic circuits.
- The viewing angle is 23 degrees, providing focused light emission.
- Manufactured with an optical-grade epoxy resin, it offers high temperature and moisture resistance.
- Complies with RoHS standards ensuring environmentally responsible production.
- Suitable for applications in electronic signs, motorways, variable message signs, advertising, and amusement equipment.
Product Description
Cree LED C503B-RBS-CW0Z0AA1 is a high-performance 5 mm red LED with a forward voltage of 2.6 V and maximum power dissipation of 130 mW. This through hole LED features a durable oval lens of 8.6 x 5 mm dimensions with a clear finish that offers excellent light clarity and durability.
Its maximum forward current rating is 50 mA, and it is designed with 2 pins for through hole mounting, ensuring ease of assembly in various electronic devices. The LED emits light at a dominant wavelength of 630 nm with a narrow viewing angle of 23 degrees for focused illumination.
The lamp is manufactured using optical-grade epoxy resin, providing resistance to temperature fluctuations and moisture, making it suitable for outdoor signal and signage applications. This LED complies with RoHS regulations, reflecting environmentally safe manufacturing practices.
This product finds use in electronic signs and signals, motorway signs, variable message signs, advertising boards, petrol station signage, and amusement devices, where high lumen output and long-lasting stable performance are critical.
High luminosity red LED with dominant wavelength 630 nm. 5 mm oval lens with clear finish for focused light output. Maximum forward current of 50 mA for reliable operation. Through hole mounting with 2 pins for secure circuit integration.
Compact design with a narrow 23-degree viewing angle. Optical-grade epoxy resin for temperature and moisture resistance. RoHS compliant ensuring environmental safety. Ideal for outdoor and indoor electronic signage applications.
Explore our extensive range of LEDs and electronic components at EnvMart to find the optimal lighting solution for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 50 mA, ensuring reliable operation in various applications.
The LED emits light with a dominant wavelength of 630 nm, which is characteristic of red LEDs.
The forward voltage rating for this model is 2.6 V, which is important for circuit design and compatibility.
The lens dimensions are 8.6 x 5 mm, featuring an oval shape for focused light output.
This LED has a narrow viewing angle of 23 degrees, providing focused illumination for specific applications.
This model supports through hole mounting, designed with 2 pins for easy integration into electronic circuits.
The maximum power dissipation for this LED is 130 mW, which is a critical specification for thermal management in circuits.
Yes, this LED complies with RoHS standards, ensuring environmentally responsible production practices.
The LED is manufactured using optical-grade epoxy resin, providing resistance to temperature and moisture.
This LED is suitable for use in electronic signs, motorway signs, variable message signs, and advertising boards.
The LED has a luminosity of 12 cd, which contributes to its effectiveness in signage and display applications.
This product is packaged in bulk, making it suitable for larger projects and applications.
