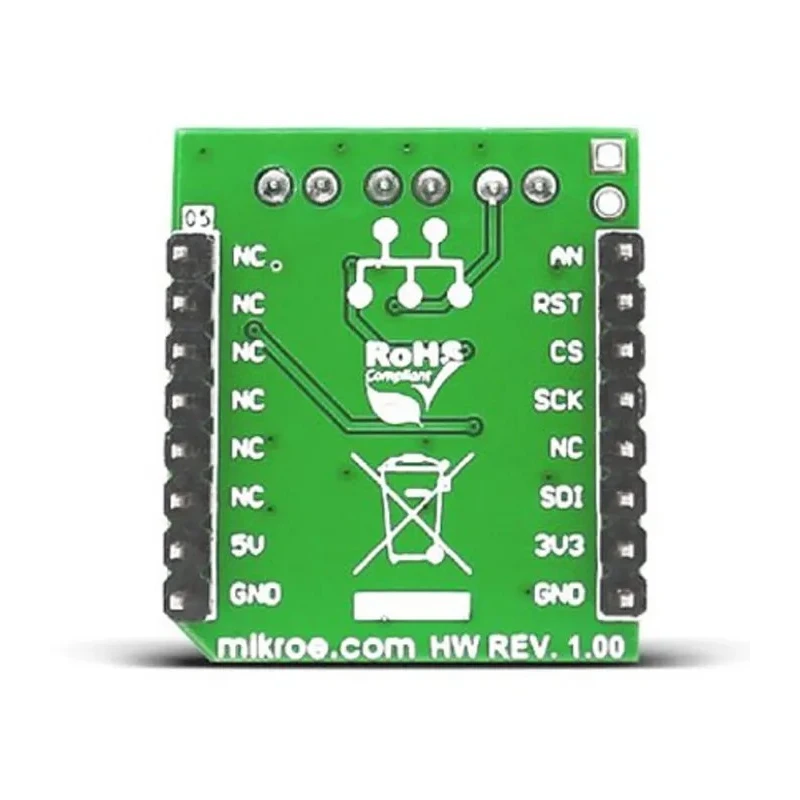

MikroElektronika GainAMP Click Programmable Gain Amplifier MikroBus Click Board for Dynamic Gain Changing MIKROE-2555
Specifications
| Country of Origin | Serbia |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-2555 |
| Interface Type | SPI, Analogue, GPIO |
| For Use With | Dynamic Gain Changing, Automatic Gain Control, Automatic Ranging Circuits, Data Acquisition Systems |
| Kit Classification | MikroBus Click Board |
| Featured Device | LTC6912 |
| Kit Name | GainAMP Click |
| Analogue Function | Programmable Gain Amplifier |
Key Features
- Dual channel low noise digitally programmable gain amplifier for precise signal amplification.
- Operates from either a 3.3V or 5V power supply for versatile integration with development boards.
- Supports inverting gains of 0, 1, 2, 5, 10, 20, 50, and 100 V/V via SPI interface.
- Includes three pairs of screw terminals and a power indication LED for easy connectivity and monitoring.
- Suitable for automatic ranging circuits, data acquisition systems, and dynamic gain control projects.
Product Description
The MikroElektronika MIKROE-2555 GainAMP Click Board is a highly versatile programmable gain amplifier module designed to integrate seamlessly with mikroBUS microcontroller development boards. This click board features a Linear Technology LTC6912-1 dual-channel, low-noise, digitally programmable gain amplifier, making it ideal for applications that require dynamic and adjustable signal amplification.
Both channels of the programmable gain amplifier can be independently configured for inverting gains of 0, 1, 2, 5, 10, 20, 50, and 100 V/V through a standard SPI interface. This allows precision control over signal amplification, which is essential in automatic gain control, automatic ranging circuits, and complex data acquisition systems.

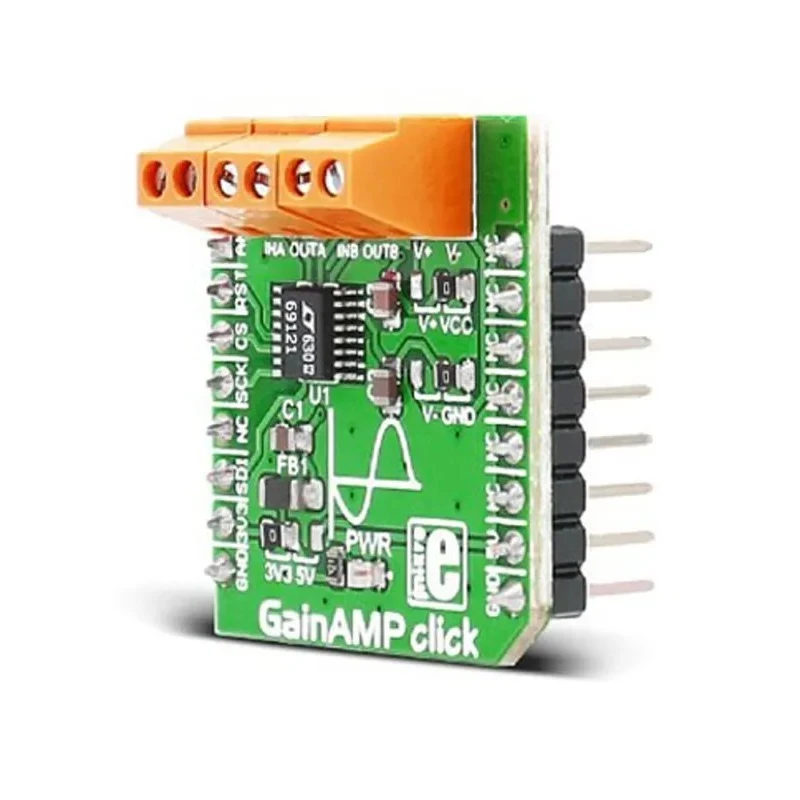

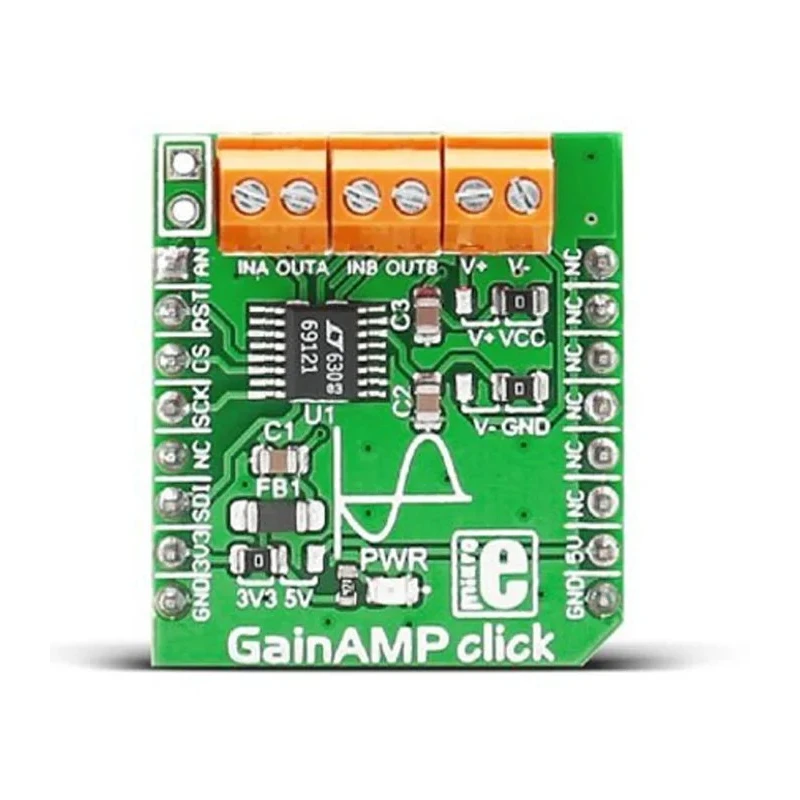

The GainAMP Click Board includes three pairs of screw terminals for reliable connectivity, as well as an onboard power indication LED to facilitate user monitoring during operation. The module is compatible with either 3.3V or 5V power supplies, providing flexible integration with a wide array of systems and microcontroller platforms.
On the hardware level, the featured LTC6912 device delivers low noise performance and digital programmability, ensuring optimal operation in both laboratory and industrial environments. The SPI, analogue, and GPIO interfaces further expand the board's usability for rapid prototyping and accurate control tasks.
Engineered for use in automatic gain control systems, dynamic gain changing projects, automatic ranging circuits, and high-performance data acquisition systems, the GainAMP Click Board from MikroElektronika streamlines signal conditioning with its robust and configurable architecture.
Dual channel digitally Programmable Gain Amplifier supports multiple inverting gain values. Compatible with mikroBUS socket and a variety of microcontroller development platforms. Low noise construction ensures accurate signal amplification.
Easy installation with screw terminals and power indication LED. Suitable for industrial, laboratory, data acquisition, and electronics prototyping applications.
Explore more advanced analogue development tools and programmable amplifier solutions in the EnvMart Semiconductor category or browse MikroElektronika's full range for innovative electronics development products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates from either a 3.3V or 5V power supply, allowing for versatile integration with various development boards.
It features SPI, analogue, and GPIO interfaces, enhancing its usability for various applications.
The amplifier supports inverting gains of 0, 1, 2, 5, 10, 20, 50, and 100 V/V, which can be configured via the SPI interface.
The board features the Linear Technology LTC6912-1 dual-channel low-noise digitally programmable gain amplifier.
It has dual channels, allowing for independent configuration of each channel for signal amplification.
It is suitable for dynamic gain changing, automatic gain control, automatic ranging circuits, and data acquisition systems.
It includes three pairs of screw terminals for reliable connectivity, along with a power indication LED for monitoring.
The GainAMP Click board is manufactured in Serbia.
This product is classified as a MikroBus Click Board, designed for easy integration with mikroBUS sockets.
Its primary function is to serve as a programmable gain amplifier, allowing for precise signal amplification in various applications.
It streamlines signal conditioning with its robust and configurable architecture, making it suitable for high-performance applications.
It is designed for projects involving automatic gain control, dynamic gain changing, and complex data acquisition systems.
