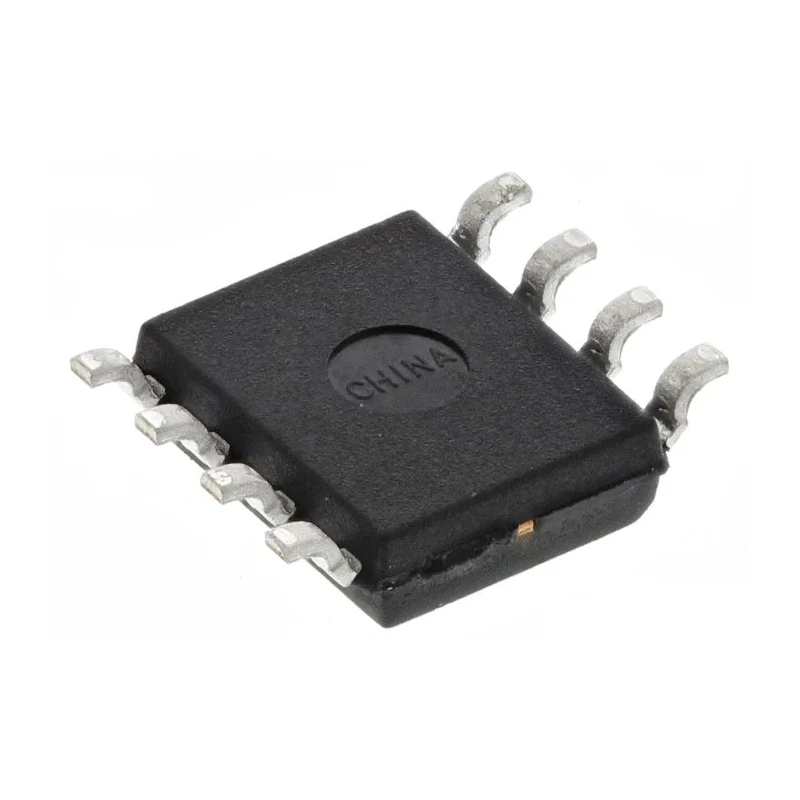

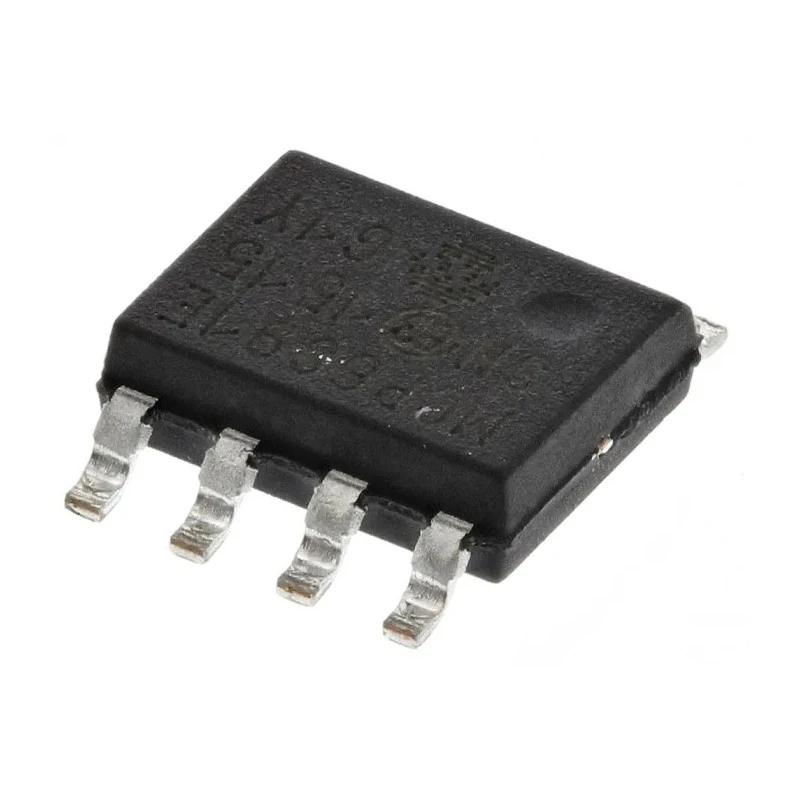

Microchip Programmable Gain Amplifier, 8-Pin SOIC, Supply Voltage 3-5.5V, Input Offset Voltage 4 mV MCP6S91-E/SN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | MCP6S91-E/SN |
| Mount Type | Surface |
| Series | MCP6S91 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 1.6mA |
| Vos - Input Offset Voltage | 4 mV |
Key Features
- Operates with a minimum supply voltage of 3 volts.
- Maximum supply voltage supported is 5.5 volts.
- Input offset voltage is low at 4 millivolts, ensuring accuracy.
- Single channel amplifier suitable for precision amplification.
- Surface mount technology with an 8-pin SOIC package for compact design.
- Wide operating temperature range from -40°C to 125°C.
- Low supply current consumption of 1.6 milliamps.
- Complies with Microchip MCP6S91 series specifications.
Product Description
Microchip MCP6S91-E/SN is a programmable gain amplifier featuring an 8-pin SOIC surface mount package. It operates with a minimum supply voltage of 3 volts and a maximum of 5.5 volts, making it suitable for a variety of low-voltage electronic circuits. The device maintains a low input offset voltage of 4 millivolts which ensures precise signal amplification. Designed for single-channel applications, the MCP6S91-E/SN supports industrial operating temperatures ranging from -40°C to 125°C, enabling reliable performance in harsh environments.
This amplifier achieves efficient power usage with a supply current of only 1.6 milliamps, contributing to energy-saving designs. Its compact physical dimensions, measuring 4.9 mm in length and 1.25 mm in height, allow easy integration into space-constrained printed circuit boards. The 8-pin SOIC package supports surface mount technology, facilitating automated manufacturing processes for high-volume applications.
Microchip’s MCP6S91 series amplifiers are known for their versatility and programmability, capable of gain adjustment through hardware pin selection or software via serial communications. This makes them ideal choices for instrumentation, precision amplification, and signal conditioning in industrial automation, test equipment, embedded systems, and laboratory instrumentation. The product contains no automotive standard certification and does not specify standards or approvals.
Operates from 3 V to 5.5 V supply voltage. Low input offset voltage of 4 mV for accurate amplification. Single channel configuration with 8-pin SOIC package. Surface mount design for automated PCB assembly. Wide operating temperature range from -40°C to 125°C for industrial use.
Supply current of 1.6 mA enabling low power consumption. Compact dimensions: 4.9 mm length and 1.25 mm height. Programmable gain amplifier supporting flexible gain control. Suitable for industrial, laboratory, and embedded electronic applications.
Explore more Programmable Gain Amplifiers and related semiconductor components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 3V to 5.5V.
The input offset voltage is low at 4 millivolts, which helps ensure accurate signal amplification.
It has a length of 4.9 mm and a height of 1.25 mm, making it suitable for compact designs.
The supply current consumption is 1.6 milliamps, contributing to energy-efficient designs.
It operates within a wide temperature range from -40°C to 125°C, suitable for industrial applications.
This amplifier is designed for single-channel applications.
It comes in an 8-pin SOIC package, which is suitable for surface mount technology.
It is ideal for instrumentation, precision amplification, and signal conditioning in various electronic applications.
Yes, it supports flexible gain control through hardware pin selection or software via serial communications.
The MCP6S91-E/SN is part of the MCP6S91 series of amplifiers.
The country of origin for this product is India.
It uses a surface mount design, making it suitable for automated PCB assembly.
