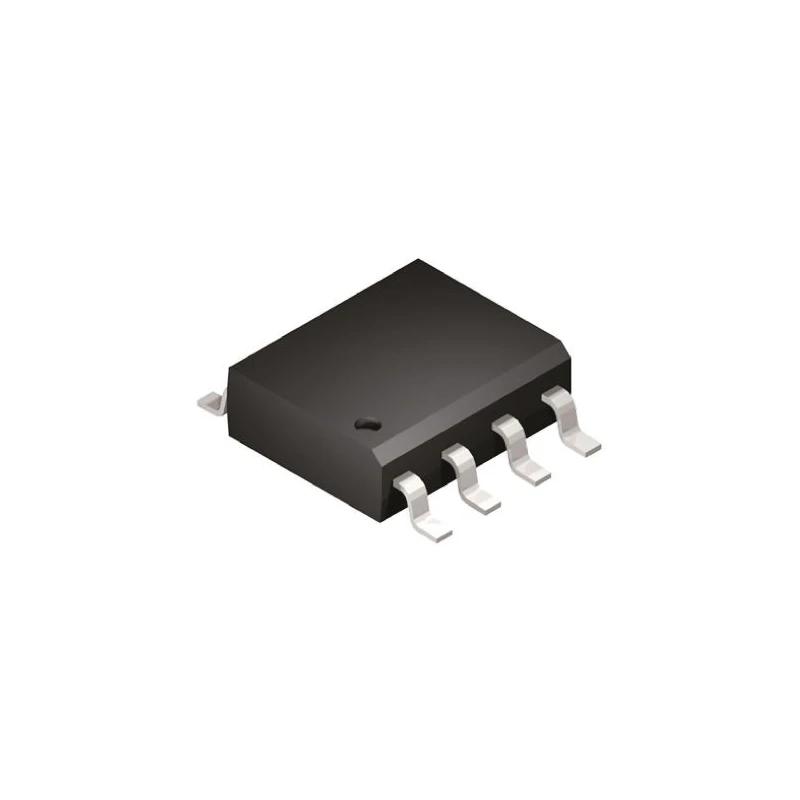

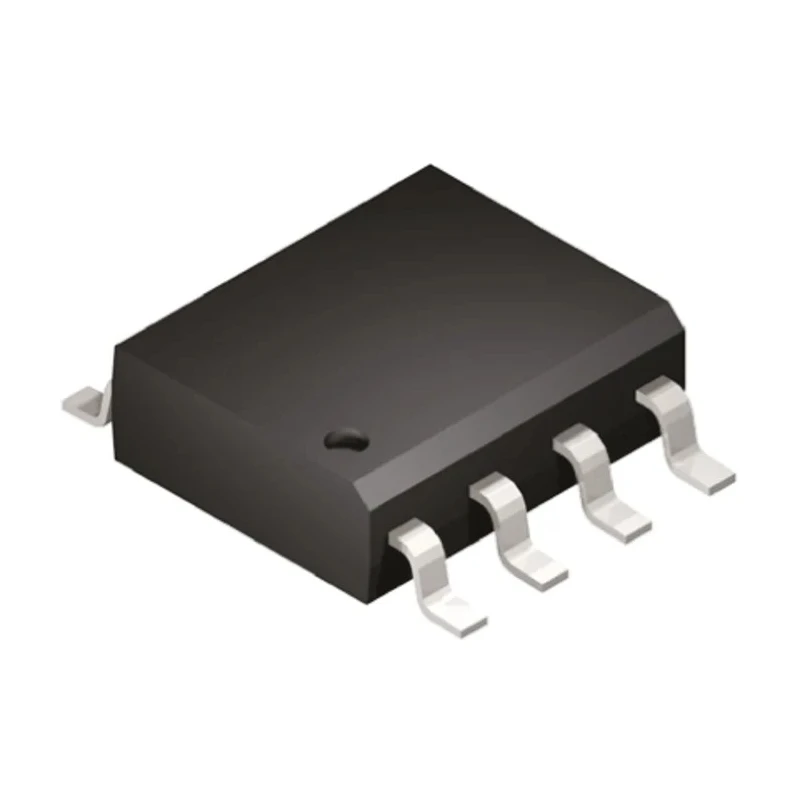

onsemi Logic Level Translator Uni-Directional TTL to PECL, CMOS to PECL, 8-Pin SOIC MC100EPT20DG

onsemi MC100EPT20DG Logic Level Translator is a uni-directional semiconductor device designed for translating logic levels from TTL and CMOS to PECL signals. Housed in an 8-pin SOIC surface mount package, this compact translator IC provides reliable differential output required for robust digital communication systems.

The device features a fast maximum propagation delay of 2ns at a standard load capacitance, ensuring minimal signal latency in circuit operations. Its two elements per chip allow these translators to be used in pairs for multi-channel signal translation in complex electronics assemblies.

With an operating voltage range between 3V to 3.6V, this logic translator is suitable for low voltage environments commonly found in industrial, communication, and semiconductor applications. It supports maximum low-level and high-level output currents of 50mA and 100mA respectively, enabling it to drive various electronic components directly without additional amplification.

The MC100EPT20DG operates across a broad industrial temperature range from -40°C to 85°C, making it reliable in harsh working conditions. Its differential output type provides enhanced signal integrity, reducing noise and crosstalk, which is critical in high-speed digital designs.

This component does not adhere to automotive standards, focusing primarily on standard industrial and laboratory use cases where efficient and accurate logic level translation is critical.

Uni-directional logic level translation from TTL and CMOS to PECL. Compact 8-pin SOIC mounting suitable for automated PCB assembly. High speed with 2ns maximum propagation delay. Operates at low voltages between 3V and 3.6V.

Supports industrial temperature ranges for versatile deployment. Differential outputs provide improved signal quality. Maximum output currents of 50mA (low level) and 100mA (high level). Two elements per chip allow dual translator functions.

Compact form factor measuring 5mm by 1.5mm fitting dense circuit boards. Designed for industrial electronic and semiconductor system applications. Explore a wide range of Logic ICs and semiconductor products at EnvMart to meet your technical and production needs.
