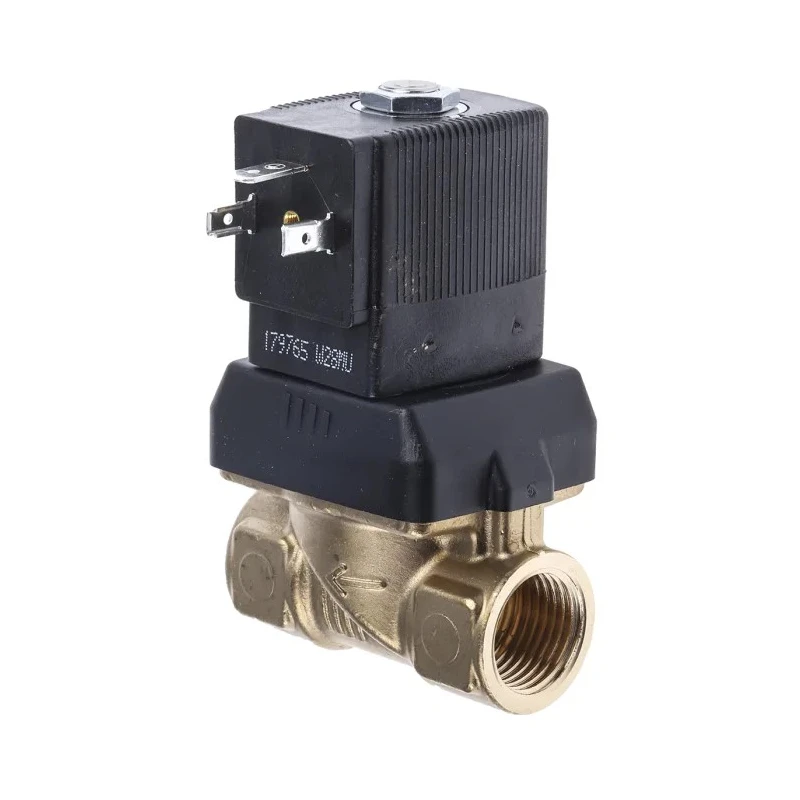

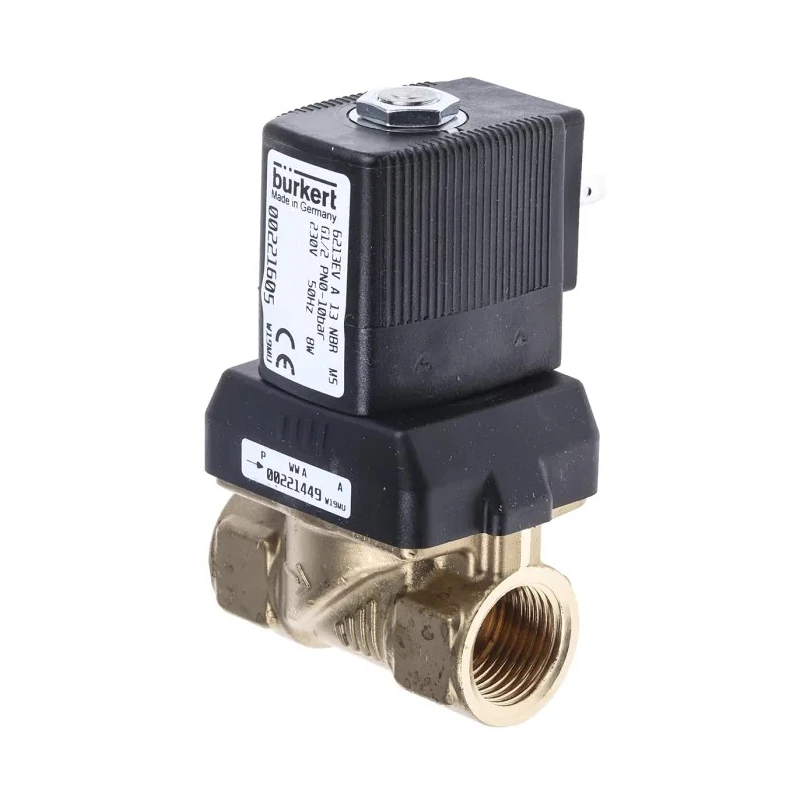

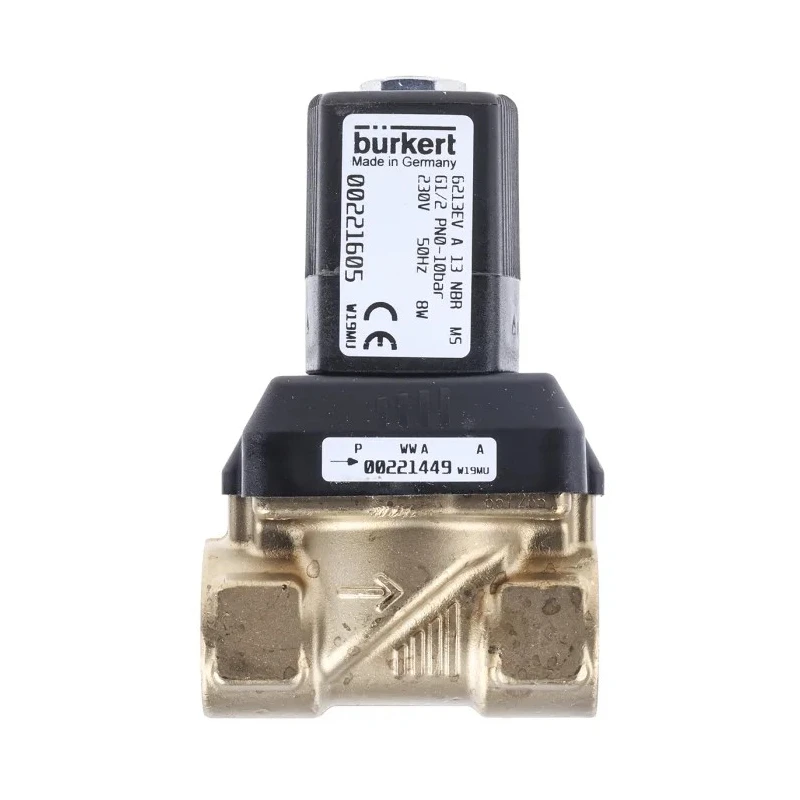

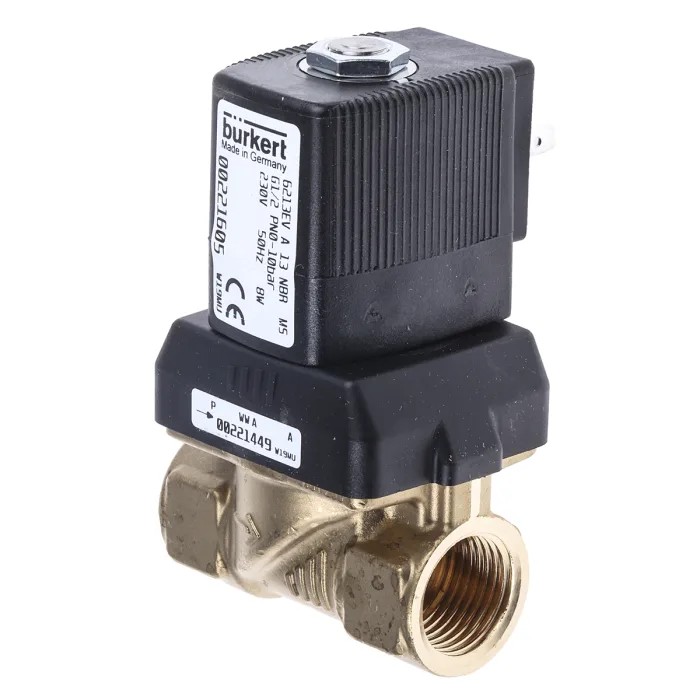

Burkert Brass 2-Port Normally Closed Solenoid Valve, DN 10 to 65 mm, 230V AC, 10 bar, 10W Power 221605
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 221605 |
| Series | 6213EV |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 13mm |
| Supply Voltage | 230V ac |
| Hazardous Area Certification | explosion protection Ex-i (intrinsically safe), hazardous areas |
| Inlet Port Size | DN 10 to 65 mm |
| Default Valve Position | NC |
| Flow Factor Kv | 3.6m³/h |
| RS PRO Solenoid Valve, 2 Port, NC 1/2 in, 220V ac, 1/2 inRS Stock No. | 235-1116Brand: RS PRO |
| Burkert Solenoid Valve 125660, 2 port(s) , NC, 230 V ac, 1/2inBrand | Burkert |
Key Features
- High flow factor Kv of 3.6 cubic meters per hour ensures efficient fluid handling.
- Compact brass body suitable for installation in limited spaces.
- Operates reliably between -10°C and 80°C operating temperature range.
- Equipped with servo assist and epoxy encapsulated coil for smooth and quiet operation.
- Includes 13 mm orifice diameter optimized for water hammer free flow performance.
- Features BSP parallel ports compatible with compression fittings.
- Three-pin DIN connector allows 360° positioning in 90° increments.
- Suitable for use in compressed air, vacuum systems, heating, refrigeration, water treatment, and swimming pool technology.
Product Description
Burkert 221605 solenoid valve, a brass 2-port normally closed valve, operates at 230V AC with a maximum operating pressure of 10 bar. This valve features a sophisticated coupled spring diaphragm system and soft mechanical coupling between the main piston and pilot armature, enabling smooth, quiet, and precise operation. Its compact design with BSP parallel ports supports easy installation in confined spaces.
The valve supports a flow factor Kv of 3.6 m³/h through a 13 mm orifice, optimized with flow-enhanced housing and diaphragm geometry, ensuring water hammer free operation. It withstands operating temperatures from -10°C to 80°C and includes a servo-assist mechanism and epoxy-encapsulated coil providing reliable performance and durability.
Equipped with a 3-pin DIN connector capable of 360-degree positioning in 90-degree steps, this valve meets the requirements for use with water and inert liquids and gases. Its construction from high-quality brass makes it robust and corrosion-resistant.
The valve is certified with explosion protection Ex-i, making it suitable for intrinsically safe operation in hazardous environments. Typical industrial applications include compressed air and vacuum systems, heating and refrigeration systems, as well as water treatment and swimming pool technologies.
High flow factor Kv 3.6 m³/h through a 13 mm orifice. Brass body material for durability and corrosion resistance. Maximum operating pressure of 10 bar suited for various industrial needs. Operating temperature range from -10°C to 80°C.
Epoxy encapsulated coils for enhanced protection and longevity. Servo assist and soft mechanical coupling for smooth valve action. BSP parallel ports compatible with compression fittings. Three-pin DIN connector with 360° flexible positioning.
Explosion protection rating Ex-i suitable for hazardous zones.
Burkert is an established brand in industrial valves offering quality and reliable components. This solenoid valve 221605 is ideal for industrial, laboratory, HVAC, manufacturing, water treatment, and commercial applications requiring precise fluid control.
Explore more reliable Industrial Valves and fittings from Burkert and enhance your systems with high-performance components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The flow factor (Kv) of this solenoid valve is 3.6 m³/h, which ensures efficient fluid handling.
This solenoid valve has a maximum operating pressure of 10 bar, making it suitable for various industrial applications.
The valve operates reliably within a temperature range of -10°C to 80°C.
The orifice diameter of this model is 13 mm, optimized for water hammer free flow performance.
It features BSP parallel ports that are compatible with compression fittings for easy installation.
This valve operates at a supply voltage of 230V AC.
Yes, it is certified with explosion protection Ex-i, making it suitable for intrinsically safe operation in hazardous environments.
It includes a servo assist mechanism and a soft mechanical coupling between the main piston and pilot armature for smooth and quiet operation.
The default valve position is normally closed (NC).
This solenoid valve is suitable for use in compressed air, vacuum systems, heating, refrigeration, water treatment, and swimming pool technology.
The body of this solenoid valve is made of brass, providing durability and corrosion resistance.
This solenoid valve is manufactured in Germany.
