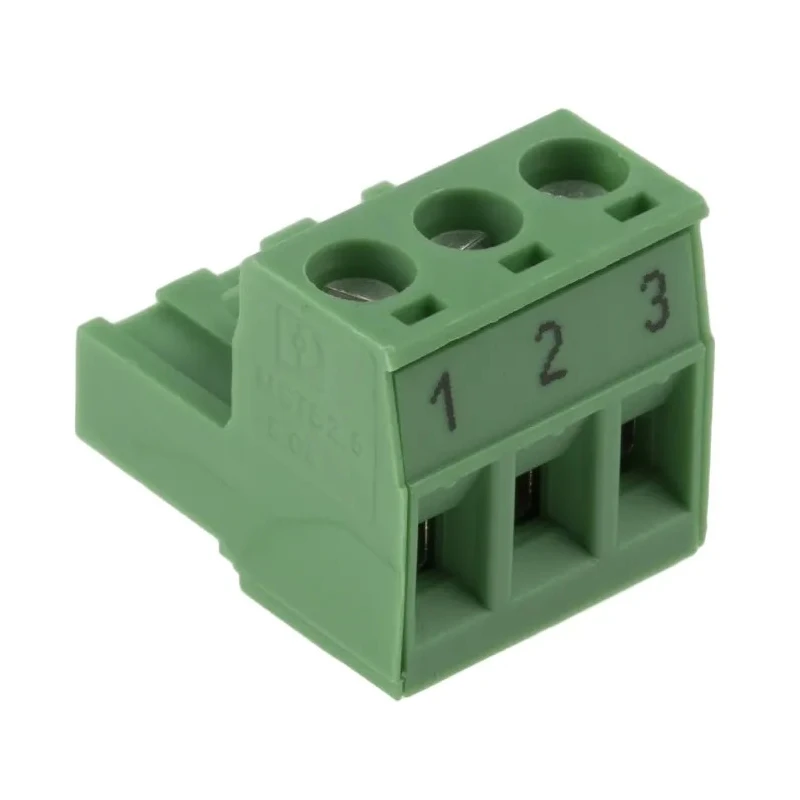

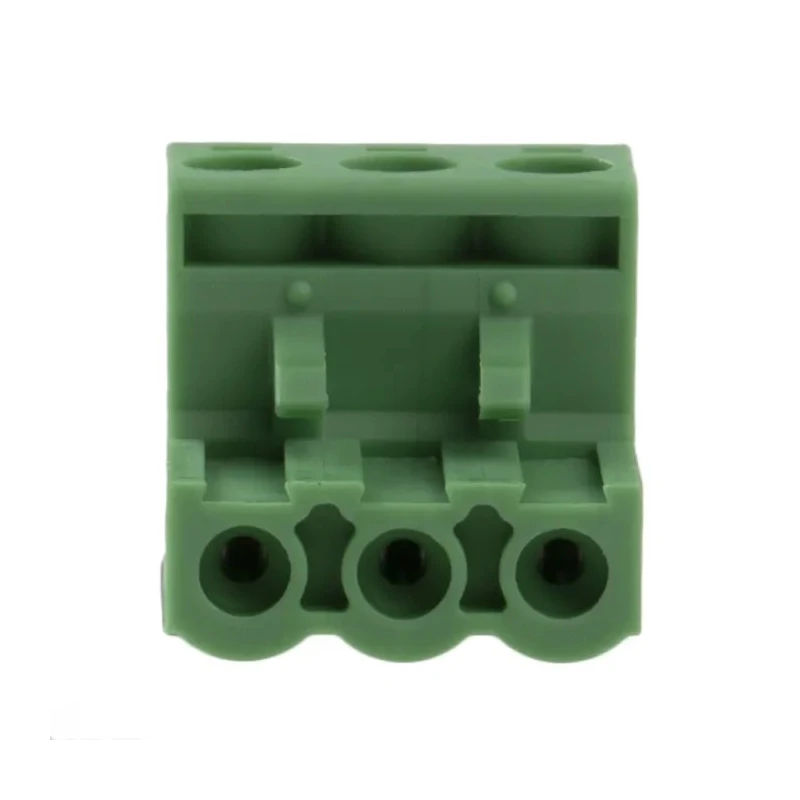

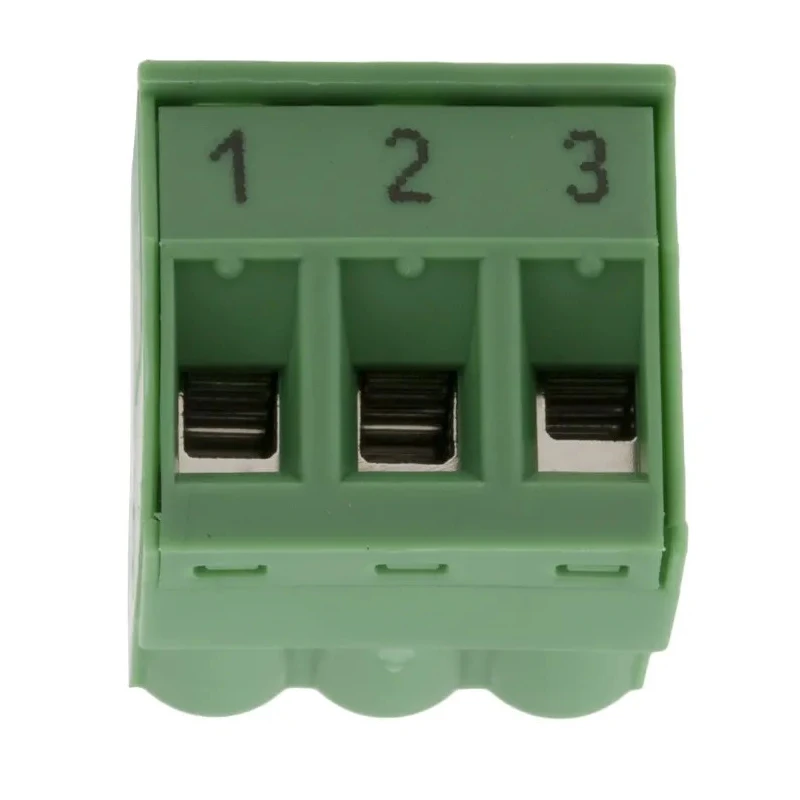

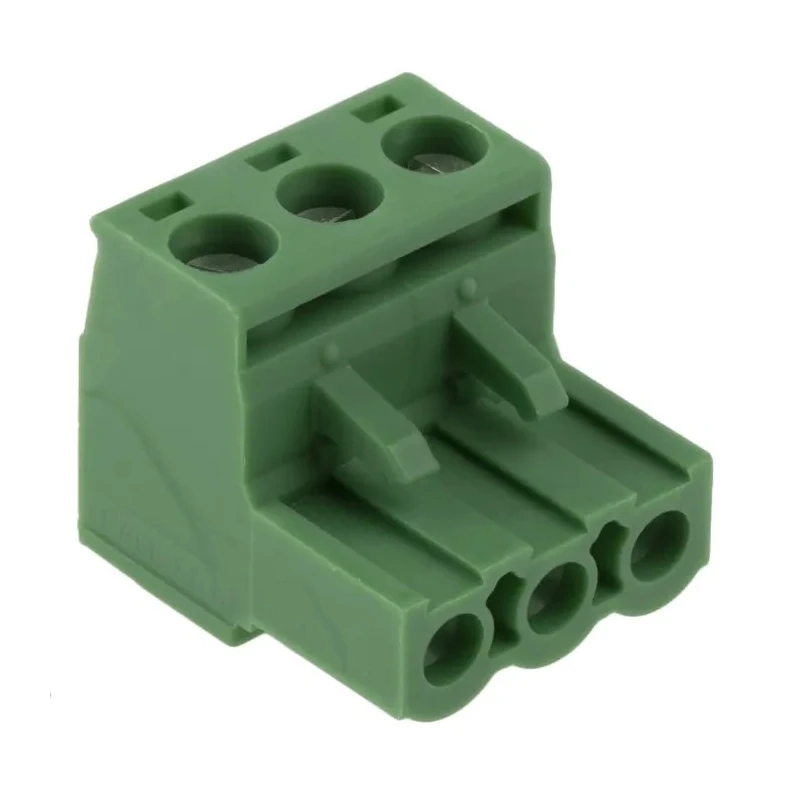

Phoenix Contact 3-Contact Pluggable Terminal Block MSTB 2.5/3-ST-5.08 BD, 5.08 mm Pitch, 12A, Female, Polyamide 1762208
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 18.3mm |
| Model | 1762208 |
| Depth | 15mm |
| Width | 10.16mm |
| Housing Material | Polyamide |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Spring Cage |
| SeriesMSTB 2.5/3-ST-5.08 BD | 1-3 |
| Phoenix Contact MSTB 2.5/3-ST-5.08 BD | 1-3 Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 1762208 |
Key Features
- Designed for PCB mounting with 3 contact points.
- 5.08 mm pitch spacing for standardized terminal connections.
- Spring cage wire connection method ensures secure and vibration-resistant contact.
- Polyamide housing offers durability and electrical insulation.
- Supports wire sizes from 0.2 mm² to 2.5 mm² and AWG 24 to 12.
- Female connector gender with straight orientation for easy mating.
- Compact dimensions enable space-saving PCB layouts.
- Meets UL 94 V0 flammability rating for enhanced safety.
Product Description
Phoenix Contact 1762208 is a 3-contact pluggable terminal block designed for PCB mounting applications. It features a 5.08 mm pitch and is configured with a single row, making it suitable for compact and efficient wiring setups.
This terminal block supports conductors ranging from 0.2 mm² to 2.5 mm² cross-section and wire gauges AWG 24 to 12. Its spring cage wire connection system delivers secure and reliable connections suitable for various industrial and electronic applications.
The housing is crafted from durable green polyamide material, which provides mechanical strength and resistance to environmental factors. It supports a voltage rating of 320 V and a current rating of 12 A, allowing it to handle substantial electrical loads safely.
The female connector with straight orientation facilitates easy mating with compatible male connectors, enabling quick and efficient wiring during assembly. With compact physical dimensions (width 10.16 mm, length 18.3 mm, depth 15 mm), the terminal block occupies minimal circuit board space, making it ideal for dense PCB layouts.
The component conforms to important safety standards, featuring a UL 94 V0 flammability rating that ensures resistance to fire spread, adding a layer of operational safety in demanding environments.
3-contact configuration for flexible wiring options. 5.08 mm pitch spacing to standardize connectivity. Spring cage connection ensures vibration-resistant contact. Durable polyamide housing provides long lifespan. Supports wire sizes from 0.2 mm² to 2.5 mm².
Voltage rating of 320 V and current rating of 12A. Compact size for PCB mounting applications. Complies with flammability and safety standards.
This terminal block is ideal for industrial electronics, automation systems, PCB assembly, and power distribution applications. It allows engineers to customize wiring configurations efficiently while ensuring electrical safety and durability.
Explore more Phoenix Contact products and similar Pluggable Terminal Blocks in the Electronics & Electricals category at EnvMart for your automation and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a voltage rating of 320 V and a current rating of 12 A, making it suitable for handling substantial electrical loads safely.
It features a pitch size of 5.08 mm, which standardizes connectivity for various applications.
It supports wire sizes ranging from 0.2 mm² to 2.5 mm² and AWG 24 to 12, allowing for versatile wiring options.
The terminal block utilizes a spring cage wire connection method, ensuring secure and vibration-resistant contact.
The dimensions are as follows: width 10.16 mm, length 18.3 mm, and depth 15 mm, making it compact for PCB layouts.
The housing is made from durable green polyamide, providing mechanical strength and electrical insulation.
It has 3 contacts, allowing for flexible wiring configurations.
This model features a straight orientation, which facilitates easy mating with compatible male connectors.
It complies with the UL 94 V0 flammability rating, ensuring resistance to fire spread and enhancing operational safety.
The terminal block is manufactured in Germany.
It is ideal for industrial electronics, automation systems, PCB assembly, and power distribution applications.
This model is part of the MSTB 2.5/3-ST-5.08 BD series of pluggable terminal blocks.
