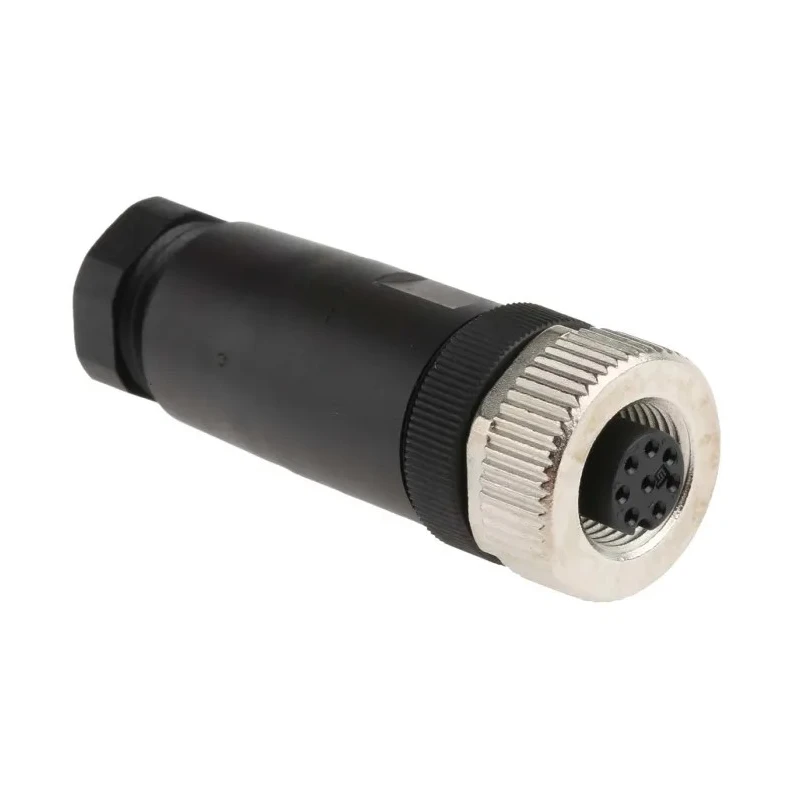

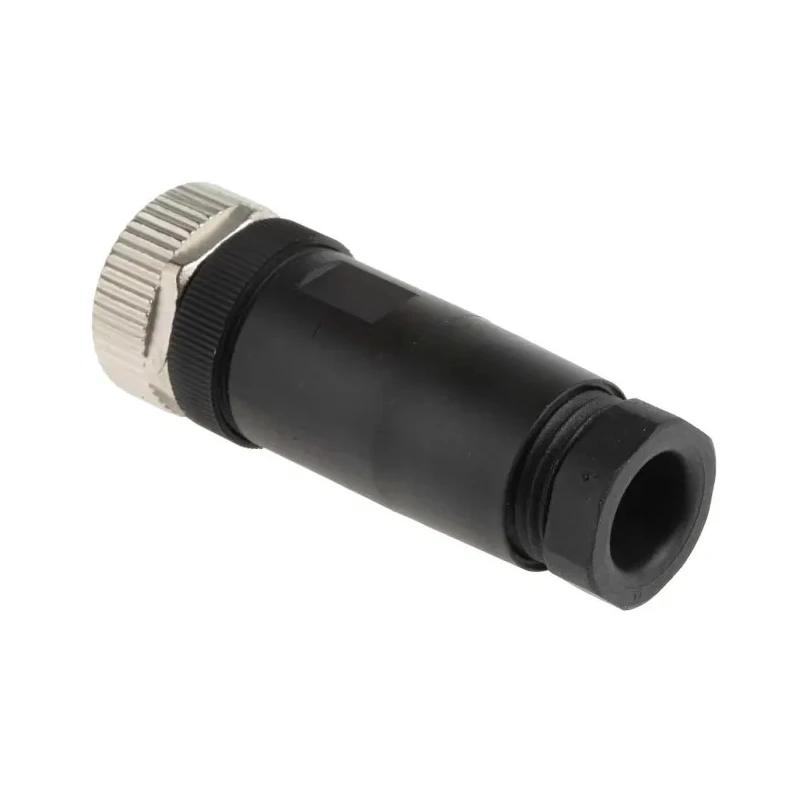

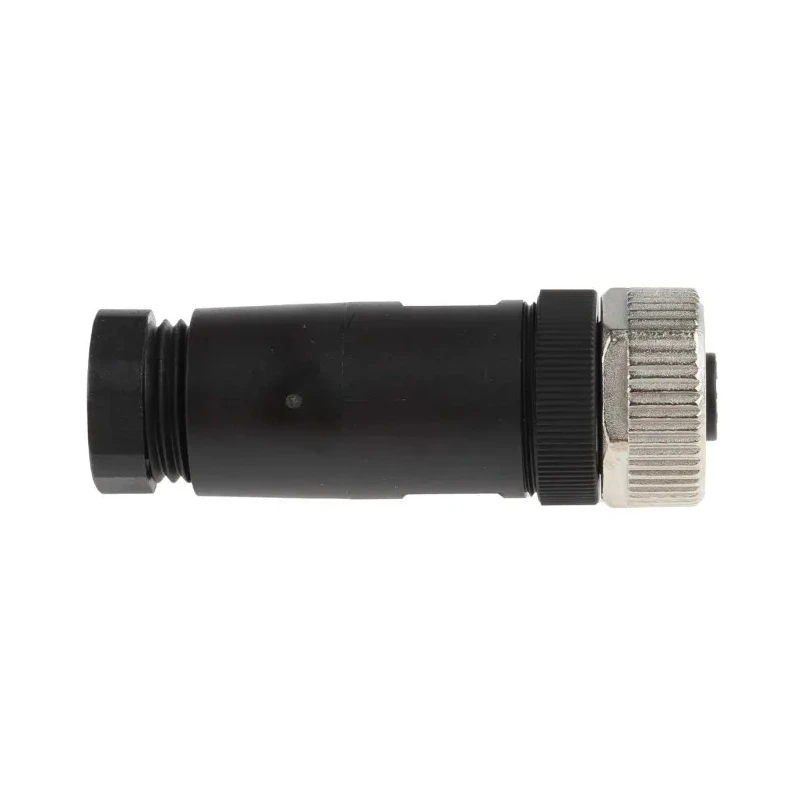

Phoenix Contact Industrial Circular Connector, Cable Mount Socket, Female, 8 Contacts, M12, IP67, SACC Series 1513347

Phoenix Contact 1513347 is an industrial-grade circular connector featuring a cable mount socket design with 8 female contacts. The connector measures M12 in size and provides reliable power and signal connectivity for industrial automation and control systems. Rated at 2A current and 30V voltage, it ensures stable operation under typical industrial conditions.

The connector housing is made from zinc die-cast material with gold plated brass contacts, providing excellent corrosion resistance and electrical conductivity. It utilizes a screw termination type enabling connection flexibility for wire gauges ranging from 26 to 22 AWG with ferrule and 24 to 20 AWG without ferrule. This flexibility aids in on-site assembly and reduces installation time.

Operating temperature ranges from -40°C to +85°C, making it suitable for use in harsh environments where temperature fluctuations and exposure to dust or moisture occur. The IP67 rating guarantees the connector is dust-tight and waterproof when properly mated, ideal for industrial automation and manufacturing applications.

This connector complies with the EU RoHS directive limiting hazardous substances and also meets electrostatic discharge (ESD) standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. These certifications protect connected devices from damage caused by static electricity. The connector’s mating type is A coded with a straight orientation, suitable for secure and easy cable connection.

The Phoenix Contact SACC-M12FS series offers a robust and versatile solution for connecting actuators, sensors, and control cabinets. Its compact design helps in efficient packing of circuit boards without compromising power delivery. The connector is commonly deployed in industrial automation, manufacturing, and process control environments requiring fast, secure, and durable electrical connections.

Rated IP67 for ingress protection against dust and water. Screw connection technology compatible with various conductor types. Zinc die-cast housing with nickel plating and NBR sealing for environment resistance. Conforms to IEC 61076-2-101 standards ensuring connector reliability.

Operating temperature range from -40°C to +85°C suitable for harsh conditions. Overvoltage category 2 for protection against electrical surges. Explore more Industrial Circular Connectors and durable wire connection solutions in the Electronics & Electricals category on EnvMart.
