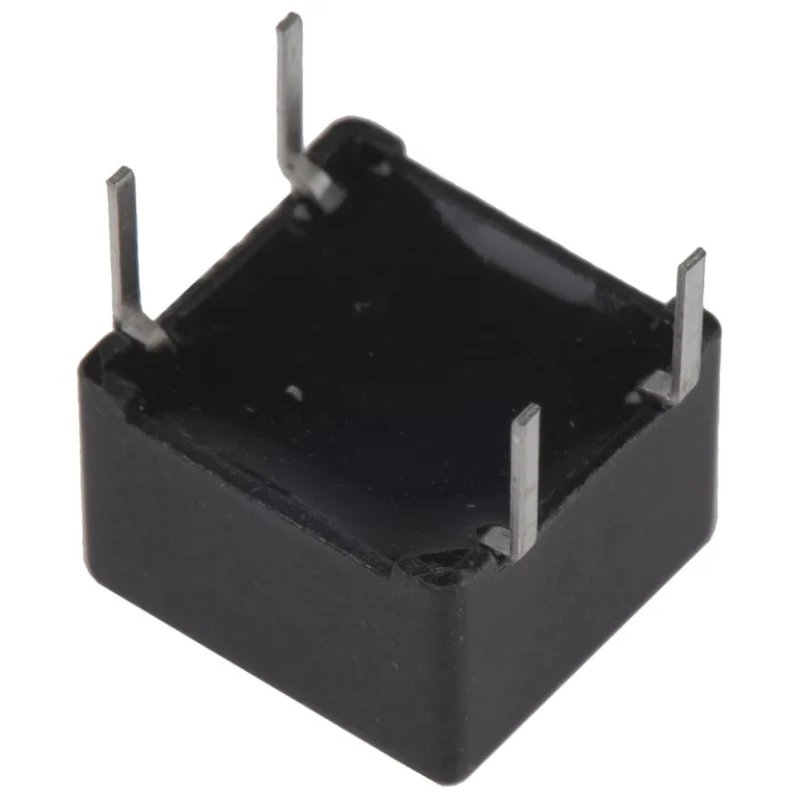

Murata Power Solutions Through Hole Pulse Transformer 2:1 Turns Ratio, 2000 μH Primary Inductance, 0.6Ω Primary 78604/1C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 9.52mm |
| Model | 78604/1C |
| Depth | 6.35mm |
| Gross Weight | 1.1g |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | 786 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Primary Inductance | 2000μH |
| Turns Ratio | 2:1 |
| Primary DC Resistance | 0.6Ω |
| Leakage Inductance | 0.99μH |
| Turns Ratio2 | 1 |
Key Features
- Primary inductance of 2000 μH ensures stable electrical performance.
- Low primary DC resistance of 0.6 Ω minimizes energy loss.
- Constructed for through hole mounting with 6 pins for reliable circuit integration.
- Operates within a temperature range of 0°C to 70°C for diverse industrial environments.
- Leakage inductance rated at 0.99 μH to reduce interference.
- Complies with RoHS standards for environmentally safe use.
- Lightweight at 1.1 grams allowing easy handling and installation.
Product Description
Murata Power Solutions 78604/1C Through Hole Pulse Transformer features a 2:1 turns ratio, 2000 μH primary inductance, and a primary resistance of 0.6 Ω. It is engineered for coupling applications, thyristor and triac firing, and small-sized switch mode power supplies, making it suitable for a wide range of industrial and electronic uses.
This pulse transformer uses a through hole mount with 6 pins ensuring secure placement on printed circuit boards. Its operating temperature range of 0°C to 70°C supports reliable performance in various environmental conditions. The compact size with dimensions approximately 9.52mm in length, 9mm in width, and 6.35mm in depth allows use in space-constrained setups.
The device includes a low leakage inductance of 0.99 μH and a low primary DC resistance of 0.6 Ω that reduce energy losses and enhance signal quality. Its lightweight design at 1.1 grams facilitates installation and integration in commercial and industrial electrical equipment. Additionally, it meets RoHS compliance ensuring environmental and safety standards.
This Pulse Transformer belongs to the 786 series and has an isolation voltage of 1000 Vrms, suitable for isolation and filtering applications. It can also be connected in series to alter turns ratios as required by specific designs. Typical applications include industrial machinery, HVAC control systems, manufacturing electronic devices, and power supplies.
Features a 2:1 turns ratio for efficient signal transformation. Primary inductance of 2000 μH ensures stable electrical performance. Low primary DC resistance of 0.6 Ω minimizes energy loss. Constructed for through hole mounting with 6 pins for reliable circuit integration.
Operates within a temperature range of 0°C to 70°C for diverse industrial environments. Compact dimensions: length 9.52mm, width 9mm, and depth 6.35mm. Leakage inductance rated at 0.99 μH to reduce interference. Complies with RoHS standards for environmentally safe use.
Lightweight at 1.1 grams allowing easy handling and installation. Explore the range of transformers and pulse components from Murata Power Solutions on EnvMart for industrial and electronic design needs.
