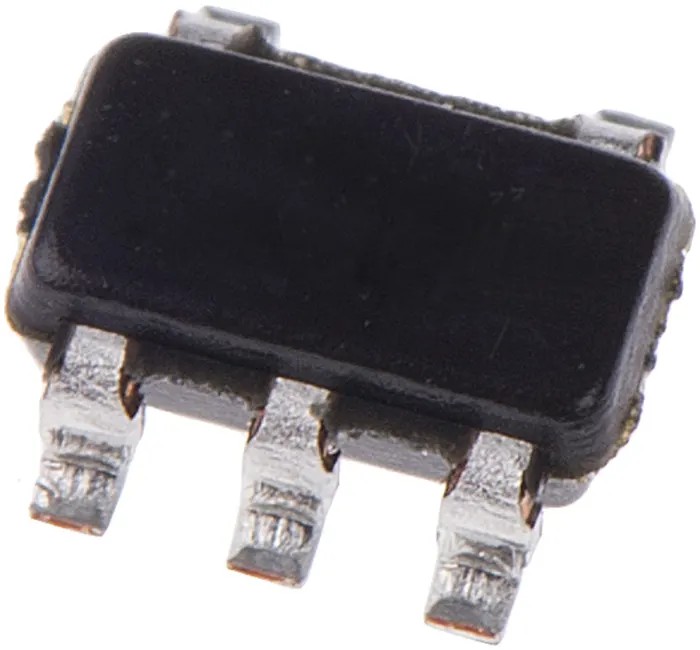

Texas Instruments Buffer & Line Driver IC Non-Inverting Open Drain 1 Channel 5-Pin SOT-23 SN74LVC1G07DBVR

Texas Instruments SN74LVC1G07DBVR is a high-performance buffer and line driver IC with an open drain, non-inverting output. This device features a single channel packaged in a small 5-pin SOT-23 surface-mount package, ideal for space-constrained designs.

Operating voltage ranges from 1.65 to 5.5 V, allowing integration in various low-voltage digital systems. It supports TTL and CMOS logic inputs and delivers an open drain output capable of sinking up to 32 mA with a fast propagation delay time of 4.2 ns at standard capacitive load conditions.

The device boasts low quiescent supply current of 10 µA, making it energy efficient for battery-powered and portable applications. The SN74LVC1G07DBVR adheres to automotive grade AEC-Q100 standards, ensuring high reliability for automotive and industrial environments. Its operating temperature range from -40°C to 125°C further extends its applicability in harsh conditions.

This buffer and line driver IC is part of the 74LVC family, known for excellent latch-up performance exceeding 100 mA and ESD protection surpassing JESD guidelines, securing system robustness.

The compact form factor with dimensions of 3.05 mm by 1.75 mm by 1.45 mm facilitates integration into dense circuit layouts. Single channel buffer and driver with open drain, non-inverting output. Supports broad logic compatibility: TTL and CMOS inputs with LVCMOS outputs.

Wide supply voltage range from 1.65 to 5.5 V accommodates multiple system voltages. Low supply current and fast switching speed optimize power and timing performance. Automotive AEC-Q100 qualified for enhanced reliability in demanding applications.

Wide temperature range operation suitable for industrial and automotive use cases. Compact 5-pin SOT-23 package saves board space without compromising performance. Designed to meet stringent latch-up and ESD protection standards for system security.

This versatile semiconductor component is used extensively in electronic manufacturing, automotive electronics, industrial controls, and signal buffering applications. It is suitable for developers requiring a reliable low-voltage buffer and line driver with open drain output functionality.
