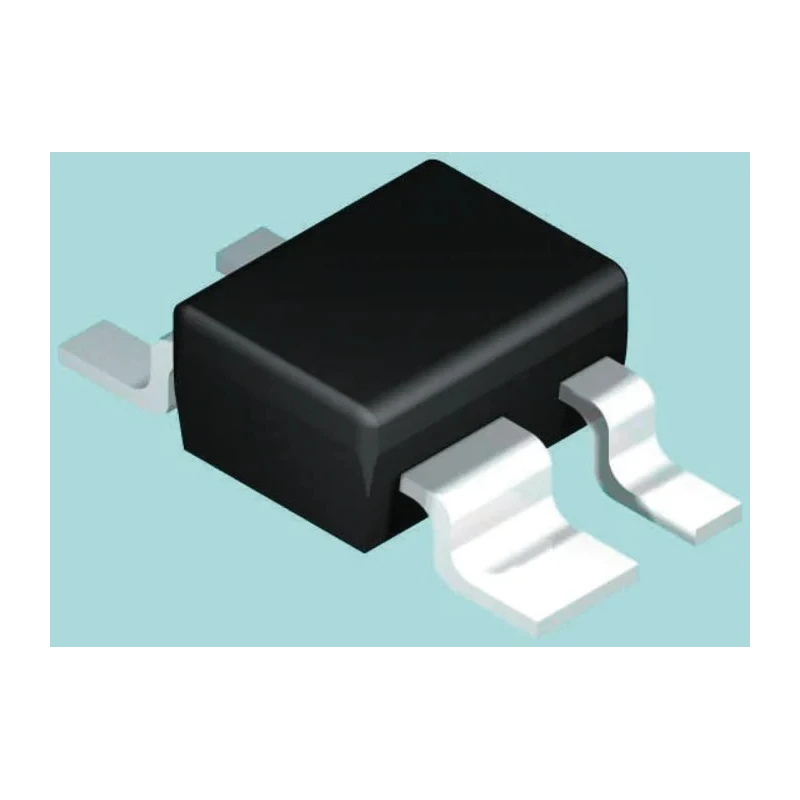

Littelfuse 3-Element Uni-Directional TVS Diode Array 0.22 W, 4-Pin SOT-143 SP0503BAHTG
Specifications
| Country of Origin | China |
|---|---|
| Brand | Littelfuse |
| Height | 1.07mm |
| Length | 3.04mm |
| Model | SP0503BAHTG |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | SP05 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-143 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Number of Elements per Chip | 3 |
| Clamping Voltage VC | 8.5V |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Peak Pulse Power Dissipation Pppm | 0.22W |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- This diode array features a 0.22 W peak pulse power dissipation.
- The device provides uni-directional transient voltage suppression for sensitive electronics.
- It is housed in a 4-pin SOT-143 surface mount package with compact dimensions.
- Operates reliably between -40°C and 85°C suitable for various industrial applications.
- The clamping voltage is rated at 8.5 V with a minimum breakdown voltage of 6 V.
- Designed for protection against electrostatic discharge (ESD) and transients in electronic circuits.
- Has a maximum reverse stand-off voltage of 5.5 V and low leakage current of 100 nA.
- Includes three elements per chip for enhanced device performance in transient suppression.
Product Description
Littelfuse SP0503BAHTG is a 3-element uni-directional TVS diode array designed for protecting sensitive electronic components from transient voltage spikes and electrostatic discharge events. This diode array dissipates peak pulse power of 0.22 W and features a 4-pin SOT-143 surface mount package measuring 3.04 mm in length, 1.4 mm width, and 1.07 mm height, making it suitable for compact circuit designs.
Operating temperature range from -40°C to 85°C ensures reliability in harsh industrial, automotive, and consumer electronic environments. The device has a minimum breakdown voltage of 6 V and a clamping voltage of 8.5 V for effective suppression of harmful voltage transients.
These TVS diode arrays are critical components in ESD protection circuits to safeguard semiconductors and other sensitive electronics against electrical overstresses. The SP05 series with the model SP0503BAHTG is surface-mounted using industry-standard footprints for ease of PCB assembly and integration. It also features a maximum reverse stand-off voltage of 5.5 V and a low maximum reverse leakage current of 100 nA, optimizing power efficiency during normal operation.
The 3-element per chip configuration enhances transient suppression capability providing multi-node protection points on PCB designs. Though this model does not carry automotive certification, it is broadly applicable to industrial, laboratory instrumentation, consumer electronics, and other commercial applications requiring robust transient voltage protective devices.
This diode array supports effective protection from transient voltage and ESD events in delicate circuitry. Compact SOT-143 package allows high-density PCB layouts with reliable surface mount capability. Wide operating temperature range accommodates industrial and commercial electronic environments.
Three element configuration offers versatile circuit protection options on a single chip. Low leakage current minimizes power losses and contributes to energy-efficient system designs. This product can be explored further in the Semiconductor category or by browsing other Littelfuse TVS Diode Arrays on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode array is 0.22 W.
The clamping voltage is rated at 8.5 V.
The minimum breakdown voltage is 6 V.
The maximum reverse stand-off voltage is 5.5 V.
It operates reliably between -40°C and 85°C.
This model features three elements per chip.
The dimensions of the SOT-143 package are 3.04 mm in length, 1.4 mm in width, and 1.07 mm in height.
The maximum reverse leakage current is 100 nA.
It uses surface mounting in a SOT-143 package.
This diode array is suitable for industrial, automotive, and consumer electronic applications requiring transient voltage suppression.
The test current is 10 mA.
It is a uni-directional diode array.
