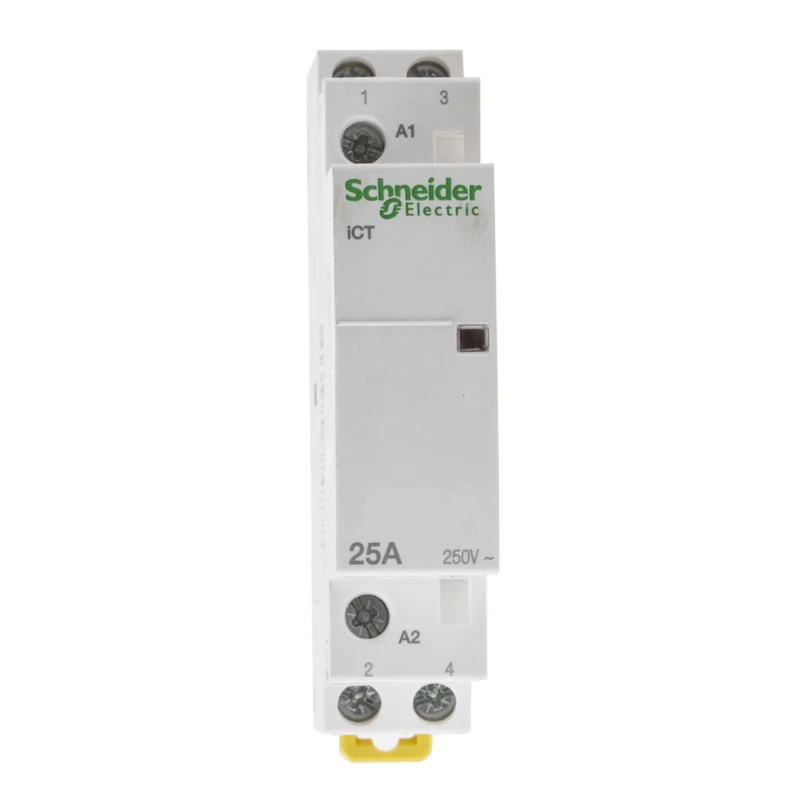

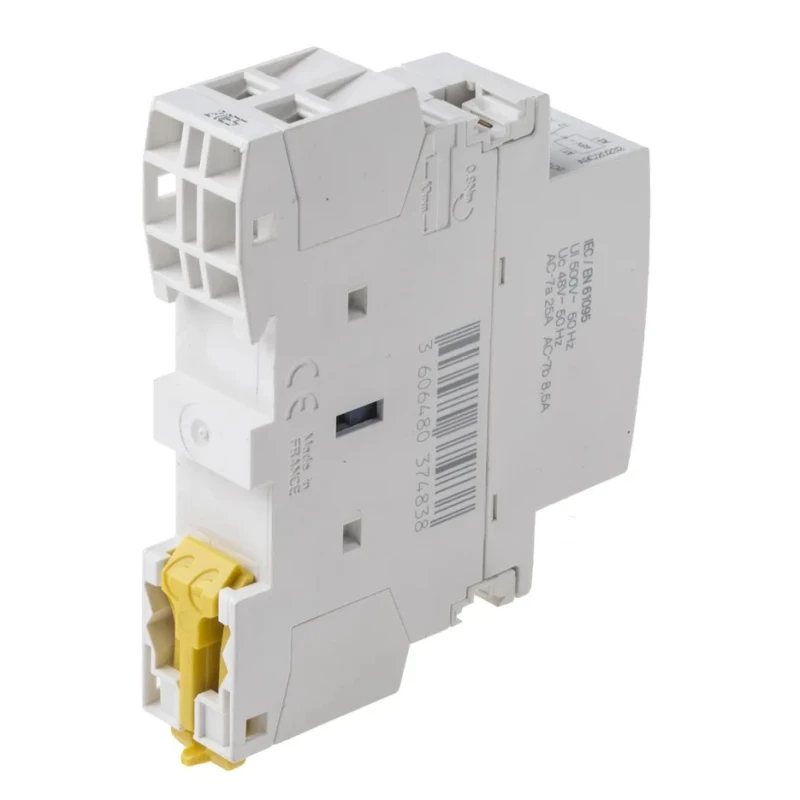

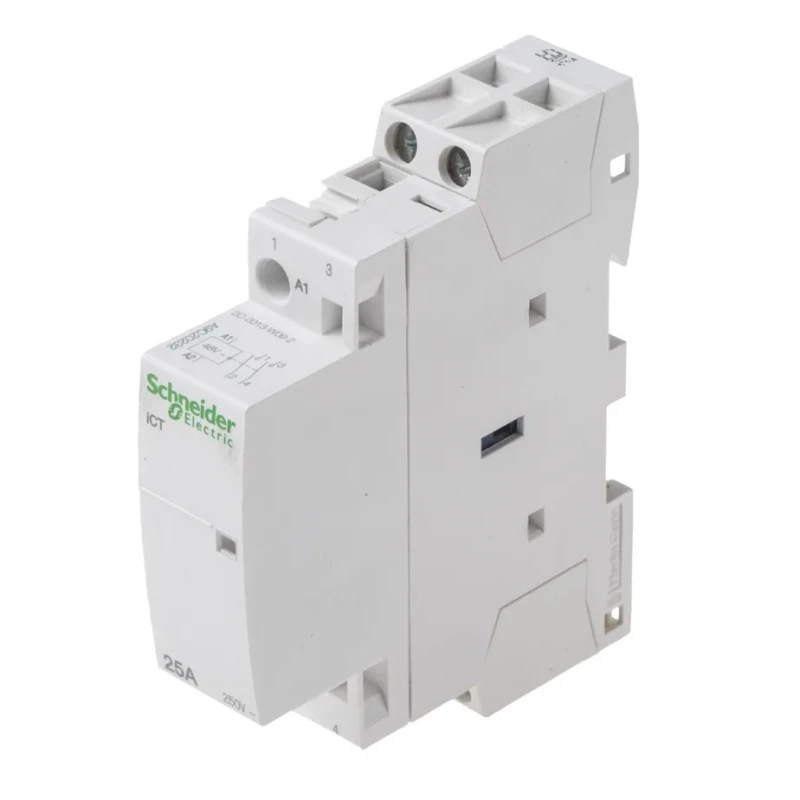

Schneider Electric iCT Contactor, 48V AC Coil, 2-Pole, 25 A, 1.3 W Power Rating, 2 NO Contacts, 250V AC Contact Voltage Acti9

Schneider Electric A9C20232 Acti9 iCT Contactor is engineered for motor control applications, operating with a 48V AC coil and a 2-pole configuration suitable for single and three-phase loads. It offers a 25A contact current rating and supports a contact voltage of up to 250V AC with 2 normally open contacts, delivering reliable switching performance.

This contactor features screw terminals that are IP20 rated, providing finger-safe protection and marked with both North American and international terminal markings for universal application. It is designed for quick DIN rail mounting, allowing seamless integration into control panels and automation systems.

The compact form factor with dimensions 18mm (length) x 81mm (width) x 68mm (depth) makes it an ideal choice for space-conscious industrial environments. Its coil power is rated at 1.3 W, ensuring low energy consumption while maintaining operational efficiency.

Operational temperature capability ranges from -5°C to 60°C, allowing use in diverse environments without compromising performance. Two auxiliary contacts configured as 2 normally open contacts provide enhanced switching capabilities for control circuits.

Certified to meet RoHS and IEC/EN 61095 standards, this contactor offers continuous safety with Class-2 insulation for operator protection. The device is part of the Acti9 iCT series known for simple installation, ease of use, and compact design, making it suitable for electrical automation, HVAC, manufacturing, and industrial motor control applications.

Applications include motor control in industrial automation, electrical panels, and commercial HVAC systems where reliable power switching is critical. The contactor is built with a class-2 insulation system to provide enhanced safety for operators and meet the stringent requirements of modern industrial environments.

With integrated auxiliary contacts and impulse relay functions, it supports advanced control schemes such as day-night operations and motor direction changes. The product is designed to be mounted alongside others in a DIN rail configuration; spacers are recommended after every second contactor to ensure effective heat dissipation and maintain optimal operating temperatures.

Operates with a coil voltage of 48V AC for reliable performance. Designed with 2 poles and 2 normally open (NO) contacts for effective circuit control. Handles contact voltage up to 250V AC and contact current of 25A. Compact design with dimensions: length 18mm, width 81mm, and depth 68mm.

Equipped with screw terminals that are IP20 finger-safe compatible. Rated power consumption of coil at 1.3 W for energy efficiency. Suitable for DIN rail mounting for easy installation in electrical panels. Supports operational temperature range from -5°C to 60°C ensuring durability in various environments.

Includes two auxiliary contacts with a 2 NO configuration for additional switching capabilities. Complies with RoHS and IEC/EN 61095 standards ensuring quality and safety compliance. Explore a wide range of Contactors and control gear on EnvMart for your industrial, manufacturing, and automation needs.
