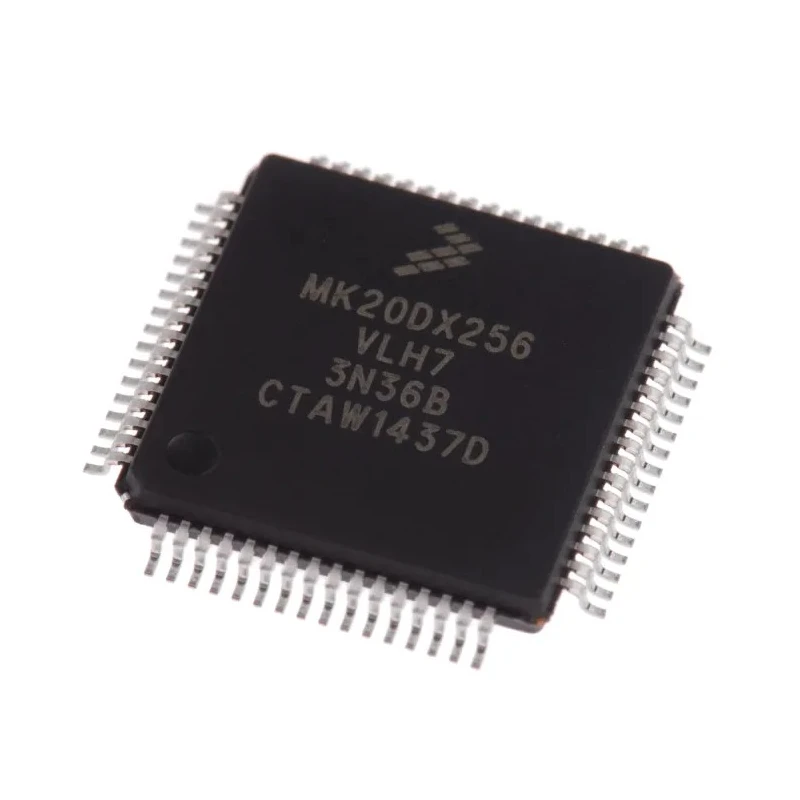

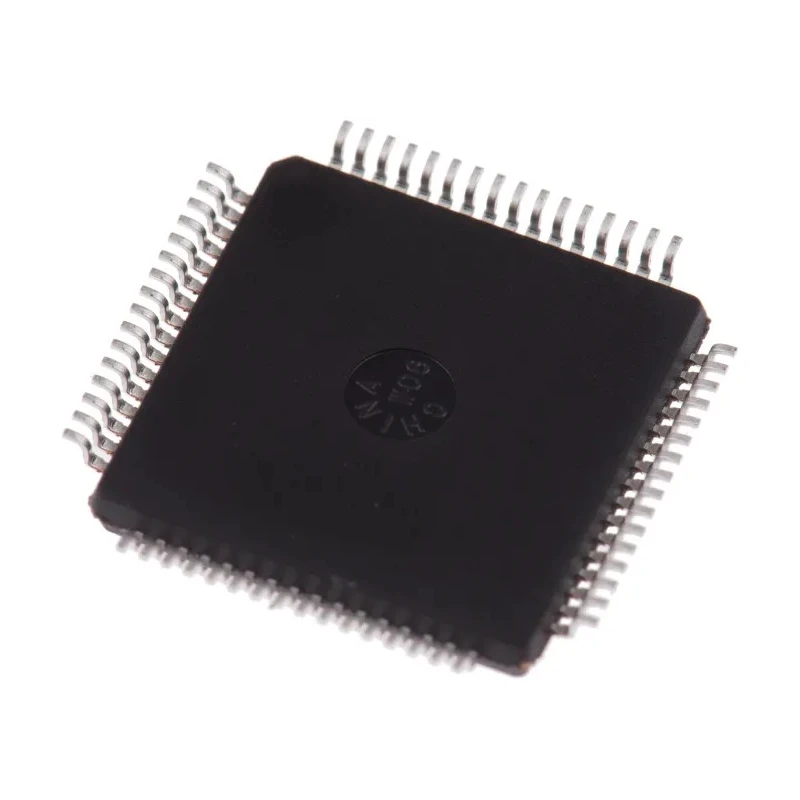

NXP Kinetis K2x Series ARM Cortex M4 Microcontroller 64-Pin LQFP 72 MHz 288kB FLASH MK20DX256VLH7

Free Delivery in India | Lowest Global Shipping Charges

NXP Kinetis K2x Series ARM Cortex M4 Microcontroller 64-Pin LQFP 72 MHz 288kB FLASH MK20DX256VLH7



Category Microcontroller Brand NXP Condition New

Specifications

Country of Origin	India
Brand	NXP
Height	1.6mm
Length	10mm
Model	MK20DX256VLH7
Width	10mm
Mount Type	Surface
Series	Kinetis K2x
Maximum Operating Temperature	105°C
Package Type	LQFP
Minimum Operating Temperature	-40°C
Ram size	66kB
Pin Count	64
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	1.71V
Device Core	ARM Cortex M4
Program Memory Size	288kB
Maximum Clock Frequency	72MHz
Analogue Comparators	3
Number of Timers	2
Instruction Set Architecture	DSP
ADCs	2 x 16 Bit
Program Memory Type	FLASH
DACs	12 Bit

Key Features

Based on ARM Cortex M4 architecture for efficient DSP operations.
64-pin LQFP surface mount package suitable for compact PCB designs.
Program memory of 288kB FLASH with 66kB RAM for versatile applications.
Operates at supply voltage range of 1.71V to 3.6V with wide temperature range from -40°C to 105°C.
Includes 2 x 16 Bit ADC, 12-bit DACs, 3 analogue comparators, and 2 timers for varied control uses.
Optimized for USB 2.0 On-The-Go with device charge detect and crystal-less USB functionality.
Ideal for embedded, industrial control, and automotive non-safety applications.
Compact 10mm x 10mm x 1.6mm package dimensions ensure space-efficient integration.

Product Description

The NXP MK20DX256VLH7 is a high-performance microcontroller belonging to the Kinetis K2x series, featuring an ARM Cortex M4 core running at 72 MHz. Designed with a 64-pin LQFP package, it integrates 288kB of FLASH program memory and 66kB RAM, suitable for embedded system applications demanding efficient processing and memory capacity.

Operating voltage ranges from 1.71V to 3.6V and it supports a broad temperature range from -40°C up to 105°C, making it ideal for industrial and commercial environments. The device includes a 12-bit DAC, three analogue comparators, two 16-bit ADC channels, and dual timers for precise system control and monitoring.

It offers extensive peripheral integration such as USB 2.0 On-The-Go (OTG) support, including device charge detect capability and USB crystal-less operation which simplifies design and reduces bill of materials costs. This microcontroller is optimized for low power consumption while maintaining high throughput, offering scalability within the Kinetis MCU family.

Typical applications include industrial automation, consumer electronics, and automotive systems where real-time control and signal processing are required but automotive safety standards are not mandatory. The compact 10mm by 10mm footprint with a 1.6mm height supports dense PCB layout and compact product designs.

Based on ARM Cortex M4 core architecture with DSP instructions. 72 MHz maximum clock frequency for responsive operation. 288kB FLASH program memory and 66kB RAM for diverse application needs. Operates across -40°C to 105°C temperature range for industrial robustness.

Includes 12-bit DAC, dual 16-bit ADCs, and analogue comparators for advanced analog interfacing. USB 2.0 OTG with charge detect and crystal-less USB features reduces system BOM. 64-pin LQFP package offers convenient surface-mount integration.

Low power consumption suited for embedded and IoT applications.

This product is new and made for reliable performance in demanding embedded MCU deployments. The NXP Kinetis K2x series provides an excellent balance of power-efficient processing and extensive peripheral integration to enable efficient development. It is distributed through authorized channels and is supported by extensive technical documentation and design resources.
