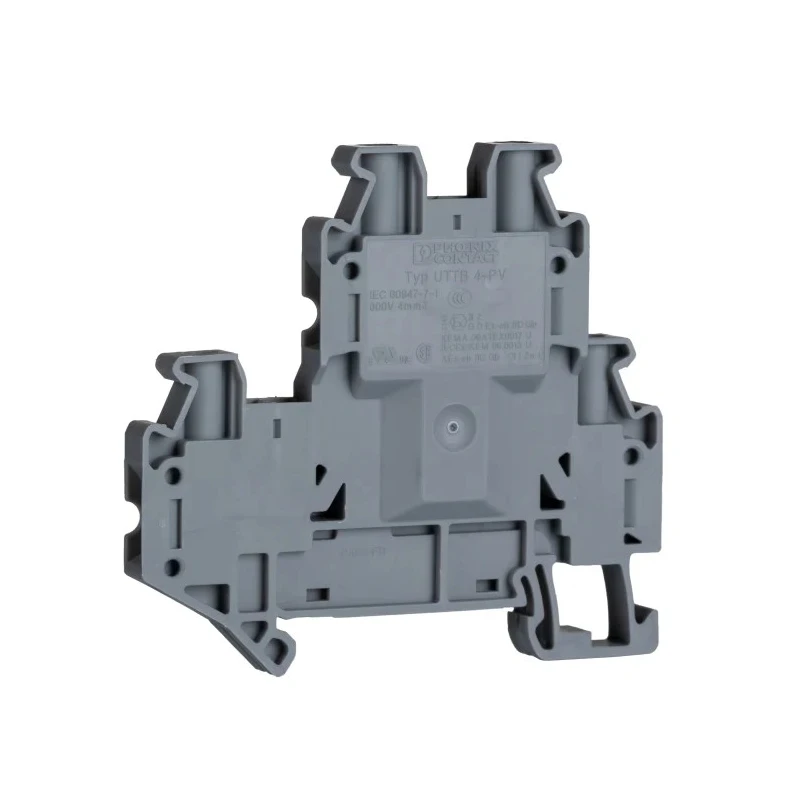

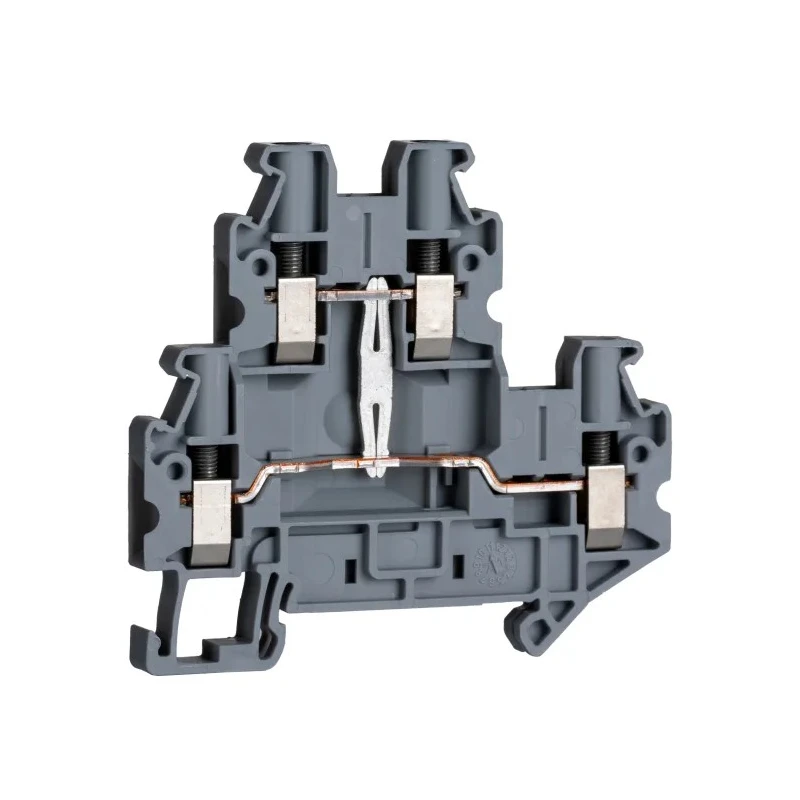

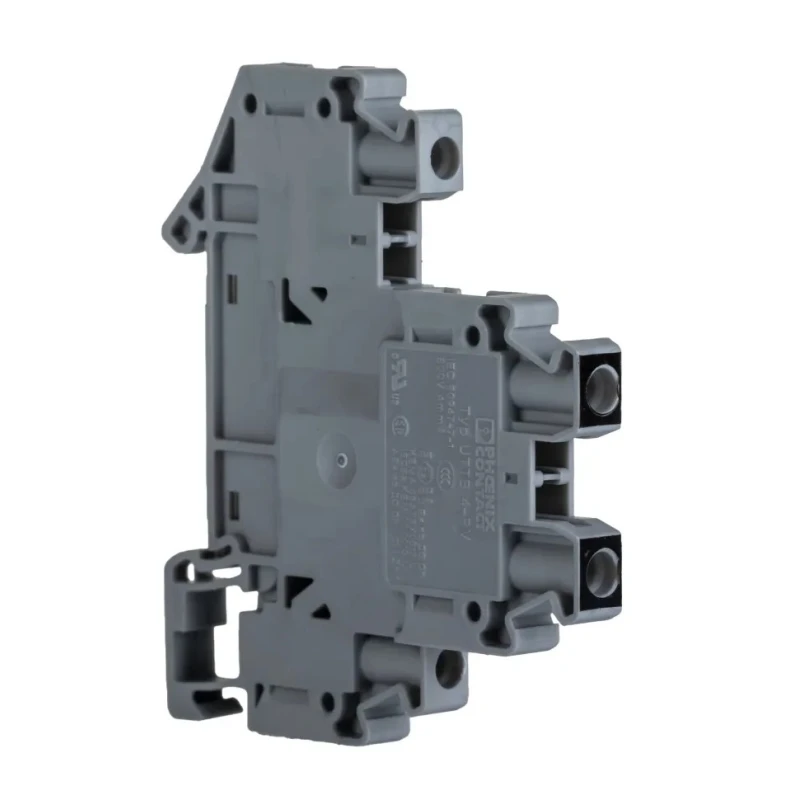

Phoenix Contact UTTB4-PV Series Double Level Feed Through Terminal Block Grey, 0.14mm² to 6 mm², 2-Level, Screw 3044733
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3044733 |
| Series | UTTB4-PV |
| Termination Type | Screw |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 2 |
| Sub Type | Feed Through |
| Hazardous Area Certification | IECEx KEM 06.0013 U, KEMA |
| Standards/Approvals | ATEX, CCC, CSA, cUL, cULus, DNV, EAC, EAC Ex, IEC 60947-7-1, IECEX, NEPSI, RS, UL |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 0.14, 6mm² |
| Terminal Block Current | 30A |
Key Features
- Double level design provides flexible potential distribution for automation and electrical systems.
- Supports conductors from 0.14 to 6 mm² for versatile application range.
- Construction includes grey color, screw termination, and 2-level configuration.
- Certified for hazardous areas with IECEx KEM and compliant with ATEX, CSA, IEC standards.
- Maximum operating temperature is 120°C, ensuring durability in industrial environments.
- Facilitates clear large-surface labelling for easy identification.
- Rated terminal block current of 30A suitable for high current applications.
- Designed and manufactured in Germany assuring quality and reliability.
Product Description
Phoenix Contact 3044733 UTTB4-PV Series double level feed through terminal block with a voltage rating of 800V and current capacity of 30A is designed for secure and efficient wiring in industrial and automation applications. The grey-colored terminal block supports wire sizes ranging from 0.14mm² to 6 mm², allowing connection flexibility.
Featuring a dual-level configuration with screw termination, this terminal block enables easy bridging between non-adjacent blocks and quick implementation of potential distribution tasks. The product supports large-surface labelling at every terminal point to ensure precise identification and management of wiring connections.
Certified under IECEx KEM 06.0013 U, KEMA for hazardous areas, and compliant with multiple international standards including ATEX, CCC, CSA, cUL, IEC 60947-7-1, this terminal block meets rigorous safety and quality benchmarks required in demanding environments like machine building, plant engineering, and railway industry applications.
The block operates reliably up to a maximum temperature of 120°C and supports conductors from 26 AWG to 10 AWG equivalent (0.14 mm² to 6 mm²). The screw-type termination provides secure electrical connection with a recommended torque of 0.6 to 0.8 Nm.
Double level design allows flexible potential distribution for complex wiring setups. Screw termination ensures secure and reliable electrical connections. Large surface labelling facilitates clear identification of wiring points during installation and maintenance.
Wide conductor size range accommodates various wire gauges for multiple applications. International hazardous area certifications affirm suitability for use in explosion-prone environments. High current rating supports demanding industrial and automation systems.
Grey coloring aids visual differentiation in terminal block assemblies. Manufactured in Germany ensuring stringent quality standards.
This terminal block is ideally suited for industrial wiring tasks including automation systems, plant engineering, machine building, and railway industry applications where secure, standard-compliant, high-current terminals are required.
Explore more advanced DIN Rail Terminal Blocks and Phoenix Contact products at EnvMart for your industrial electrical connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this terminal block is 120°C.
This terminal block has a voltage rating of 800V.
The terminal block is rated for a current capacity of 30A.
It supports wire sizes ranging from 0.14 mm² to 6 mm² (26 AWG to 10 AWG).
This model uses screw termination for secure electrical connections.
It is certified under IECEx KEM 06.0013 U and KEMA for hazardous areas.
It features a double level design, allowing flexible potential distribution.
The terminal block is grey in color.
It is manufactured in Germany, ensuring stringent quality standards.
It is suitable for industrial wiring tasks including automation systems and plant engineering.
It includes large-surface labelling at every terminal point for easy identification.
