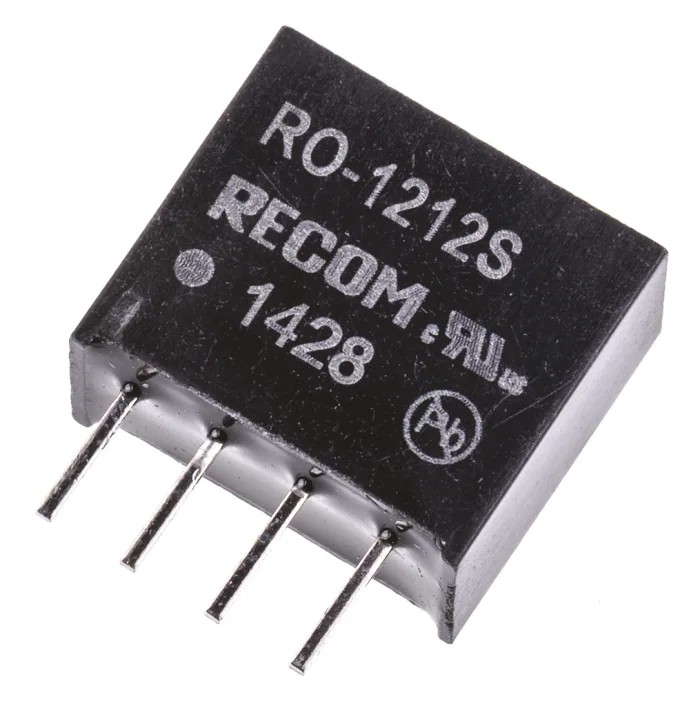

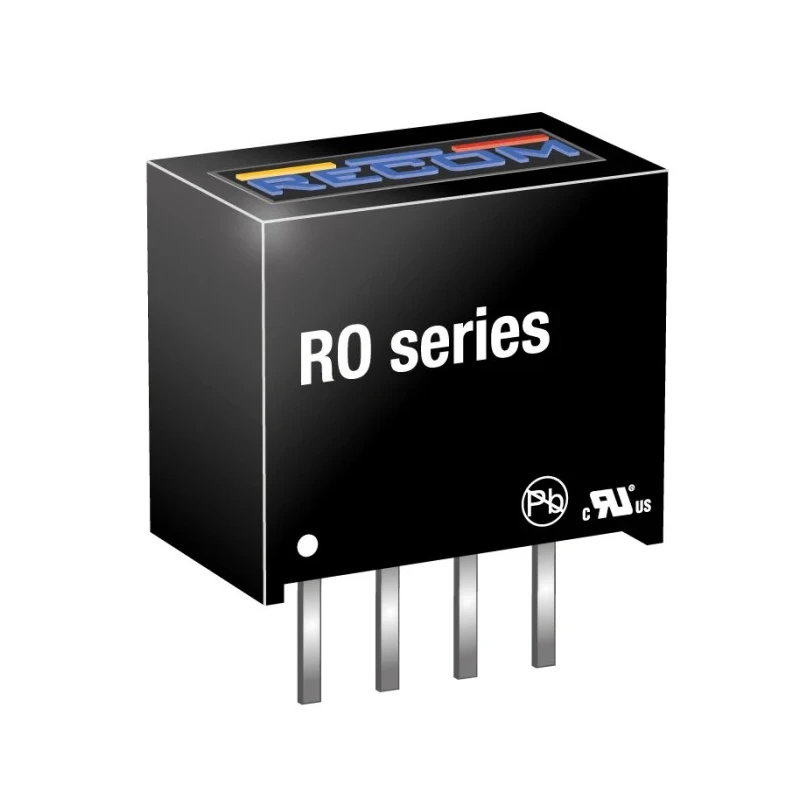

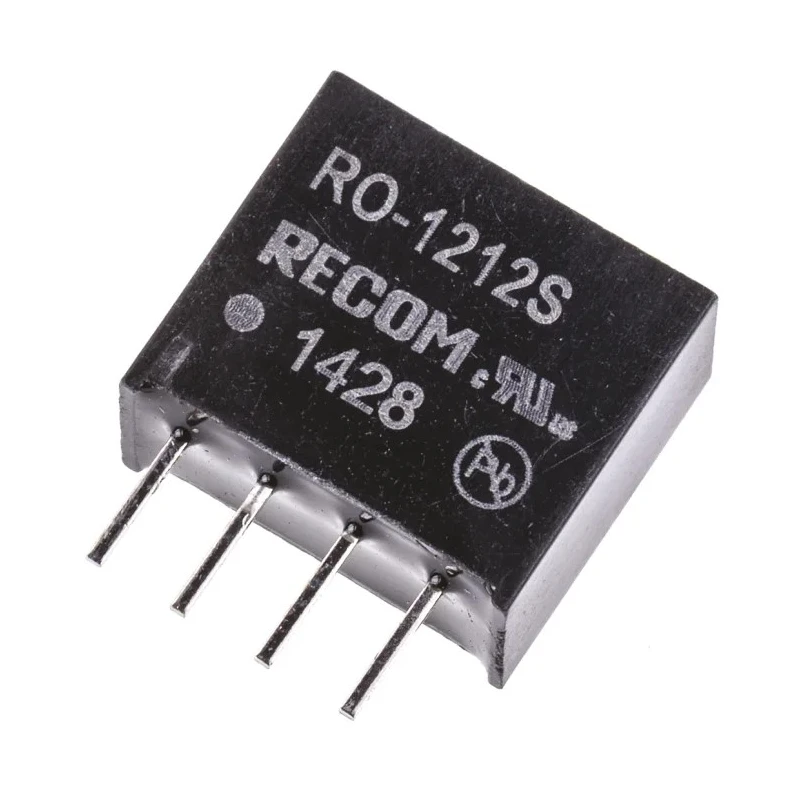

Recom RO Series DC/DC Converter 12V DC Output 83 mA 1 W Through Hole 6-Pin RO-1212S

Recom RO-1212S DC/DC Converter is a compact and efficient power supply solution designed to convert DC voltage levels for electronic circuits. This converter operates with an input voltage range of 0V to 12V DC and delivers a stable 12V DC output at 83 mA current and 1 W output power. It is housed in a SIP package suitable for through-hole mounting with a 6-pin configuration.

The device maintains a high efficiency of approximately 84%, ensuring minimal power loss during voltage conversion. Its wide operating temperature range from -40°C to 85°C allows reliable performance in demanding industrial and environmental conditions. Integrated short-circuit protection enhances the safety of the circuit by preventing damage from faults.

With an isolation voltage rating of 1 kV DC, this converter provides galvanic isolation between input and output to reduce electrical interference and noise. Operating ripple and noise are controlled at 100 mV peak-to-peak, making it suitable for sensitive electronic applications.

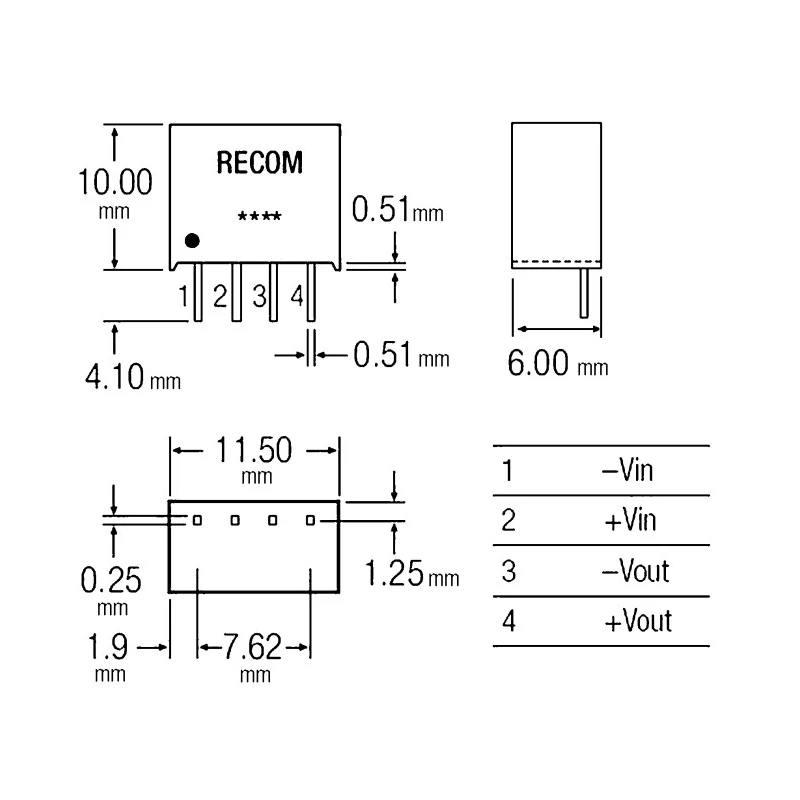

The converter's compact dimensions are 11.5 mm in length, 6 mm in width, and 10 mm in depth, with a light weight of 1.4 g, making installation easy in space-constrained environments.

Its robust design and high mean time between failures (MTBF) of 200,000 hours support long service life, making it applicable in lighting controls, telecommunications equipment, portable phone power circuits, and manufacturing industry electronics.

Operates safely between -40°C and 85°C temperature range. Features integrated short-circuit protection for enhanced reliability. High efficiency rating of 84% to minimize energy loss. Isolated input to output voltage with 1 kV DC isolation voltage.

Compact SIP package type with dimensions 11.5 mm length, 6 mm width, and 10 mm depth. Ripple and noise level maintained at 100 mV peak-to-peak. Suitable for lighting control, telecommunications, and portable phone applications.

Mean time between failures (MTBF) of 200,000 hours ensures durability. Wide input voltage range from 0V to 12V DC. Output voltage accuracy within ±5%. Explore more power supply and DC/DC Converter options to meet your electronics design needs at EnvMart.
