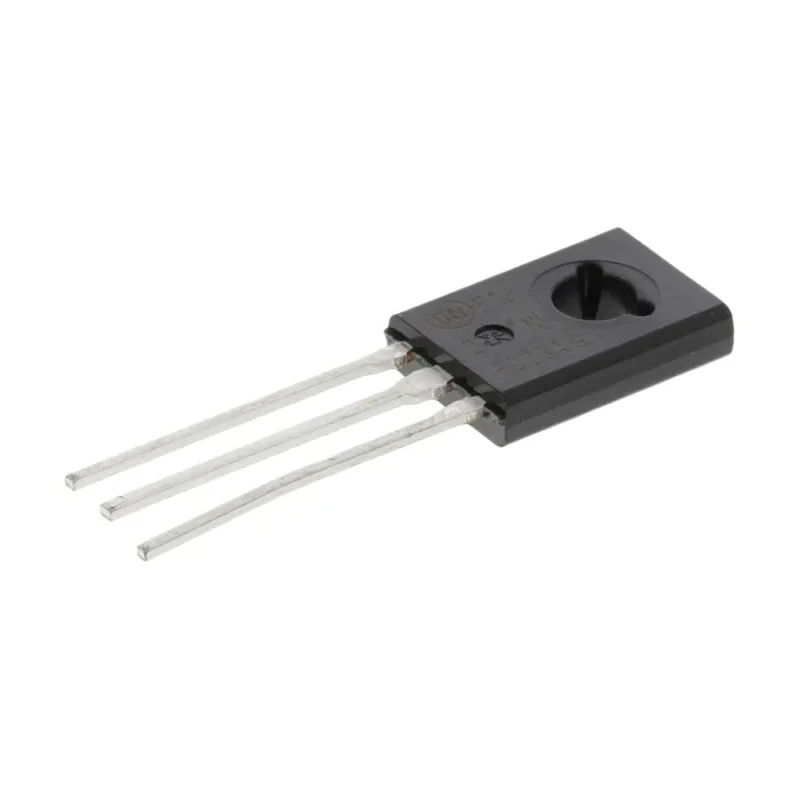

Littelfuse Through Hole 3-Pin TRIAC 400 V, Gate Trigger 2.5 V 2N6073AG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Littelfuse |
| Height | 11.04mm |
| Length | 7.74mm |
| Model | 2N6073AG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 110°C |
| Package Type | TO-225 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 4A |
| Repetitive Peak Reverse Voltage VDRM | 400V |
| Surge Current Rating | 30A |
| Maximum Gate Trigger Current Igt | 30mA |
| Maximum Holding Current Ih | 30mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 2V |
| Repetitive Peak Off-State Current | 2mA |
Key Features
- This TRIAC features a through hole mount design with a TO-225 package.
- It supports a rated average on-state current of 4 A for reliable AC switching.
- The device has a maximum gate trigger current of 30 mA and holding current of 30 mA.
- Its repetitive peak reverse voltage is rated at 400 V, ensuring robust operation in AC circuits.
- The TRIAC operates within a wide temperature range from -40°C to 110°C.
- It has a compact form factor with a height of 11.04 mm and length of 7.74 mm.
- This product complies with RoHS environmental standards for hazardous substance reduction.
- The maximum repetitive peak off-state current is specified at 2 mA to reduce leakage.
Product Description
Littelfuse 2N6073AG is a 3-pin TRIAC designed for through hole mounting, suitable for switching alternating current in industrial and electronic applications. It supports a rated average on-state current of 4 A and a repetitive peak reverse voltage of 400 V, making it ideal for medium power AC switching.
The TRIAC package type is TO-225, which facilitates easy PCB mounting and integration. It features a gate trigger voltage of 2.5 V and gate trigger current of 30 mA, ensuring reliable activation in control circuits.
Operating across a temperature range from -40°C to 110°C, this component performs reliably in varied environmental conditions. Its compact height of 11.04 mm and length of 7.74 mm allows for space-efficient circuit design.
With a maximum holding current of 30 mA and a repetitive peak off-state current of 2 mA, the device maintains stable off-state leakage characteristics for effective circuit protection. The peak on-state voltage is 2 V, ensuring efficient conduction during the on-state.
The Littelfuse 2N6073AG complies with RoHS directives, confirming its compliance with environmental safety standards. It is suitable for applications in industrial automation, electronic device control, HVAC systems, and other AC load switching scenarios where precise control and durability are required.
This TRIAC features a through hole mount design with a TO-225 package. Rated average on-state current is 4 A. Maximum gate trigger current and voltage are 30 mA and 2.5 V respectively. Operational temperature range from -40°C to 110°C.
Compact dimensions: 11.04 mm height and 7.74 mm length. Repetitive peak reverse voltage rated at 400 V. Compliant with RoHS environmental standards. Maximum repetitive peak off-state current is 2 mA. Explore a wide range of semiconductor components in the Littelfuse category at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current for this model is 4 A, making it suitable for reliable AC switching applications.
The maximum repetitive peak reverse voltage of the 2N6073AG is rated at 400 V, ensuring robust operation in AC circuits.
This model has a compact height of 11.04 mm and a length of 7.74 mm, facilitating space-efficient circuit design.
The maximum gate trigger voltage for this TRIAC is 2.5 V, which aids in reliable activation within control circuits.
This TRIAC operates within a wide temperature range from -40°C to 110°C, allowing for reliable performance in various environmental conditions.
The maximum gate trigger current for the 2N6073AG is 30 mA, which is essential for its activation in control applications.
This model supports a through hole mount design, making it suitable for easy PCB integration.
The peak on-state voltage for this TRIAC is 2 V, ensuring efficient conduction during its on-state operation.
The maximum holding current for this TRIAC is 30 mA, which helps maintain stable off-state leakage characteristics.
The maximum repetitive peak off-state current is specified at 2 mA, which helps reduce leakage in the circuit.
Yes, the Littelfuse 2N6073AG complies with RoHS environmental standards for hazardous substance reduction.
This TRIAC uses a TO-225 package type, which facilitates easy mounting on printed circuit boards.
