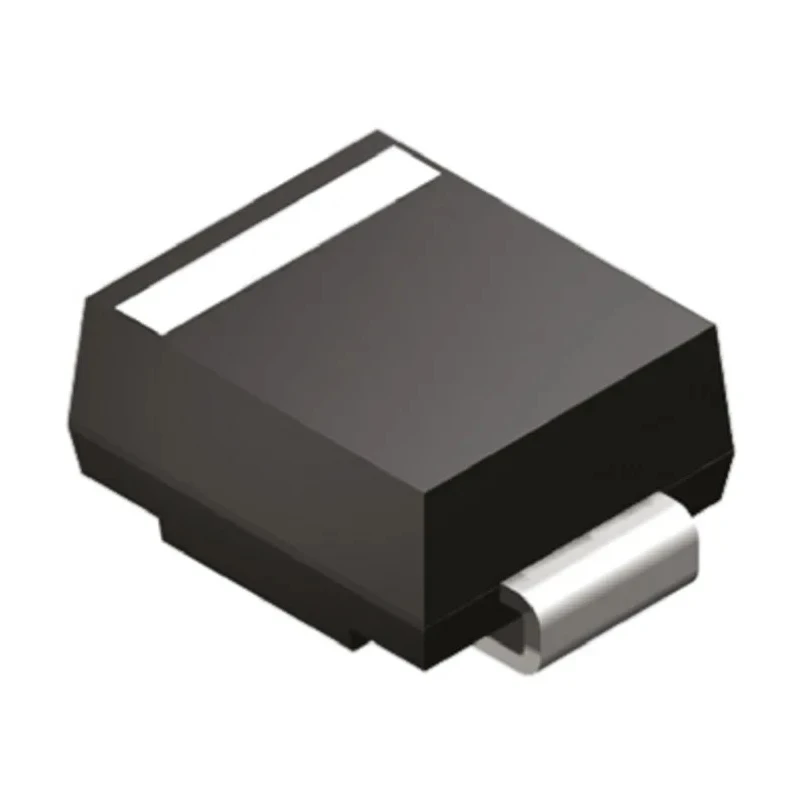

Bourns Uni-Directional TVS Diode 1-Element 600 W 2-Pin DO-214 SMBJ24A

Bourns SMBJ24A is a single-element uni-directional TVS diode providing high transient voltage suppression with a peak pulse power of 600 W. It features a compact DO-214 surface mount package with two pins, ideal for protecting sensitive circuitry in a variety of industrial, automotive, and commercial electronic applications.

This diode operates reliably within a wide temperature range from -55°C to 150°C, making it suitable for harsh environmental conditions. Its small form factor with dimensions of 4.57 mm length, 3.94 mm width, and 2.42 mm height ensures minimal board space usage.

Thanks to its AEC-Q101 automotive qualification, the SMBJ24A is also suitable for robust automotive system protection. The device has a maximum reverse stand-off voltage of 24 V and a minimum breakdown voltage of 26.7 V, providing effective protection against voltage transients.

The device ensures low leakage current of 5 μA, minimizing power dissipation in steady state, with a clamping voltage of 3.5 V to limit voltage surges. It supports electrostatic discharge (ESD) protection for increased durability and circuit reliability.

Typical applications include transient voltage suppression in power supplies, automotive electronics, communication devices, and industrial control systems. The surface mount DO-214 package allows easy integration into PCB assemblies with automated placement equipment.

Uni-directional diode designed to protect sensitive electronics from voltage spikes. Peak pulse power dissipation of 600 W ensuring robust transient voltage suppression. Operating temperature range from -55°C to 150°C suitable for various industrial conditions.

Compact dimensions: 4.57 mm length, 3.94 mm width, and 2.42 mm height for space-efficient mounting. Featuring AEC-Q101 automotive qualification for reliable performance in automotive applications. Surface mount type with two pins for ease of PCB assembly.

Maximum reverse standoff voltage of 24 V and minimum breakdown voltage of 26.7 V. Low maximum reverse leakage current of 5 μA to minimize power loss. Clamping voltage of 3.5 V protecting circuits from voltage transients.

ESD protection capability to safeguard against electrostatic discharge events. Explore Bourns product selections and other TVS Diode components in the Electronics & Electricals category at EnvMart.
