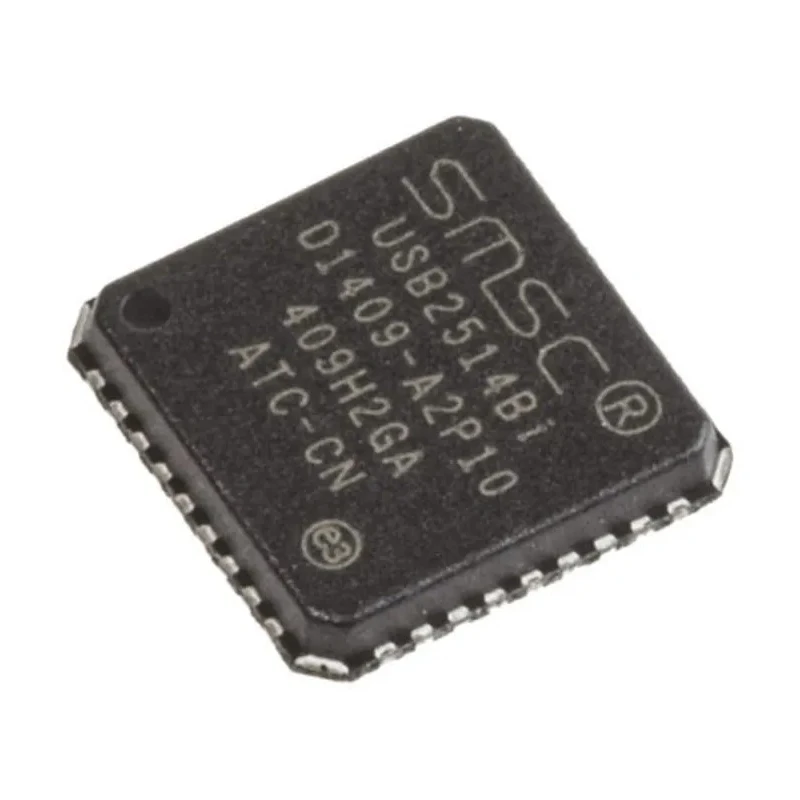

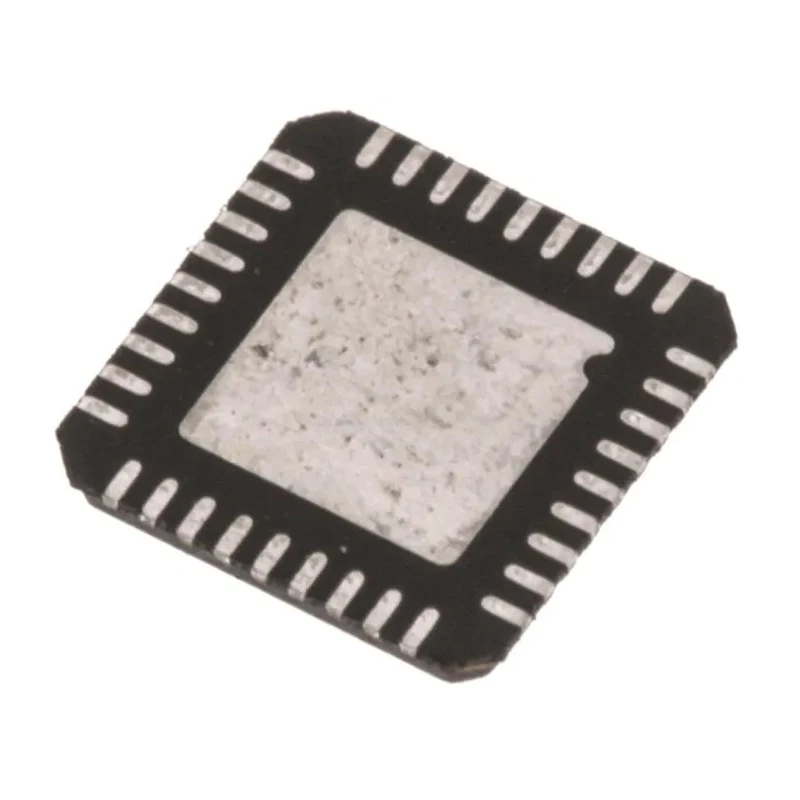

Microchip Transceiver IC USB2514BI-AEZG 1-Channel 480 Mbps USB 2.0 3.3V-3.6V 36-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6.15mm |
| Model | USB2514BI-AEZG |
| Mount Type | Surface |
| Series | USB251 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 2 |
| Pin Count | 36 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Maximum Data Rate | 480Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 2.0 |
Key Features
- Supports high-speed data transfer rates up to 480 Mbps.
- Operates with supply voltage range from 3.3 V to 3.6 V.
- Features a 36-pin QFN package for surface mounting to PCBs.
- Includes integrated ESD protection for device safety and reliability.
- Compatible with USB 2.0 specification and supports USB Battery Charging Rev. 1.1.
- Ideal for embedded system applications requiring USB connectivity.
- Operates over a wide temperature range from -40°C to 85°C.
- Equipped with MultiTRAK™ technology providing individual transaction translators per port.
Product Description
Microchip USB2514BI-AEZG transceiver IC is a high-performance, low-power USB 2.0 interface device designed for embedded systems requiring robust USB connectivity and data throughput of up to 480 Mbps. It features operation over a supply voltage range of 3.3 V to 3.6 V and is housed in a compact 36-pin QFN surface mount package measuring 6.15 mm in length with a height of 950 μm.
This device supports USB 2.0 specification and USB Battery Charging Rev. 1.1, allowing efficient charging downstream ports. The integrated ESD protection enhances device reliability and system robustness against electrostatic discharge events.
Featuring Microchip's MultiTRAK™ technology, the USB2514BI-AEZG provides dedicated transaction translators per port to maintain consistent full-speed data throughput regardless of the number of active downstream connections. PortMap and PortSwap functionalities offer flexible port configuration and USB differential-pair pin alignment, which simplifies PCB layout and signal routing challenges. PHYBoost allows programmable drive strength to recover signal integrity in complex designs.
The device supports operation in a wide temperature range from -40°C to 85°C, making it suitable for industrial and commercial applications. It is a drop-in replacement for USB251x/USB251xA devices, providing ease of integration into existing designs.
Common applications include embedded USB hubs, data acquisition systems, and communication devices requiring reliable USB 2.0 transceiver functionality with advanced power management and signal optimization features.
Supports high-speed data transfer rates up to 480 Mbps. Operates with supply voltage range from 3.3 V to 3.6 V. Features a 36-pin QFN package for surface mounting to PCBs. Includes integrated ESD protection for device safety and reliability.
Compatible with USB 2.0 specification and supports USB Battery Charging Rev. 1.1. Ideal for embedded system applications requiring USB connectivity. Operates over a wide temperature range from -40°C to 85°C. Equipped with MultiTRAK™ technology providing individual transaction translators per port.
Programmable port mapping and PHYBoost signal drive strength for enhanced signal integrity. Explore more semiconductor and USB Interface ICs on EnvMart to optimize your electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip USB2514BI-AEZG supports a maximum data transfer rate of 480 Mbps.
It operates with a supply voltage range from 3.3 V to 3.6 V.
This transceiver IC features a 36-pin QFN package for surface mounting.
The device operates over a wide temperature range from -40°C to 85°C.
Yes, it supports USB Battery Charging Rev. 1.1, allowing efficient charging of downstream ports.
It is equipped with MultiTRAK™ technology, providing individual transaction translators per port.
The device measures 6.15 mm in length and has a height of 950 μm.
It is ideal for embedded system applications requiring USB connectivity, such as USB hubs and data acquisition systems.
Yes, it includes integrated ESD protection for enhanced device safety and reliability.
It is compatible with the USB 2.0 specification.
The maximum operating temperature for the USB2514BI-AEZG is 85°C.
It features PHYBoost technology, which allows programmable drive strength to recover signal integrity in complex designs.
