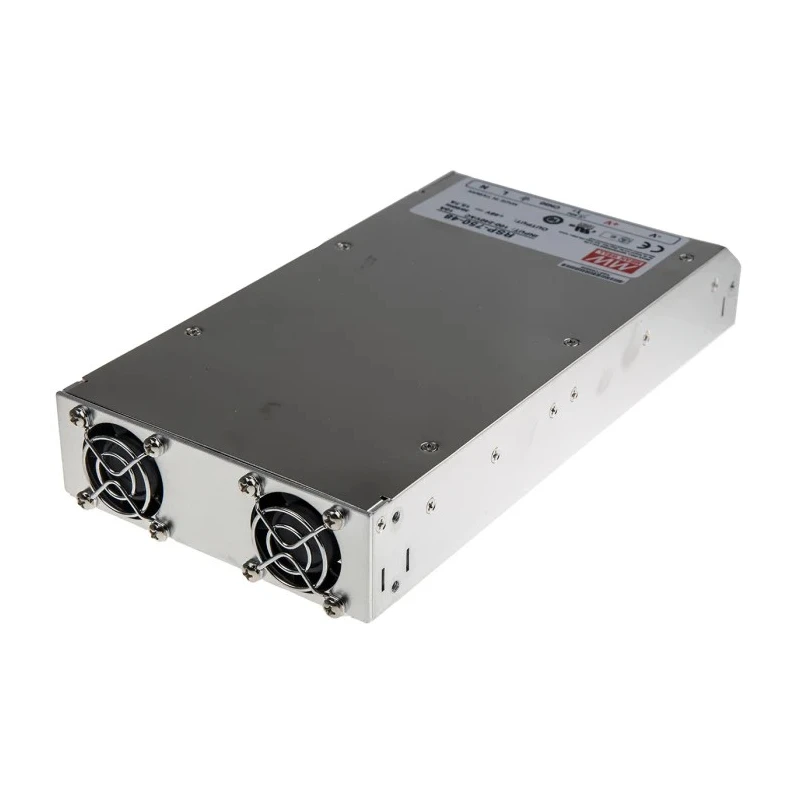

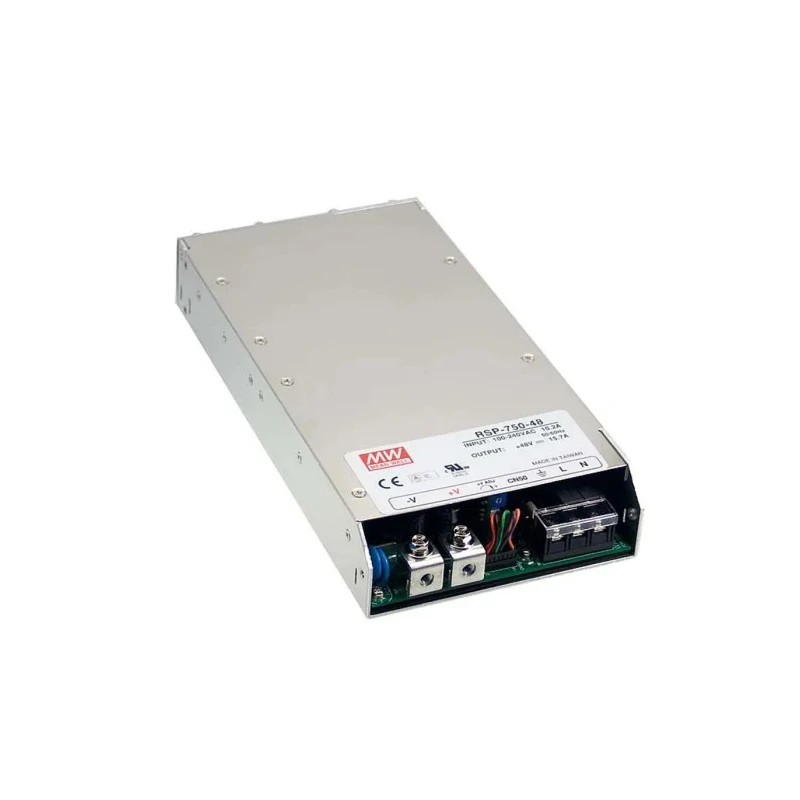

MEAN WELL RSP-750-48 Switching Power Supply 48V dc 753.6W 15.7A Chassis Mount RSP-750-48

MEAN WELL RSP-750-48 Switching Power Supply is a high-performance chassis mount AC to DC embedded switch mode power supply delivering 753.6W of power at 48V dc with a rated output current of 15.7A. Designed for industrial applications, it supports a universal input voltage range from 90V ac to 264V ac and from 127V dc to 370V dc, making it highly versatile for various global power environments.

The compact low-profile design with only 41mm depth suits 1U installation spaces, enhancing equipment integration efficiency. It incorporates built-in active power factor correction (PFC) and achieves high efficiency of up to 92%, contributing to energy savings and system reliability.

This power supply features adjustable output voltage and current trimming between 40% and 110% of the rated value via external control voltage, remote ON/OFF control functionality, and remote sense capability. A DC OK TTL signal output and 12V auxiliary power output at 0.1A provide status and auxiliary power options for system integration.

Protection features include short circuit, overload, overvoltage, and over temperature safeguards. Forced air cooling through a built-in DC fan ensures stable operation in ambient temperatures ranging from -30°C to 50°C at full load, with derating up to 70°C ambient.

Certified to multiple international standards such as UL 62368-1, TUV EN 62368-1, CE, CSA, and others, it meets stringent safety and electromagnetic compatibility requirements. Applications include industrial control systems, IC testing equipment, instrumentation, telecommunications, data storage, laser carving machines, charging systems, and other high-wattage power supply needs.

Compact low-profile chassis mount design with 41mm depth for 1U installation. Supports wide input voltage ranges from 90V ac to 264V ac and 127V dc to 370V dc. Maximum output voltage of 48V dc with output current rating of 15.7A.

Built-in active PFC and high efficiency up to 92% ensures energy savings. Features remote ON/OFF control and remote sense for flexible operation. Offers output voltage and current trimming between 40% and 110% using external control voltage.

Equipped with DC OK TTL signal output and 12V auxiliary output at 0.1A. Robust protections including short circuit, overload, overvoltage, and over temperature. Forced air cooling by built-in DC fan guarantees stable operation up to 70°C.

Suitable for industrial control systems, telecommunications, data storage, laser carving, and charging systems. Explore our extensive catalog for additional MEAN WELL power supply options that fit your industrial and commercial needs.
