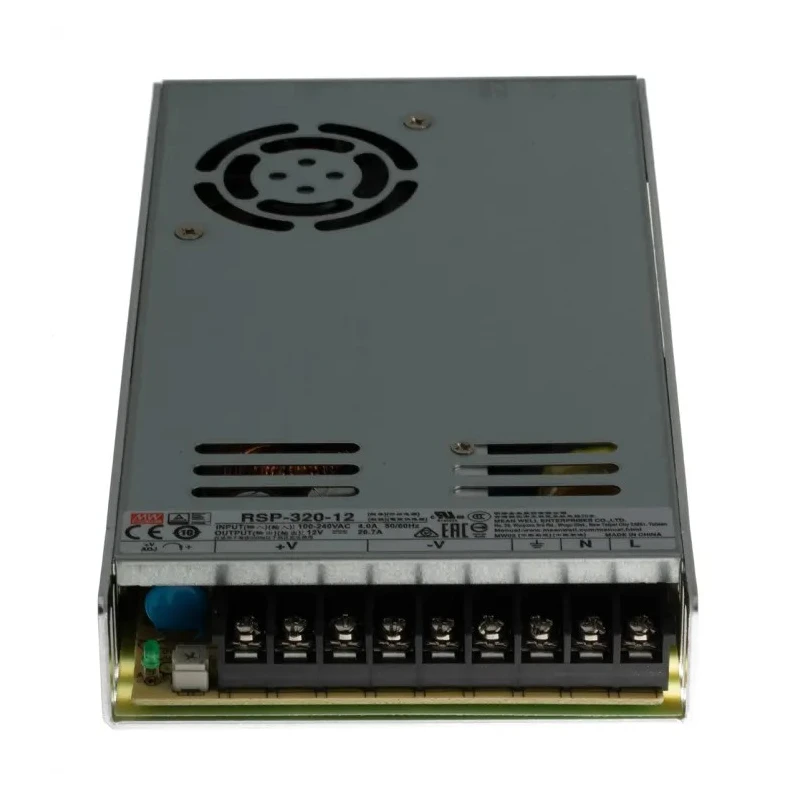

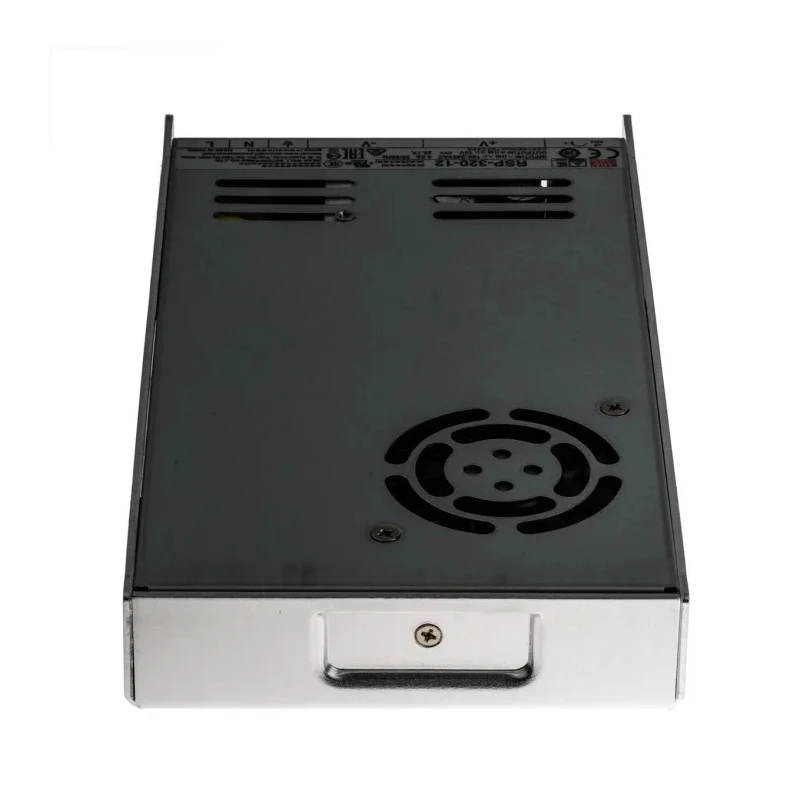

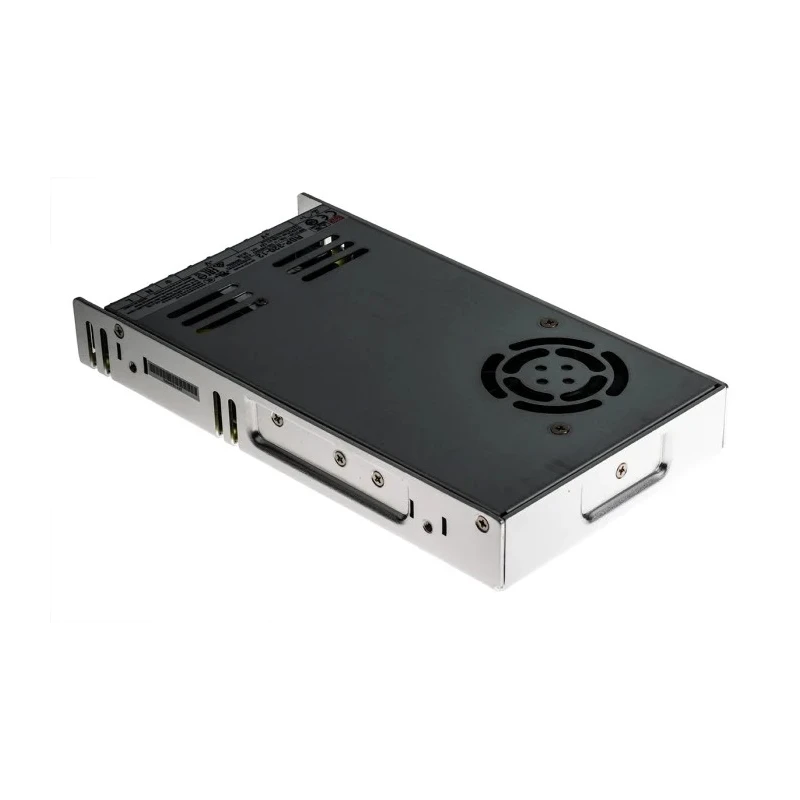

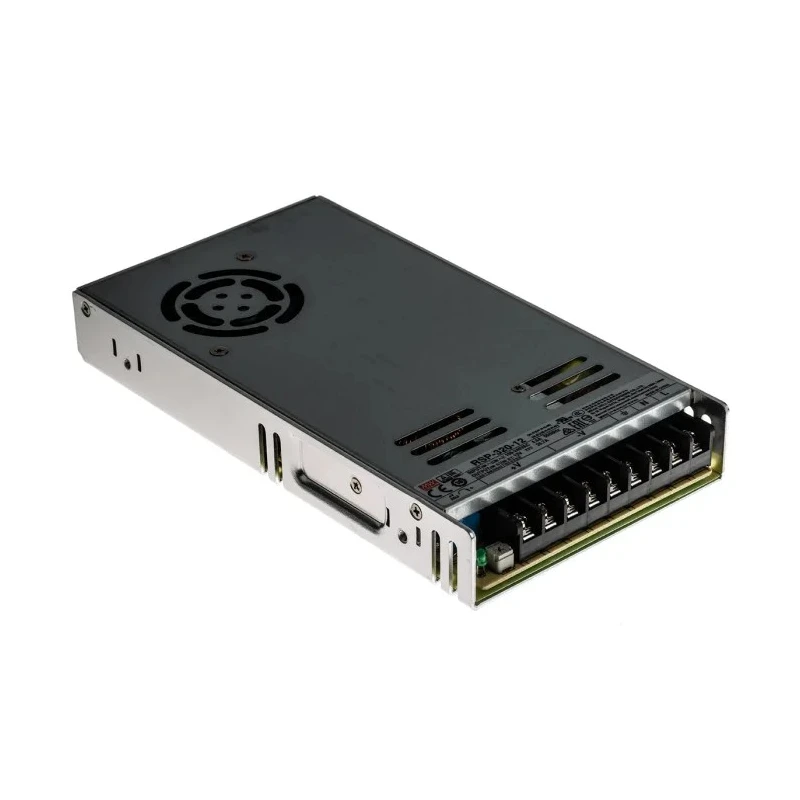

MEAN WELL Switching Power Supply 12V DC 320W, 26.74A Output Current, Chassis Mount RSP-320-12
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 320W |
| Efficiency | 88% |
| Length | 215mm |
| Model | RSP-320-12 |
| Depth | 30mm |
| Gross Weight | 900g |
| Width | 30mm |
| Mount Type | Chassis |
| Series | RSP-320 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 26.74A |
| Minimum Input Voltage | 88V ac |
Key Features
- Universal input voltage range from 88VAC to 264VAC and 124VDC to 370VDC.
- High efficiency of 88% with built-in active power factor correction (PFC).
- Compact chassis mount design with 30mm depth for 1U installation.
- Comprehensive protections against short circuit, overload, overvoltage, and over temperature.
- Operation temperature range from -30°C to 70°C with suitable derating.
- Forced air cooling provided by built-in DC fan.
- Single output delivering 12V DC at 26.74 amps and 320 watts power.
- LED indicator for monitoring operational status.
Product Description
MEAN WELL RSP-320-12 switching power supply is a robust and efficient AC to DC embedded switch mode power supply designed for industrial and electrical applications. Delivering a single output of 12V DC at 320 watts and 26.74 amps, it supports universal input voltage ranges from 88VAC up to 264VAC and 124VDC to 370VDC, making it adaptable for various power grids worldwide.
The power supply features a compact chassis mount with a low profile depth of 30mm, ideal for 1U height installations where space is critical. It boasts an efficiency of 88% enhanced by built-in active power factor correction (PFC) and includes a forced air cooling mechanism via a built-in DC fan to maintain optimum thermal performance.
Advanced protection circuits ensure safety and reliability, offering protection against short circuits, overloads, overvoltage, and over temperature conditions. The product operates reliably in ambient temperatures ranging from -30°C to 70°C with appropriate derating, suitable for demanding industrial environments.
Universal input voltage: 88 - 264VAC and 124 - 370VDC. Output voltage: 12V DC with 26.74A current. 320 watt power rating with 88% efficiency. Chassis mount with 30mm depth for compact installation. Built-in active PFC for better power quality.
Forced air cooling with integrated DC fan. Protection features: short circuit, overload, overvoltage, and temperature. LED indicator for operational status. Certifications: UL 62368-1, TUV, CCC, CSA, BSMI, EAC, IEC standards.
This switch mode power supply is well-suited for industrial control systems, mechanical and electrical instruments, LED displays, and other applications requiring reliable low profile power supplies.
Country of origin: China. Explore a wide range of power supplies and related products at EnvMart for industrial and commercial electrical needs.
