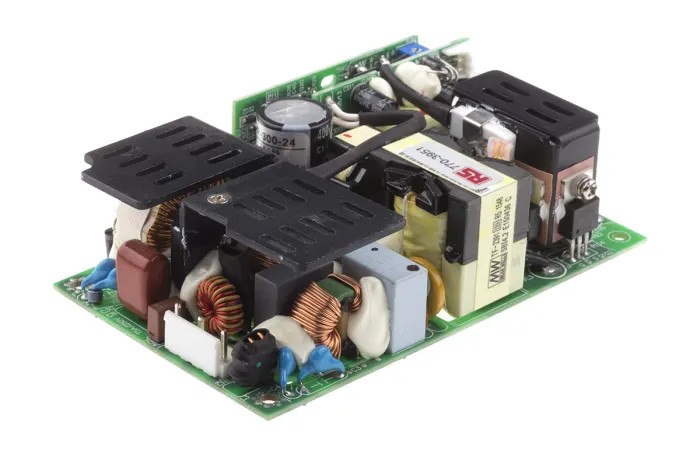

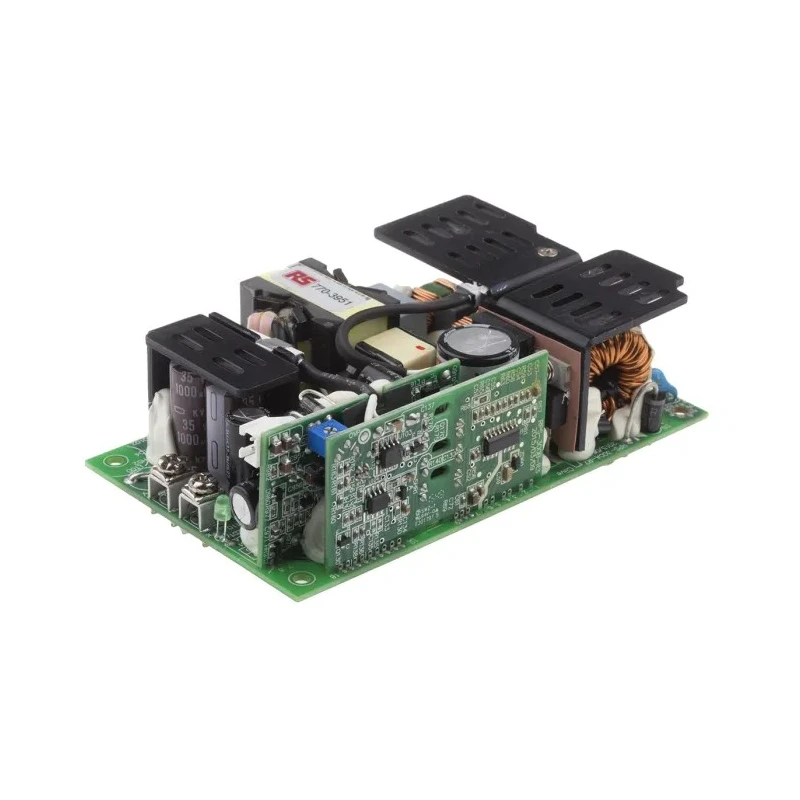

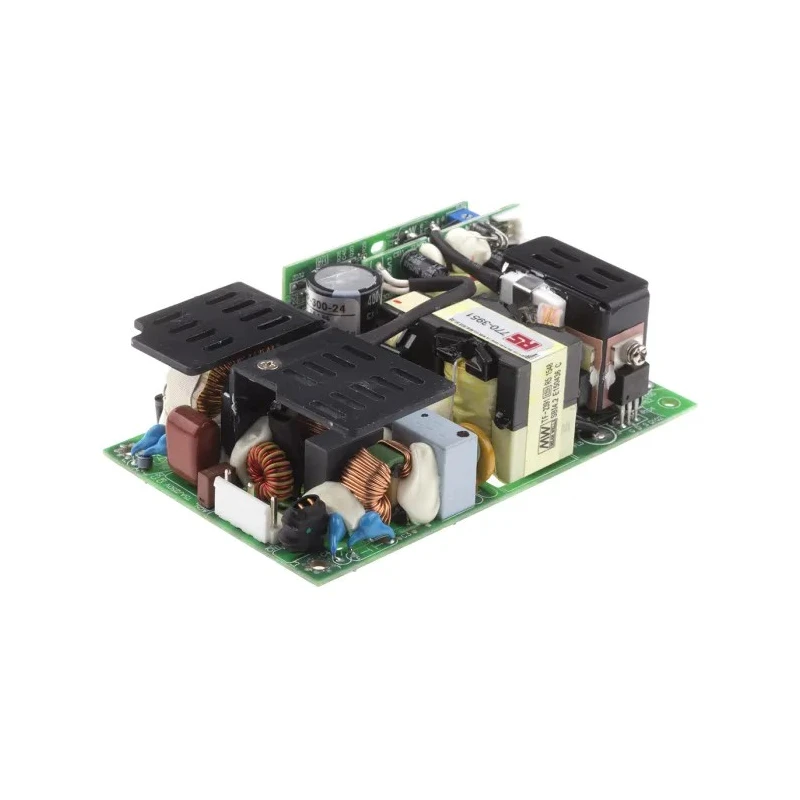

MEAN WELL 200W Switching Power Supply 24V DC, 90-264V AC Input Chassis Mount EPP-300-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 200W |
| Efficiency | 92.5% |
| Length | 127mm |
| Model | EPP-300-24 |
| Depth | 35mm |
| Gross Weight | 370g |
| Width | 76mm |
| Mount Type | Chassis |
| Series | EPP-300 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Protections | short circuit, overload, over voltage, over temperature |
| Standards/Approvals | UL 6681, EAC TP TC 004, TUV BS ENEN 6681, IEC 6681 |
| Maximum Output Voltage | 24V dc |
| SMPS Output Current | 8.33A |
| Minimum Input Voltage | 90V ac |
Key Features
- Provides 200W continuous power output with 8.33A current capacity.
- Supports input voltage from 90V to 264V AC, suitable for global use.
- Features high efficiency up to 92.5% for power saving and less heat dissipation.
- Operating temperature range from -30°C to 70°C ensuring robust performance.
- Equipped with remote ON/OFF control and auxiliary outputs for flexible system integration.
- Complies with UL 6681, EAC TP TC 004, TUV BS EN, and IEC 6681 standards.
- Lightweight design at 370g, fitting for space-restricted applications.
Product Description
MEAN WELL EPP-300-24 is a high-performance 200W switching power supply designed for industrial machinery, IT systems, and electrical equipment. This chassis mount unit converts 90-264V AC input into a stable 24V DC output with maximum current of 8.33A, enabling efficient power delivery in a compact, durable form factor measuring 127mm by 76mm by 35mm.
It features advanced LLC topology and synchronous rectification technology providing up to 92.5% efficiency, reducing energy loss and thermal output. The unit supports convection cooling up to 50°C ambient temperature delivering full power continuously and up to 300W with forced air cooling.
With a wide operating temperature from -30°C to 70°C, the power supply maintains reliable operation under harsh conditions. Safety features include protections against short circuit, overload, over voltage, and over temperature, ensuring longevity and system safety.
The EPP-300-24 also includes a 12V/0.5A auxiliary output, a 5V/1A standby output, and remote ON/OFF control for advanced system integration flexibility. It supports 300VAC surge immunity for 5 seconds enhancing robustness against voltage spikes.
This unit complies with UL 6681, EAC TP TC 004, TUV BS EN, and IEC 6681 standards, certifying quality and safety. Its lightweight at only 370g and chassis mounting design make it an ideal solution for space-constrained industrial and laboratory power applications.
Provides 200W continuous power output with 8.33A current capacity. Supports input voltage from 90V to 264V AC, suitable for global use. Features high efficiency up to 92.5% for power saving and less heat dissipation. Operating temperature range from -30°C to 70°C ensuring robust performance.
Compact chassis mounting form factor dimensions: 127mm length × 76mm width × 35mm depth. Includes multiple protections: short circuit, overload, over voltage, and over temperature. Equipped with remote ON/OFF control and auxiliary outputs for flexible system integration.
Complies with UL 6681, EAC TP TC 004, TUV BS EN, and IEC 6681 standards. Lightweight design at 370g, fitting for space-restricted applications.
Ideal for use in industrial, IT systems, and construction equipment, the MEAN WELL EPP-300-24 switching power supply ensures efficient, reliable power delivery. Browse the Electronics & Electricals category on EnvMart for this and other high-quality power supplies to meet your project needs.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EPP-300-24 provides a maximum output power of 200W with a current capacity of 8.33A.
This model supports an input voltage range from 90V to 264V AC, making it suitable for global use.
It features a high efficiency rating of up to 92.5%, which helps in reducing energy loss and heat dissipation.
The dimensions of the EPP-300-24 are 127mm in length, 76mm in width, and 35mm in depth.
This model includes protections against short circuit, overload, over voltage, and over temperature to ensure system safety.
Yes, it is equipped with a 12V/0.5A auxiliary output and a 5V/1A standby output for flexible system integration.
The weight of this power supply is 370g, making it suitable for space-restricted applications.
The EPP-300-24 uses a chassis mount type, which is ideal for various installation scenarios.
It complies with UL 6681, EAC TP TC 004, TUV BS EN, and IEC 6681 standards, certifying its quality and safety.
The maximum input voltage for the EPP-300-24 is 264V AC.
This power supply is designed for use in industrial machinery, IT systems, and electrical equipment.
