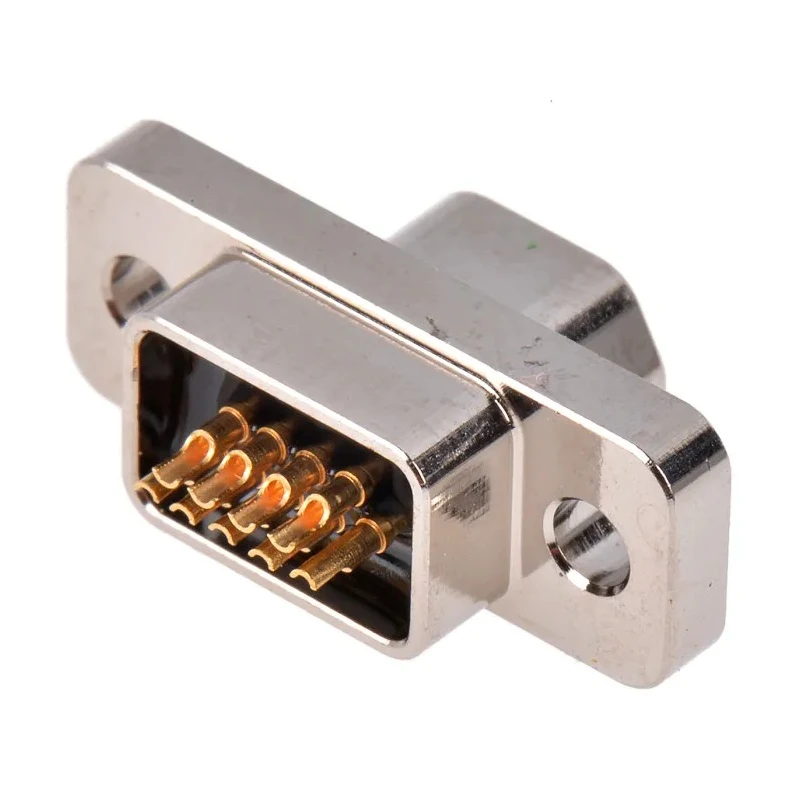

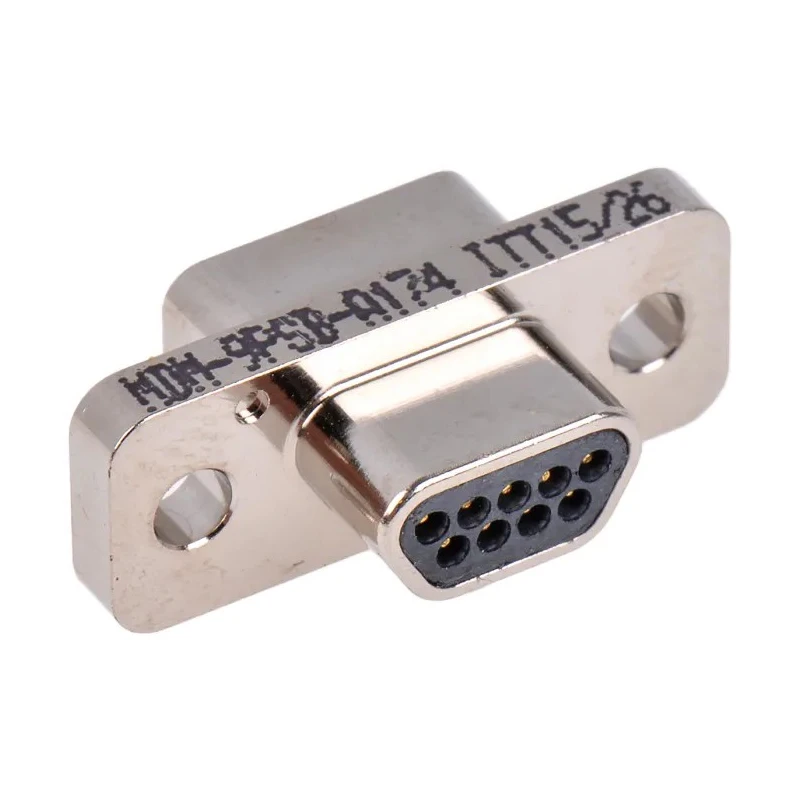

ITT Cannon MDM Series 9 Way Straight 1.27 mm Pitch Panel Mount Micro-D Aluminium Alloy Connector MDM-9PSB-A174

ITT Cannon MDM-9PSB-A174 is a high-density 9 way Micro-D panel mount connector with a 1.27 mm pitch, designed for demanding electronic and industrial environments. The straight orientation allows for efficient layout and interfacing on panels, making it ideal for military, industrial, commercial, and computing applications where reliability and compact form factor are critical.

The housing is made from aluminium alloy with electroless nickel plating, offering enhanced strength and excellent EMI/RFI shielding characteristics to protect sensitive signals. The contacts are made from copper alloy with high-quality gold plating, size 24 MICROPIN™ or MICROSOCKET™ contacts, ensuring superior conductivity and corrosion resistance.

The connector supports a continuous current of up to 3 amps and withstands operating temperatures from -55°C to 125°C, making it suitable for harsh environmental conditions. Termination is by solder, suitable for up to 26 AWG wiring, providing secure and reliable connections. Silicone elastomer compression interfacial seals are incorporated between each contact and the shell to guard against moisture ingress, enhancing the durability of the connector in humid or moisture-prone environments.

Mounting is facilitated by 2.31 mm diameter mounting holes, allowing stable and secure panel installation. Multiple termination variants are available within the MDM series, including solder pot terminations, harness wire terminations with MIL-spec color coding, and solid gold-plated wire options, providing flexibility to meet specific application needs.

Common use cases for the ITT Cannon MDM series connectors include military-grade electronics, industrial instrumentation, aerospace systems, commercial computing hardware, and other applications demanding compact, high-reliability D-Sub type connections.

Constructed with durable aluminium alloy housing for strength and EMI/RFI shielding. Features gold-plated copper alloy contacts sized 24 for optimum conductivity. Supports current capacity of 3A and temperature range from -55°C to 125°C.

Designed with solder termination type and male contact gender for easy assembly. Includes moisture sealed silicone elastomer compression seals for environmental protection. Micro-D connectors suitable for military, industrial, commercial, and computer interfacing applications.

Mounting holes sized 2.31 mm facilitate secure panel installation. Compliant with no specific standards or approvals but engineered for robust performance. Explore our wide range of industrial connectors at EnvMart to find complementary components for your design and application needs.
