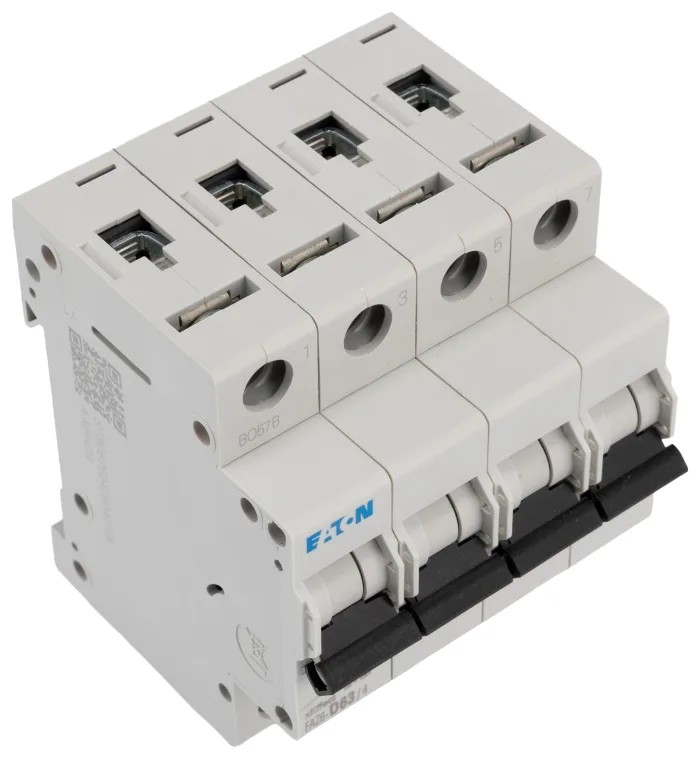

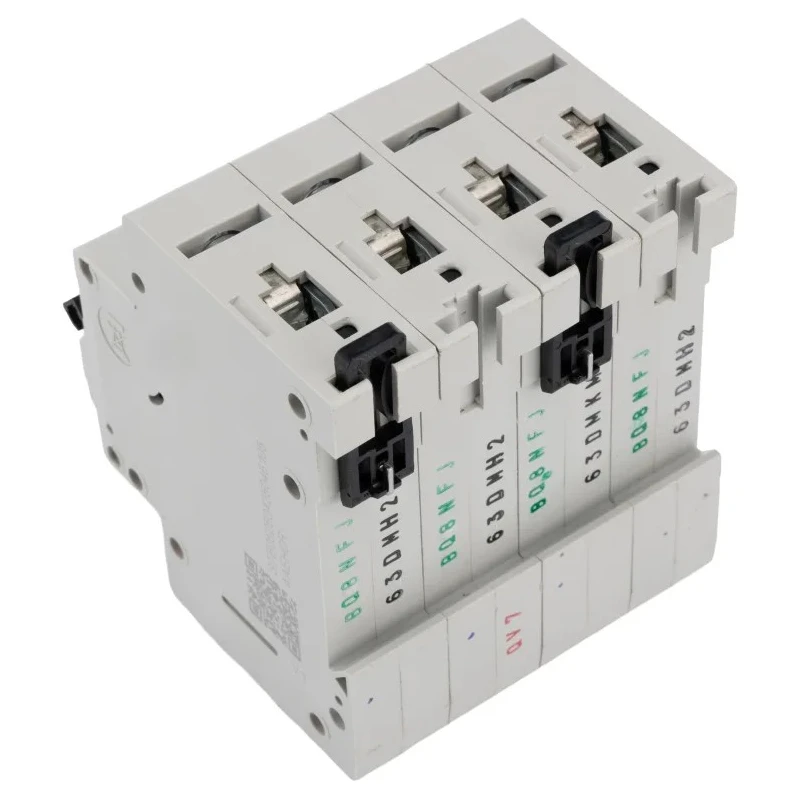

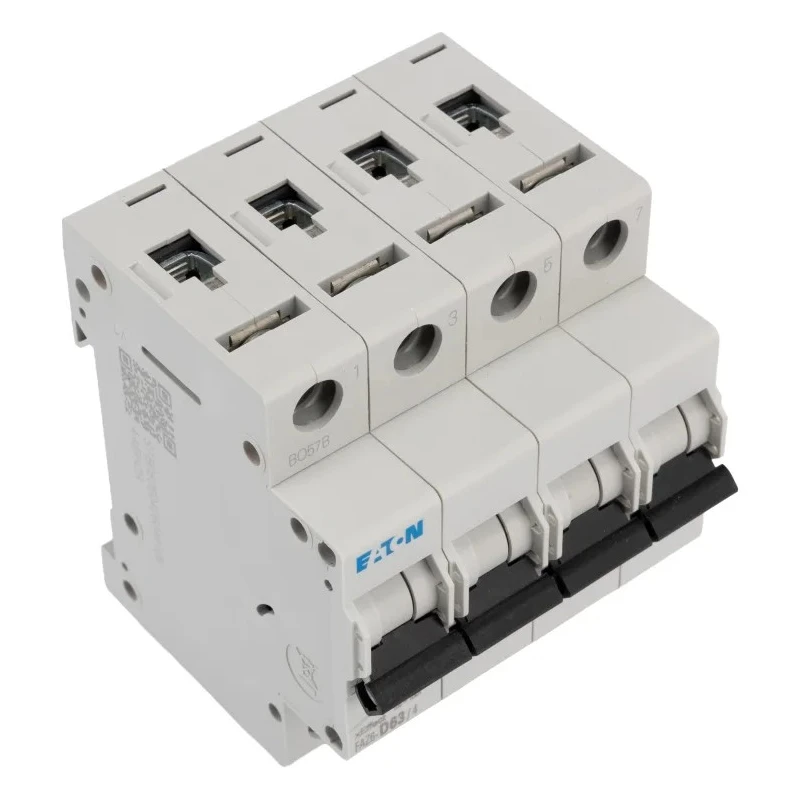

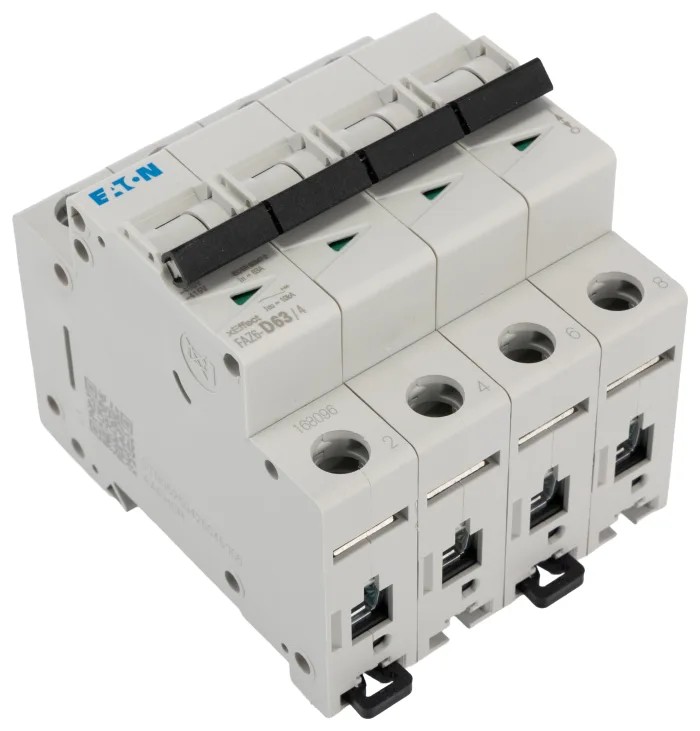

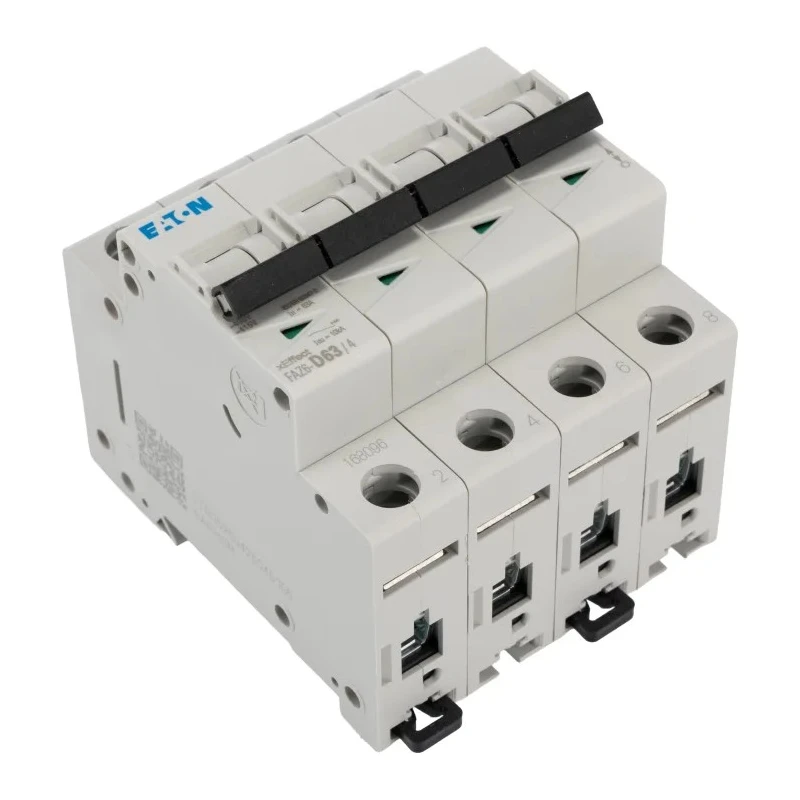

Eaton Miniature Circuit Breaker 4 Poles 63A Type D 400V AC 6 kA Breaking Capacity 168096 FAZ6-D63/4

Eaton 168096 FAZ6-D63/4 miniature circuit breaker is a 4-pole industrial-grade protective device rated at 63A, with a Type D tripping characteristic designed for harsh electrical environments. It is intended for use in commercial and industrial electrical distribution panels, machinery, and automation systems requiring robust circuit protection.

This circuit breaker operates safely at a rated AC voltage of 400V and offers a high breaking capacity of 6 kA, capable of reliably interrupting short circuits to protect electrical infrastructure from damage. Its instantaneous break time and Type D tripping allow it to handle surge currents from motors and transformers effectively, minimizing nuisance trips.

The device mounts easily on standard DIN rails, facilitating quick and secure installation. It features a toggle switch reset actuator for simple manual operation and screw terminals for reliable wiring connections. Eaton's xEffect series incorporates advanced engineering for safety, durability, and performance compliant with IEC and EN 60898 standards.

This miniature circuit breaker is suitable for usage in industrial automation, commercial electrical distribution, and large electrical panels requiring dependable overload and short circuit protection. The IP20 rating safeguards internal components from solid foreign objects while maintaining accessibility for maintenance.

High breaking capacity of 6 kA for enhanced circuit protection. Type D tripping characteristic suited for high inrush current applications. Easily mounts on DIN rail mounting systems for quick deployment. Toggle switch actuator provides straightforward manual reset.

Compact size, width 17.5 mm and depth 62 mm, optimizes panel space. Complies with IEC and EN 60898 standards for safety and reliability. Screw terminal design ensures secure and stable electrical connections.

This Eaton Miniature Circuit Breaker is an essential fitting for industrial, manufacturing, and commercial electrical safety, providing high performance to protect electrical circuits effectively. Explore more from Eaton’s xEffect series to equip your installations with advanced circuit protection solutions.
