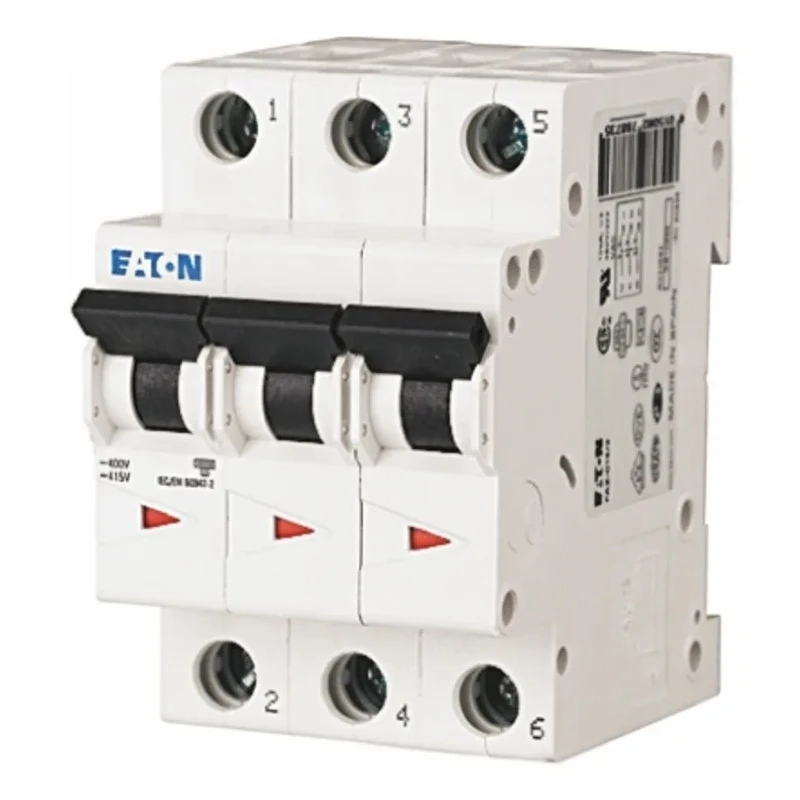

Eaton xEffect FAZ / FAZ6 Miniature Circuit Breaker, 3-Pole, 25A, Type B, 400V AC, 6 kA Breaking Capacity FAZ6

Eaton FAZ6 Miniature Circuit Breaker is a high-quality protective device designed for use in electrical distribution systems to guard circuits against damage caused by overcurrent and short circuits. This 3-pole breaker is rated for 25 amperes and type B tripping characteristics, making it suitable for moderate power applications in industrial, commercial, and residential electrical installations.

Operating at 400V AC, it offers a breaking capacity of 6 kA, ensuring that faults are isolated rapidly to protect connected equipment and maintain operational safety. The breaker is engineered for installation on DIN rails, providing flexibility and ease in electrical panel assembly. Twin-purpose terminals allow versatile wiring configurations, enhancing installation convenience.

With compact dimensions - 17.5 mm width, 80 mm height, and 62 mm depth - it enables space-saving panel designs without compromising performance. The thermal magnetic tripping mechanism combines thermal response for overload conditions and magnetic response for short circuits, delivering reliable and precise electrical protection.

235, CE, and VDE, ensuring robust safety and quality benchmarks. It is ideal for use in industrial automation, manufacturing facilities, commercial buildings, and infrastructure projects requiring dependable circuit protection.

The product is IP20 rated, providing protection against finger contact and solid objects greater than 12 mm, suitable for indoor electrical installations. It safeguards electrical circuits effectively, prolonging equipment longevity and reducing downtime caused by electrical faults.

Designed for 3-pole connections ensuring reliable multi-phase circuit protection. Rated current capacity of 25 amperes suitable for moderate electrical loads. Type B tripping characteristics for protection against short circuits and overloads.

Operates at a rated AC voltage of 400 volts compatible with industry standards. Capable of interrupting breaking currents up to 6 kiloamperes for safety compliance. Mounts easily on DIN rails for flexible installation in electrical panels.

Features twin-purpose terminals facilitating secure and versatile wiring connections. Compact dimensions of 17.5 mm width, 80 mm height, and 62 mm depth save panel space. Thermal magnetic tripping mechanism supports rapid response to fault conditions.

Compliance with standards IEC/EN 60947-2, IEC/EN 60898, UL 1077, CSA 22.2 No. 235, CE, and VDE ensures global safety and performance certifications. Explore Eaton’s range of high-quality circuit breakers and electrical protection devices at EnvMart to ensure safety and efficiency in your electrical installations.
