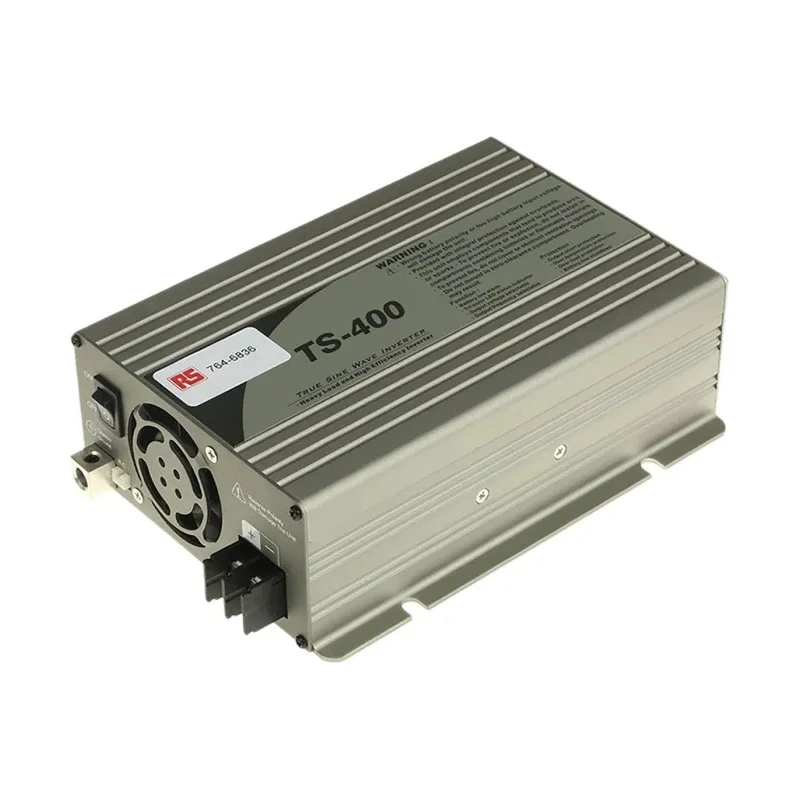

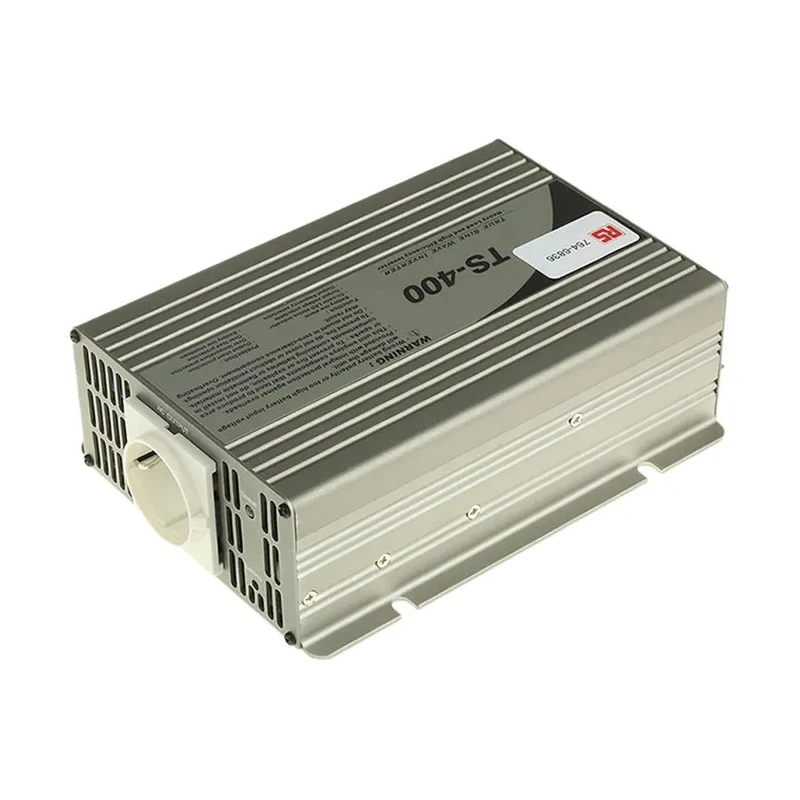

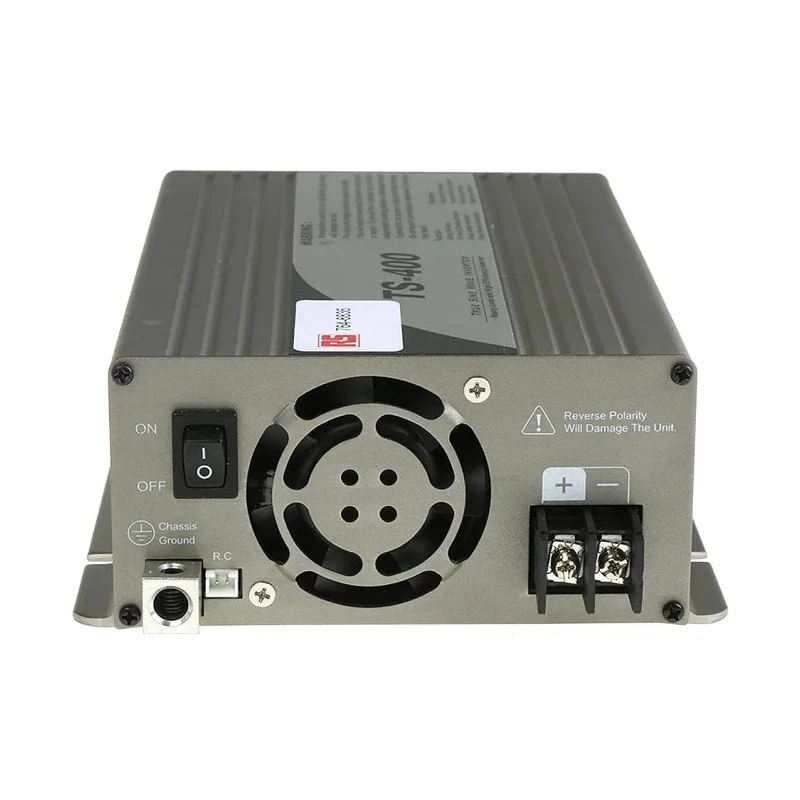

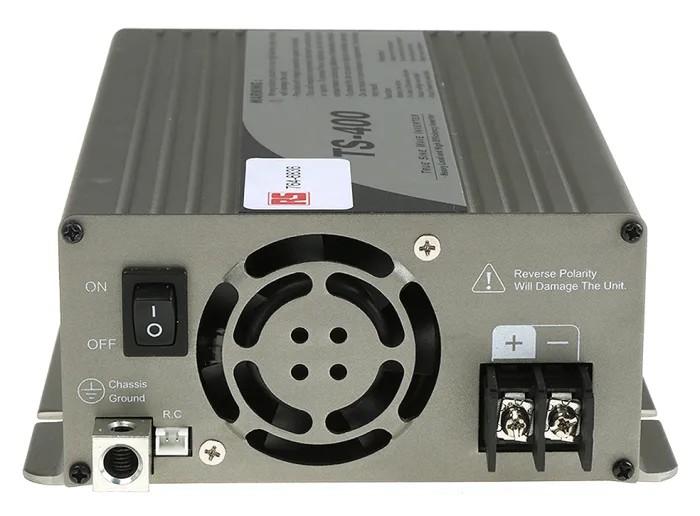

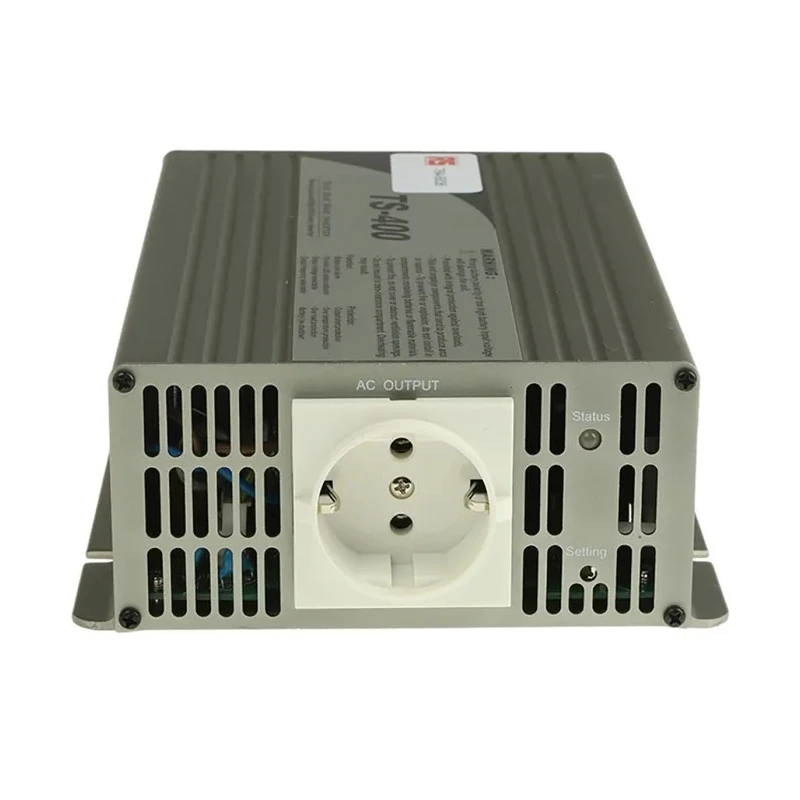

MEAN WELL Panel Power Inverter 400W 10.5V dc, 15V dc Input 230V ac Output TS-400-212B
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Efficiency | 86% |
| Length | 205mm |
| Model | TS-400-212B |
| Depth | 67mm |
| Gross Weight | 1.7kg |
| Width | 158mm |
| Output Power | 400W |
| Mount Type | Panel |
| Series | TS-400 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 104.7kH |
| Protection features | Reverse Polarity Protection |
| Input Voltage | 10.5, 15V dc |
| Output Voltage | 230V ac |
| Standards/Approvals | cULus, CE, FC |
| Output Connector Type | Euro 2-Pin |
Key Features
- Generates clean 230V AC output with low total harmonic distortion.
- High efficiency of up to 86 percent ensures energy-saving operation.
- Digital microprocessor control offers precise output voltage and frequency adjustments.
- Built-in reverse polarity protection extends device safety.
- Compact panel-mount design with dimensions 205x158x67 mm for easy installation.
- Capable of handling surge power up to 800W for short durations.
- Suitable for powering tools, portable equipment, yachts, and mobile homes.
- Operates reliably in an ambient temperature range from -10°C to 40°C.
Product Description
MEAN WELL TS-400-212B is a panel-mounted 400W true sine wave DC-AC power inverter designed for industrial, vehicular, and portable applications. With dual DC input voltages of 10.5V and 15V and a clean 230V AC output, the inverter supports a range of equipment requiring stable AC power where mains supply is unstable or unavailable.
This inverter features a high-frequency circuit topology and digital microprocessor control allowing adjustment of output AC voltage and frequency through its front panel for precise operation. Its efficiency rating of 86% contributes to lower energy losses and heat generation.
It provides continuous 400W power with surge capabilities of 460W (180 seconds), 600W (10 seconds), and 800W (30 utility cycles), enabling support for harsh or transient loads. The unit includes protection against reverse polarity, enhancing operational safety.
Physical dimensions are 205 mm length, 158 mm width, and 67 mm depth, with an approximate gross weight of 1.7 kg. Operating temperature range is -10°C to 40°C, making it suitable for various indoor and vehicular environments.
Typical use cases include power tools, office and portable equipment in vehicles, yachts, and mobile homes. This inverter offers a reliable power solution for scenarios where the mains voltage is poor or out of range.
Generates clean 230V AC output with low total harmonic distortion. High efficiency of up to 86 percent ensures energy-saving operation. Digital microprocessor control offers precise output voltage and frequency adjustments.
Built-in reverse polarity protection extends device safety. Compact panel-mount design with dimensions 205x158x67 mm for easy installation. Capable of handling surge power up to 800W for short durations. Suitable for powering tools, portable equipment, yachts, and mobile homes.
Operates reliably in an ambient temperature range from -10°C to 40°C. Explore more Power Inverters and related products at EnvMart for your electronic power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inverter provides a continuous output power of 400W.
It supports dual DC input voltages of 10.5V and 15V.
The output voltage of this inverter is 230V AC.
The inverter has an efficiency rating of up to 86%.
The physical dimensions are 205 mm in length, 158 mm in width, and 67 mm in depth.
The approximate gross weight of this model is 1.7 kg.
It operates reliably in an ambient temperature range from -10°C to 40°C.
It includes built-in reverse polarity protection to enhance safety.
This inverter is suitable for powering tools, portable equipment, yachts, and mobile homes.
It is capable of handling surge power up to 800W for short durations.
It complies with cULus, CE, and FC standards.
The output connector type is a Euro 2-Pin.
