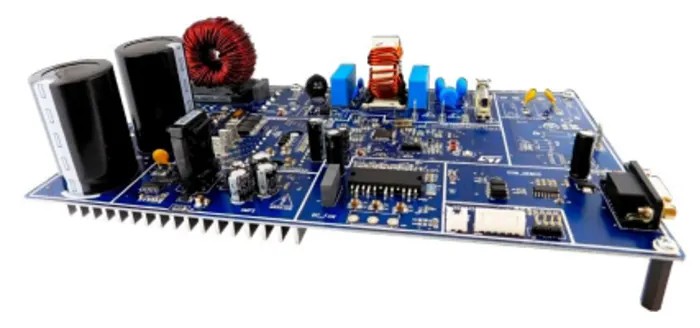

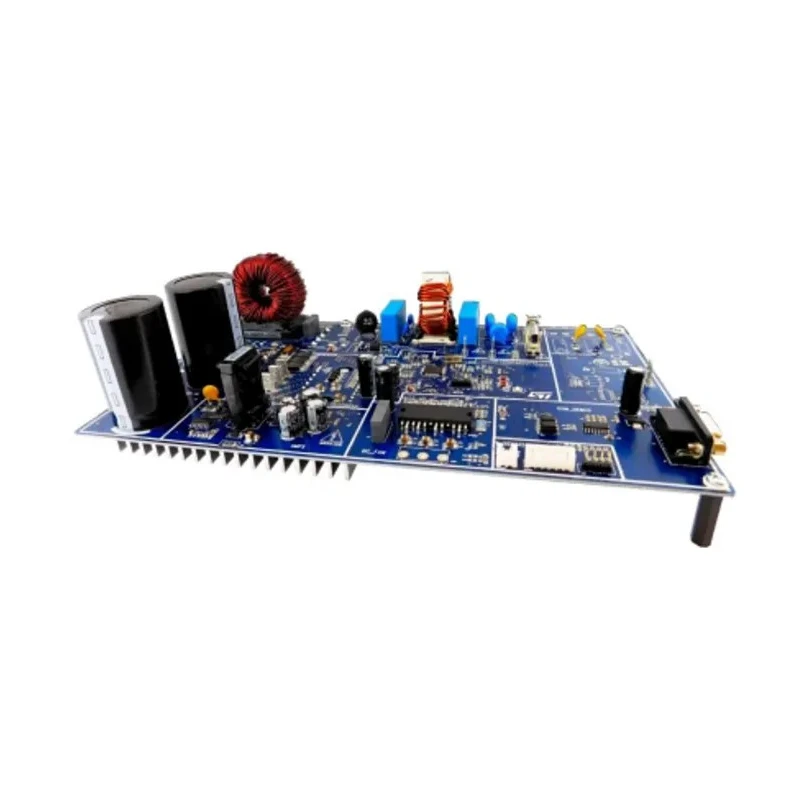

STMicroelectronics 1.5 kW Dual Motor Drive 3-Phase Motor Drive for STM32F303RB Digital PFC Based on SLLIMM STEVAL-CTM010V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-CTM010V1 |
| For Use With | Digital PFC Based on SLLIMM IPMs and STM32F3 |
| Standards/Approvals | RoHS |
| Kit Classification | Development Board |
| Featured Device | STM32F303RB |
| Kit Name | 1.5 kW Dual Motor Drive |
Key Features
- This board integrates two sensorless 3-phase motor drives with digital PFC boost topology controlled by STM32F303RB.
- Inverter stages use SLLIMM™ intelligent power modules for compact and rugged high-performance AC motor drives.
- The PFC section features STTH30AC06C ultra-fast rectifier and STGWT20H65FB trench gate field-stop IGBT components.
- Includes 2nd generation intelligent power modules STGIB10CH60TS-L and STGIPQ3H60T-HZ for compressors and fans.
- Ideal for evaluating room air conditioner solutions requiring digital power factor correction.
- Compliant with RoHS standards and manufactured in Italy.
Product Description
STMicroelectronics STEVAL-CTM010V1 is a 1.5 kW dual motor drive 3-phase motor drive development kit powered by the STM32F303RB ARM microcontroller, designed for digital power factor correction (PFC) applications using SLLIMM intelligent power modules (IPMs).
The board integrates two sensorless 3-phase motor drives plus a digital PFC boost topology stage all controlled via the STM32F303RB, benefiting from the ST FOC MC SDK firmware supporting field-oriented control (FOC) dual motor sensorless operation alongside PFC CCM mode.
Inverter stages use the SLLIMM IPM series designed for compact and rugged high-performance AC motor drive solutions, while the PFC section contains STTH30AC06C ultra-fast high voltage rectifier diodes and STGWT20H65FB trench gate field-stop IGBTs to ensure efficient power conversion.
The kit embeds second-generation SLLIMM intelligent power modules STGIB10CH60TS-L and STGIPQ3H60T-HZ specifically tailored for driving motors in compressors and fans of outdoor units, making it a suitable evaluation platform for room air conditioner applications requiring high efficiency and digital PFC.
This development board is RoHS compliant and manufactured in Italy, ensuring environmental and quality standards are met. Integrates two sensorless 3-phase motor drives plus digital PFC boost topology. Controls implemented with STM32F303RB ARM microcontroller and ST FOC MC SDK firmware.
High-performance inverter stages based on SLLIMM intelligent power modules. PFC section uses ultra-fast rectifiers and trench gate field-stop IGBTs. Optimized for room air conditioner and dual motor digital PFC applications.
Complies with RoHS standards and built in Italy. Explore more power management and motor drive solutions at EnvMart for industrial, HVAC, automation, and robotics development applications.
Explore more products in our Power Management Development Kit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 1.5 kW, suitable for dual motor drive applications.
It is powered by the STM32F303RB ARM microcontroller, which manages the control of the motor drives and digital PFC.
This board integrates two sensorless 3-phase motor drives, making it suitable for driving AC motors in applications such as compressors and fans.
The digital power factor correction (PFC) is designed to improve the efficiency of power conversion in applications like room air conditioners.
The inverter stages utilize SLLIMM intelligent power modules, specifically designed for compact and rugged high-performance AC motor drives.
The STEVAL-CTM010V1 complies with RoHS standards, ensuring it meets environmental regulations.
The kit includes the dual motor drive board, which integrates the motor drives and digital PFC, but does not specify additional accessories or components.
This model is manufactured in Italy, ensuring adherence to quality and environmental standards.
It is optimized for room air conditioner solutions requiring digital power factor correction and high efficiency.
The PFC section features STTH30AC06C ultra-fast rectifier diodes, which contribute to efficient power conversion.
The control is supported by the ST FOC MC SDK firmware, which enables field-oriented control for dual motor sensorless operation.
The STEVAL-CTM010V1 is classified as a development board, designed for evaluating motor drive solutions.
