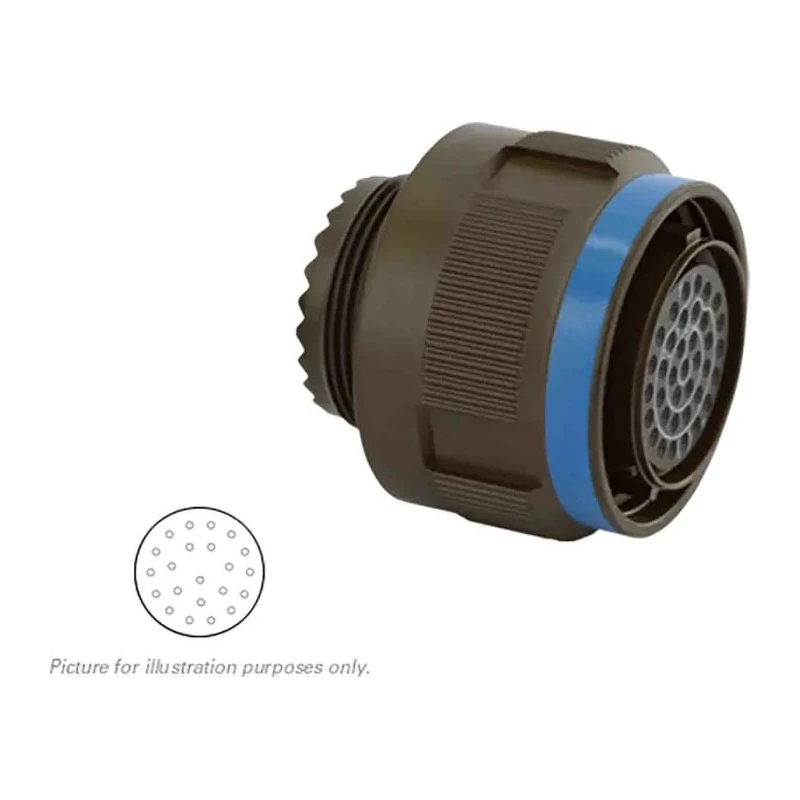

Souriau Sunbank by Eaton MIL Spec Circular Connector 22 Contacts Copper Alloy Straight Cable 8D513W35SN
Specifications
| Country of Origin | France |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8D513W35SN |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | 8D |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 13 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Cadmium |
Key Features
- Constructed with durable aluminium housing and cadmium-plated shell for enhanced corrosion resistance.
- Suitable for cable mount applications with crimp termination type ensuring secure connections.
- Meets MIL-DTL-38999 standard, series 8D screw coupling with quick action and self-locking mechanism.
- Rated for 5A current and designed to operate reliably between -65°C and 175°C temperature extremes.
- Provides excellent RFI-EMI 360-degree shielding and 100% scoop-proof design for reliable military and industrial use.
- Offers IP67 ingress protection, supporting rugged environments such as aerospace, marine, and defense applications.
- Designed for over 500 mating and unmating operations, with high shock resistance (300g, 3ms).
- Gold plating over nickel on contacts ensures optimal conductivity and durability.
Product Description
Souriau Sunbank by Eaton 8D513W35SN MIL Spec Circular Connector is a 22-way cable connector constructed with a copper alloy for female contacts and a male connector gender. It features a straight orientation designed for cable mounting with crimp termination. This circular connector is built to the MIL-DTL-38999 military standard, series 8D, ensuring ruggedness and high reliability.
Housing is made of aluminium with cadmium plating to resist corrosion and enhance durability in harsh environments. It has a shell size 13 and utilizes a quick action screw coupling that features a self-locking mechanism to prevent accidental unscrewing during use. The connector is 100% scoop-proof with RFI-EMI shielding providing 360-degree protection against electromagnetic interference.
Rated for 5A current, this connector can operate under extreme temperatures ranging from -65°C minimum to 175°C maximum, making it suitable for military, aerospace, marine, offshore, and industrial applications. It withstands high shock loads of 300g at 3ms and is qualified to endure over 500 mating and unmating cycles without performance degradation.
Contacts are plated with gold over nickel to ensure reliable electrical contact and longevity. The product is IP67 rated, offering protection from dust and immersion in water, which is crucial for demanding environments.
This connector is designed to provide robust, high-density contact performance with reliable mechanical and electrical features, tailored for applications requiring military-grade quality and long-term durability.
Durable aluminium housing with cadmium plating for corrosion resistance. Quick-action and self-locking screw coupling prevents accidental disconnection. High resistance to shock and temperature extremes for rugged applications.
High contact density with 22 contacts, ensuring compact electrical connections. RFI-EMI 360-degree shielding and scoop-proof design for EMI protection. Gold over nickel plated contacts for enhanced conductivity and durability.
IP67 ingress protection rating suitable for harsh industrial and military environments.
Ideal for military, aerospace, marine, offshore, and industrial sectors requiring reliable civil and military aeronautics connectors. Discover more high-quality Mil Spec Circular Connectors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 5A.
This model operates reliably between -65°C and 175°C.
The connector features 22 contacts.
It uses a crimp termination type for secure connections.
It has an IP67 ingress protection rating, making it suitable for harsh environments.
The housing is made of aluminium with cadmium plating, and the contacts are copper alloy with gold over nickel plating.
It provides RFI-EMI 360-degree shielding for protection against electromagnetic interference.
The shell size is 13.
It features a screw coupling mating type with a self-locking mechanism.
It is designed to withstand over 500 mating and unmating operations without performance degradation.
It is suitable for military, aerospace, marine, offshore, and industrial applications.
It has a high shock resistance rating of 300g at 3ms.
