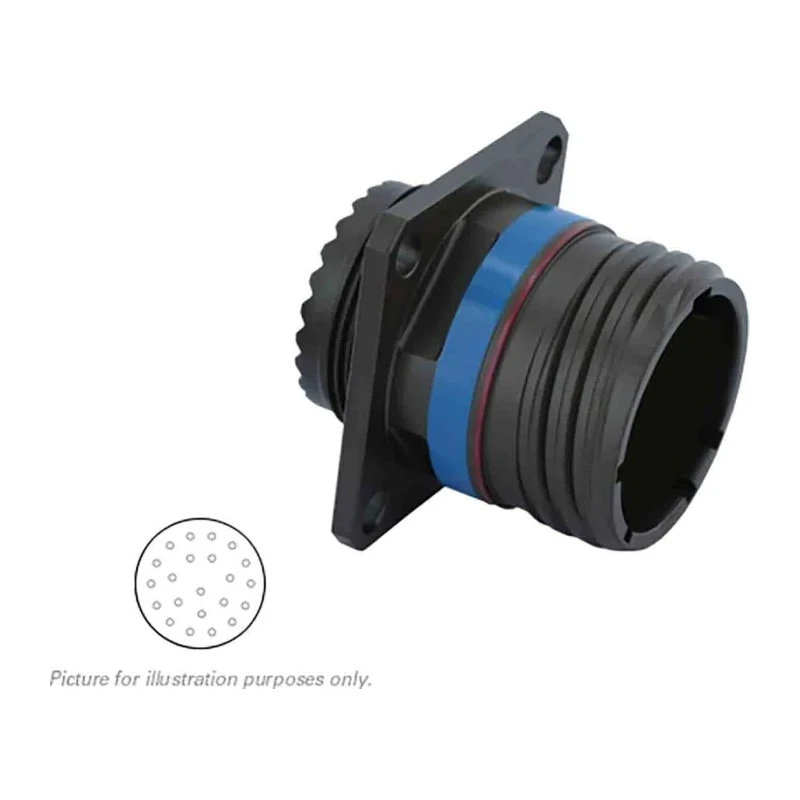

Souriau Sunbank by Eaton MIL Spec Circular Connector 22 Way Panel Mount Straight Copper Alloy 5A IP67 8D013Z35PN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 5A |
| Model | 8D013Z35PN |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | 8D |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 22 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 13 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Nickel Zinc |
Key Features
- Designed to MIL-DTL-38999 military standards providing robust performance.
- Features a panel mount type with screw coupling for secure connections.
- Supports 5A current with 22 contact points for complex wiring applications.
- Constructed with aluminium housing and nickel zinc plated shell for corrosion resistance.
- Rated IP67 for dust and water ingress protection ensuring durability.
- Operates effectively within temperature range of -65°C to 200°C.
- Provides a high mating cycle durability of over 500 operations.
- Contacts are gold plated over nickel for enhanced conductivity and corrosion resistance.
Product Description
Souriau Sunbank by Eaton 8D013Z35PN MIL Spec Circular Connector is a 22 way panel mount connector with a straight copper alloy contact design, delivering reliable electrical connections under extreme environmental conditions.
This connector complies with MIL-DTL-38999 series III military standards and is engineered for demanding military and civil aerospace, marine, offshore, and industrial applications. It features an aluminium housing with a durable nickel zinc plated shell providing excellent mechanical strength and corrosion resistance.
The connector is rated IP67, offering full protection against dust ingress and water immersion, making it ideal for use in harsh environmental conditions. It supports a current rating of 5A through 22 high-density contacts that are gold plated over nickel to ensure superior conductivity and resistance to corrosion.
Built to withstand severe shock and vibration (300g, 3 ms) and extreme temperatures from -65°C up to 200°C, this connector offers exceptional durability with over 500 mating cycles. Coupling is secured via a screw coupling mechanism that enhances connection reliability with a self-locking feature.
Square flange receptacle with threaded coupling ensures secure mounting on panels while providing EMI shielding with shell-to-shell bottoming. This connector is 100% scoop proof and polarized by angular positioning of keys to prevent mismating.
Meets MIL-DTL-38999 series III type standards. High contact density with 22 copper alloy contacts. Aluminium housing with nickel zinc plating for corrosion resistance. Gold over nickel plating on contacts for enhanced electrical performance.
Panel mount with secure screw coupling. IP67 ingress protection for dust and water resistance. Operational temperature range from -65°C to 200°C. Designed for military, aerospace, marine, and industrial applications.
This high-performance MIL Spec circular connector from Souriau Sunbank by Eaton is suitable for integration into systems requiring ruggedized, high-reliability electrical connections. Explore EnvMart's comprehensive range of Mil Spec Circular Connectors for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5A through its 22 contacts.
It is rated IP67, providing full protection against dust ingress and water immersion.
The connector operates effectively within a temperature range of -65°C to 200°C.
This unit features 22 high-density contacts for complex wiring applications.
It has an aluminium housing with a nickel zinc plated shell and copper alloy contacts that are gold plated over nickel.
It features a screw coupling mechanism that enhances connection reliability and includes a self-locking feature.
This connector complies with MIL-DTL-38999 series III military standards.
It is designed for panel mount installation with a square flange receptacle.
The mating type for this model is screw coupling, ensuring secure connections.
It is built to withstand over 500 mating cycles, ensuring durability in use.
The connector features male contacts and a female connector gender configuration.
It is designed for military, aerospace, marine, and industrial applications, providing robust performance in demanding environments.
