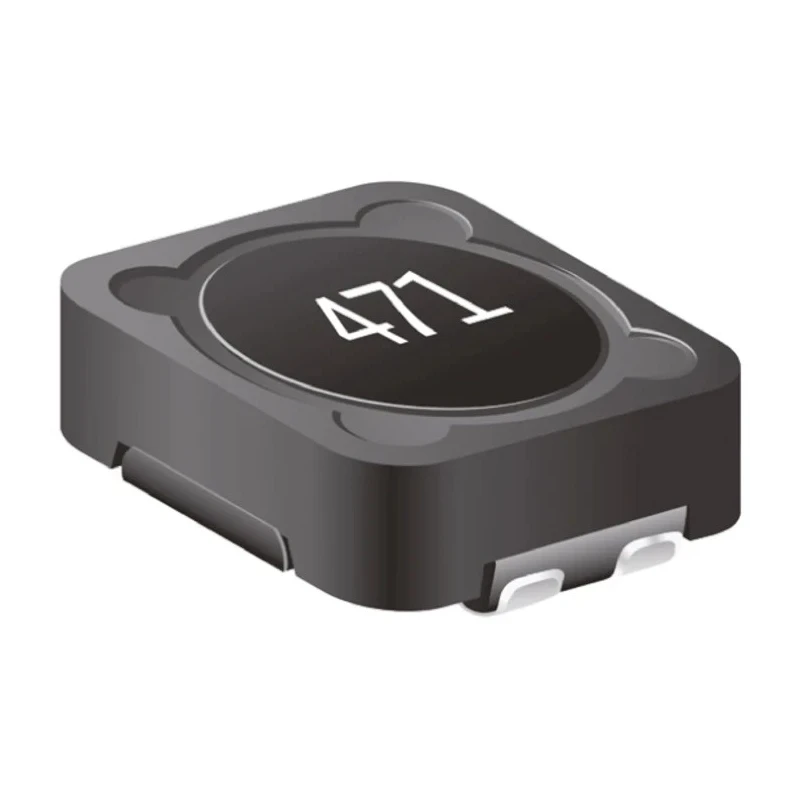

Bourns Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 mH Dual ±20 % 260 mA Idc SRF0703
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 3.4mm |
| Length | 7.6mm |
| Model | SRF0703 |
| Depth | 7.6mm |
| Packaging | Reel |
| Series | SRF0703 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Package/Case | 0703 |
| Maximum DC Current | 260mA |
| Maximum DC Resistance | 24.42Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Applications include | Sepic topology and Power supplies in portable and fixed equipment |
| Multiple applications | Parallel, series, dual inductor and transformer |
Key Features
- The inductor features a compact 0703 package case suitable for surface mounting.
- Magnetically shielded construction minimizes electromagnetic interference.
- Maximum operating temperature rated at 125°C for durability in demanding environments.
- Dual winding configuration supports parallel, series, dual inductor, and transformer applications.
- Core material is ferrite with a moulded construction ensuring robust performance.
- Maximum DC resistance is 24.42 Ω, optimized for power supplies and Sepic topology designs.
- Designed for industrial and portable electronic equipment requiring stable inductance characteristics.
- RoHS compliant ensuring environmentally safe construction without hazardous substances.
Product Description
Bourns SRF0703 shielded wirewound surface mount inductor with ferrite core combines compact size and robust performance for advanced electronics applications. This dual winding inductor offers a nominal inductance of 1 mH with a tolerance of ±20 % and supports a maximum DC current of 260 mA, making it ideal for various power supply designs including Sepic topology.
The 0703 package case measures 7.6 mm in length, 3.4 mm in height, and 7.6 mm in depth, optimized for compact surface mount PCB layouts. Its magnetically shielded construction reduces electromagnetic interference, ensuring reliable performance in sensitive circuits.
Constructed with a ferrite core and moulded design, this inductor features a maximum DC resistance of 24.42 Ω and can operate within a temperature range of -40°C to 125°C, suitable for both portable and fixed equipment in industrial, manufacturing, and commercial settings.
The dual winding configuration allows versatile use cases such as parallel, series inductors, dual inductors, and transformers. It facilitates flexible circuit design approaches, particularly in power electronics and signal conditioning.
Compact 0703 package for space-saving surface mount applications. Magnetic shielding to minimize radiated interference. Ferrite core offers high permeability and low losses. Dual winding allows multiple electrical configurations.
Wide operating temperature range from -40°C to 125°C. Ideal for power supplies and portable/fixed electronic devices. RoHS compliant for environmental safety. Surface mount termination style for automated PCB assembly.
This series, SRF0703, supports engineers and designers in creating efficient, reliable power and signal circuits with minimized electromagnetic interference and compact form factor. Explore further products from Bourns for comprehensive electronic component solutions in industrial automation, consumer electronics, and communication equipment.
Discover trusted components like the Bourns SRF0703 Surface Mount Inductors on EnvMart for your advanced electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRF0703 has a nominal inductance of 1 mH with a tolerance of ±20%.
This inductor supports a maximum DC current of 260 mA.
The dimensions of this model are 7.6 mm in length, 3.4 mm in height, and 7.6 mm in depth.
The maximum operating temperature is rated at 125°C.
It can operate at a minimum temperature of -40°C.
It features a magnetically shielded wirewound construction with a ferrite core, designed to minimize electromagnetic interference.
The maximum DC resistance is 24.42 Ω.
This inductor is suitable for applications including Sepic topology and power supplies in both portable and fixed equipment.
The termination style is surface mount, which is suitable for automated PCB assembly.
The dual winding configuration allows for versatile applications such as parallel, series inductors, dual inductors, and transformers, facilitating flexible circuit design.
Yes, the Bourns SRF0703 is RoHS compliant, ensuring it is environmentally safe without hazardous substances.
This inductor is packaged in a reel, suitable for surface mount applications.
