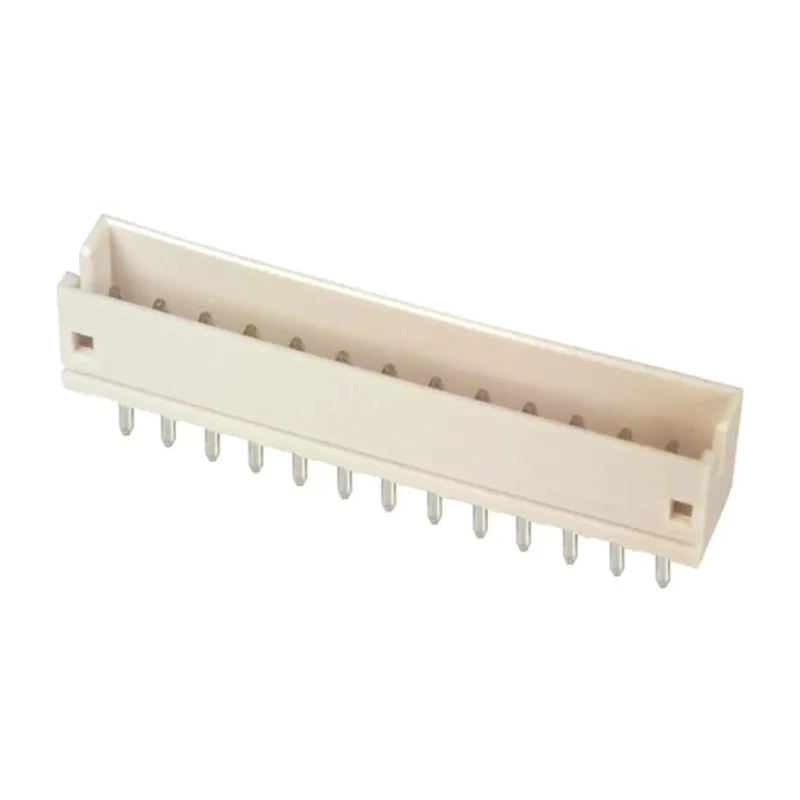

JST ZH Series Top Entry Through Hole PCB Header, 13 Contacts, 1.5 mm Pitch, Shrouded B13B-ZR (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST ZH Series Top Entry Through Hole PCB Header, 13 Contacts, 1.5 mm Pitch, Shrouded B13B-ZR (LF)(SN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	Korea
Voltage	50V
Brand	JST
Orientation	Top Entry
Current	1A
Model	B13B-ZR (LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	ZH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Interfaces	lances
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	13
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2.4mm

Key Features

Compact and low profile design suitable for space-constrained applications.
Housing made of polyamide ensures durable insulation.
Contact material is brass with tin plating for conductivity and corrosion resistance.
Operating temperature range from -25°C to 85°C enables use in diverse environments.
Single row connector with 13 male contacts and 1.5 mm row pitch.
Contact pin length is 2.4 mm, compatible with PCB thickness from 0.6 to 1.2 mm.
Designed to be compatible with JST ZR insulation displacement connectors.
Ideal for electronic, industrial, and manufacturing applications requiring wire-to-board connections.

Product Description

JST B13B-ZR (LF)(SN) is a top entry through hole PCB header from the ZH series designed for compact and reliable wire-to-board connections. It features 13 male contacts spaced at a fine 1.5 mm pitch, ensuring precise mating and signal integrity.

The header utilizes a durable polyamide housing that offers strong insulation and supports a robust, shrouded design that protects the contacts and prevents misalignment during mating. The brass contacts are tin plated, combining excellent electrical performance with corrosion resistance.

This PCB Header supports a voltage rating of 50 volts and current carrying capacity of 1 ampere, suitable for a wide range of electronic device applications. It operates effectively from -25°C to 85°C, making it reliable in varying environmental conditions.

The 1-row configuration with a 1.5 mm row pitch and mating pin length of 2.4 mm fits typical PCB thicknesses ranging between 0.6 mm and 1.2 mm. The compact size with a low profile design helps save space on densely packed printed circuit boards.

The connector is intended for industrial, electronics manufacturing, telecommunications, and other commercial electronics assembly use cases. It is compatible with JST ZR insulation displacement connectors facilitating flexible assembly options.

Compact and low profile design. Polyamide housing for insulation strength. Brass contacts with tin plating. Voltage rating: 50V, current: 1A. Operating temperature range: -25°C to 85°C. Single row, 13 contacts, 1.5 mm pitch.

Mating pin length: 2.4 mm, PCB thickness 0.6 - 1.2 mm. Compatible with JST ZR insulation displacement connectors. Ideal for electronics, industrial, and manufacturing applications. Explore our wide range of PCB connectors and headers for high quality and reliable electronic assembly solutions at EnvMart.
