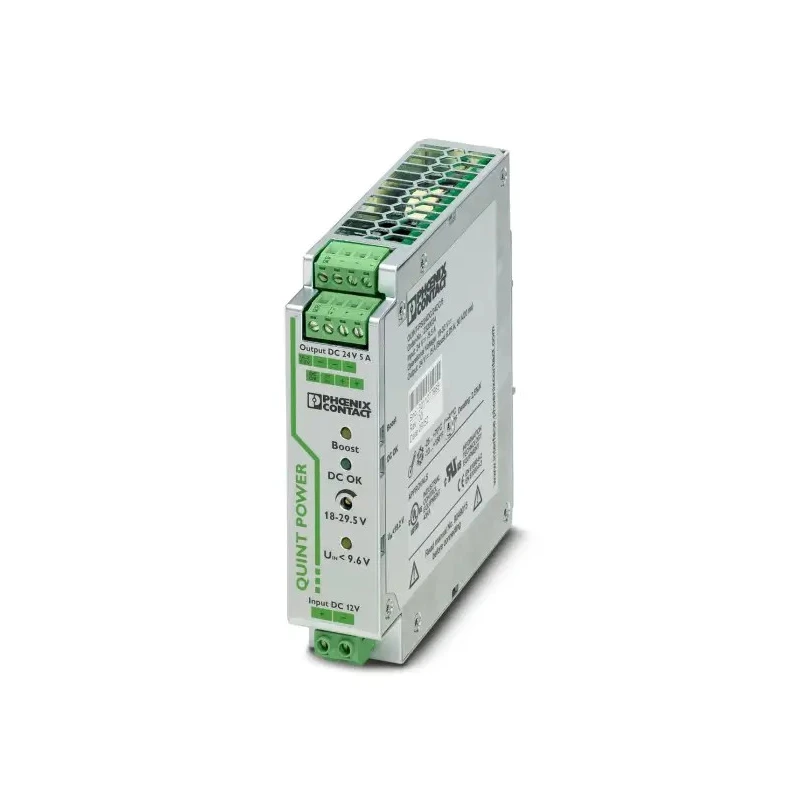

Phoenix Contact QUINT-PS/12DC/24DC/5 DC/DC Converter 24V DC 5A 18V-29.5V Output Adjustable 120W DIN Rail Mount 2320131

Phoenix Contact 2320131 QUINT-PS/12DC/24DC/5 is a highly reliable DC/DC Converter providing 24V DC output with a 5A current capacity and 120W maximum output power. This model supports input voltage range from 12V to 18V DC, making it suitable for various industrial, manufacturing, and automation applications requiring stable power supply.

The device features advanced selective fuse breaking (SFB) technology that magnetically trips at six times the nominal current, ensuring robust protection of connected systems. Its galvanic isolation offers safe separation of electrical circuits, reducing maintenance risks and enhancing system reliability.

With an output voltage adjustment range from 18V to 29.5V, it allows precise voltage tuning for sensitive devices or specific equipment needs. The unit boasts a ripple and noise level of only 10mV peak-to-peak, delivering clean and stable power output.

Designed for DIN Rail mounting, its compact dimensions (130mm length, 32mm width, 125mm depth) and 700g weight facilitate easy installation in control panels. The converter operates efficiently at 90% efficiency, supporting continuous performance even under harsh temperature conditions from -25°C up to 70°C.

This robust converter is ideal for applications in electrical systems monitoring, voltage regeneration over long cable runs, and creating independent supply systems through electrical isolation. Its static power reserve of 125% nominal current ensures reliable startup during difficult load conditions, making it suited for industrial and automation use cases.

The Phoenix Contact brand is renowned for quality and innovation in electronic components and power supply solutions. This QUINT-PS series converter meets multiple standards and approvals, including cUL, EAC, UL, and cULus.

Supports input voltages from 12 to 18 V DC. Provides a regulated output voltage of 24 V DC adjustable up to 29.5 V. Delivers continuous output current of 5 A with 120 W power rating. Includes galvanic isolation with an isolation voltage of 1.5 kV DC.

Features selective fuse breaking technology for system protection. Compact DIN Rail mount with low ripple noise of 10 mV peak-to-peak. Robust operation in wide temperature range -25°C to +70°C. Rated MTBF of 1,005,000 hours ensures high reliability.

Explore EnvMart's Electronics & Electricals category for premium DC/DC Converters and power management solutions by Phoenix Contact designed for industrial, manufacturing, HVAC, and automation applications.
