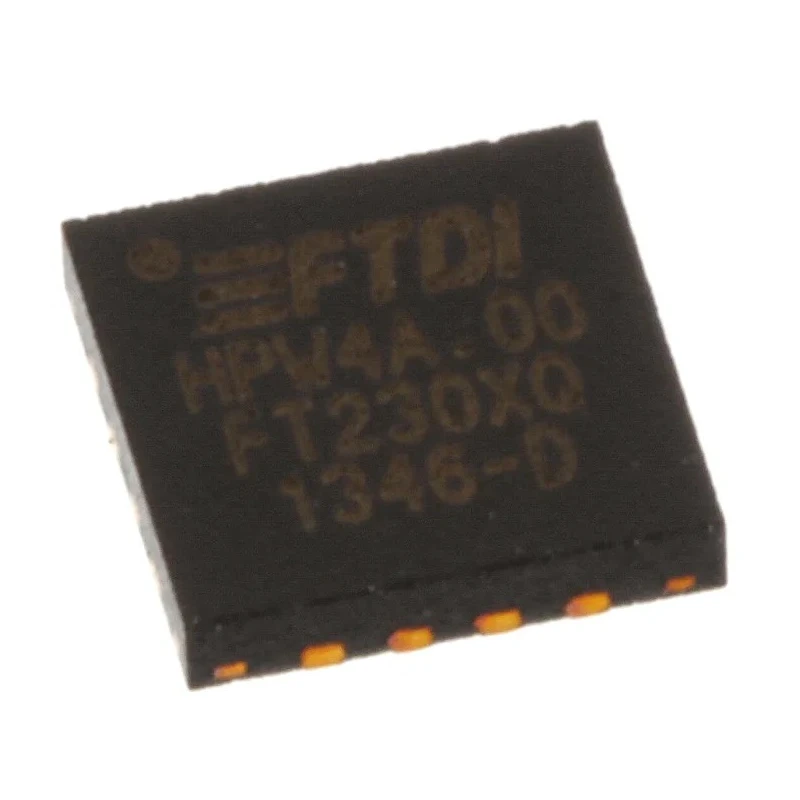

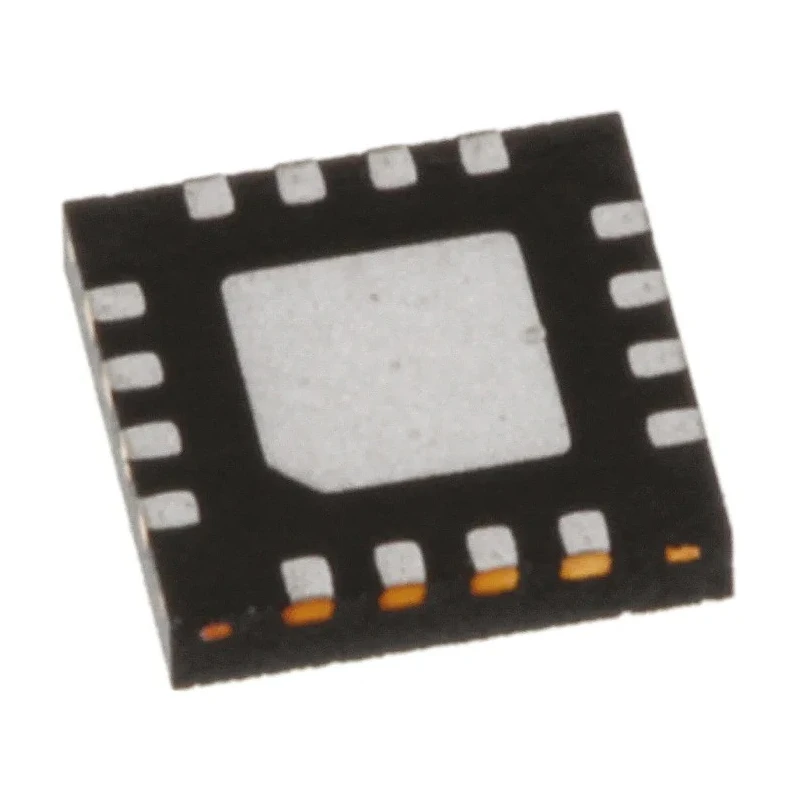

FTDI Chip UART RS232, RS422, UART, RS485, SIE 16-Pin Surface Mount QFN Interface IC FT230XQ-R
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | FTDI Chip |
| Height | 800μm |
| Length | 4mm |
| Model | FT230XQ-R |
| Mount Type | Surface |
| Series | FT230X |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB suspend mode current of 125 μA |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 5V |
| Maximum Data Rate | 3MBd |
| Standard Supported | RS232, RS422, UART, RS485, SIE |
| Transmit FIFO | 512bit |
| Receive FIFO | 512bit |
| FTDI Chip USB Controller 16-Pin QFN, FT230XQ-TBrand | FTDI Chip |
Key Features
- Supports multiple UART standards including RS232, RS422, UART, RS485, and SIE.
- Single channel interface with 512bit transmit and receive FIFO buffers.
- Maximum data rate up to 3 MBaud for efficient communication.
- Operates across supply voltages from 3.3V to 5V with low power consumption.
- Surface mount QFN package with 16 pins and compact size of 4 mm length and 800 μm height.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
- Fully integrated MTP memory and internal clock circuit requiring no external crystal.
- Configurable CBUS I/O pins and supports asynchronous and synchronous bit bang modes.
Product Description
FTDI Chip FT230XQ-R is a high-performance UART interface integrated circuit supporting multiple serial standards including RS232, RS422, UART, RS485, and SIE, ideal for embedded industrial and electronic communication applications.
This device integrates a full-speed USB to UART conversion with a 16-pin QFN surface mount package designed for compact PCB real estate. It features a fully integrated MTP memory, internal clock generation eliminating the need for external crystals, and CBUS I/O pins configurable to support diverse functionality requirements.
The FT230XQ-R supports a 512bit transmit and receive FIFO buffer allowing high-rate data flow up to 3 MBaud while maintaining low power consumption, making it suitable for power-sensitive designs needing a robust interface.
Operating from 3.3V to 5V supply voltages and covering a wide industrial temperature range from -40°C to 85°C, it is engineered for rugged environments and extended reliability. The nominal operational current is approximately 8 mA with an ultra-low USB suspend current of 125 μA.
This product is manufactured in Taiwan, ensuring compliance with quality standards for electronic components. The 16-pin QFN package measures 4 mm in length and 800 μm in height, providing a compact yet industrial-grade solution.
Supports multiple UART and serial communication standards. Embedded full-speed USB to UART conversion with integrated clock circuit. Low power design optimized for industrial applications. Wide temperature and voltage operation range.
Surface mount 16-pin QFN compact packaging. Integrated MTP memory and configurable I/O pins. High data throughput with large FIFO buffers. Manufactured to high reliability standards in Taiwan.
This interface IC is widely applicable in embedded system designs, telecommunications equipment, industrial control devices, and electronic instrument communication modules. Its robustness and flexible configuration make it a preferred choice for modern electronics requiring USB to serial connectivity.
Explore more Semiconductor and Interface IC solutions at EnvMart to meet various industrial and electronic design challenges.
Explore more products in our Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is up to 3 MBaud, allowing for efficient communication.
It supports multiple UART standards including RS232, RS422, UART, RS485, and SIE.
The FT230XQ-R operates across supply voltages from 3.3V to 5V.
This model has a wide operating temperature range from -40°C to 85°C, suitable for industrial environments.
It comes in a 16-pin QFN package with a compact size of 4 mm in length and 800 μm in height.
It features fully integrated MTP memory, eliminating the need for external memory components.
This interface IC supports a single channel for communication.
The transmit and receive FIFO buffers are both 512 bits, allowing for high-rate data flow.
No, it has an internal clock circuit that eliminates the need for an external crystal.
The nominal operational current is approximately 8 mA, with a USB suspend current of 125 μA.
This model uses a surface mount type for installation.
It is widely applicable in embedded system designs, telecommunications equipment, industrial control devices, and electronic instrument communication modules.
