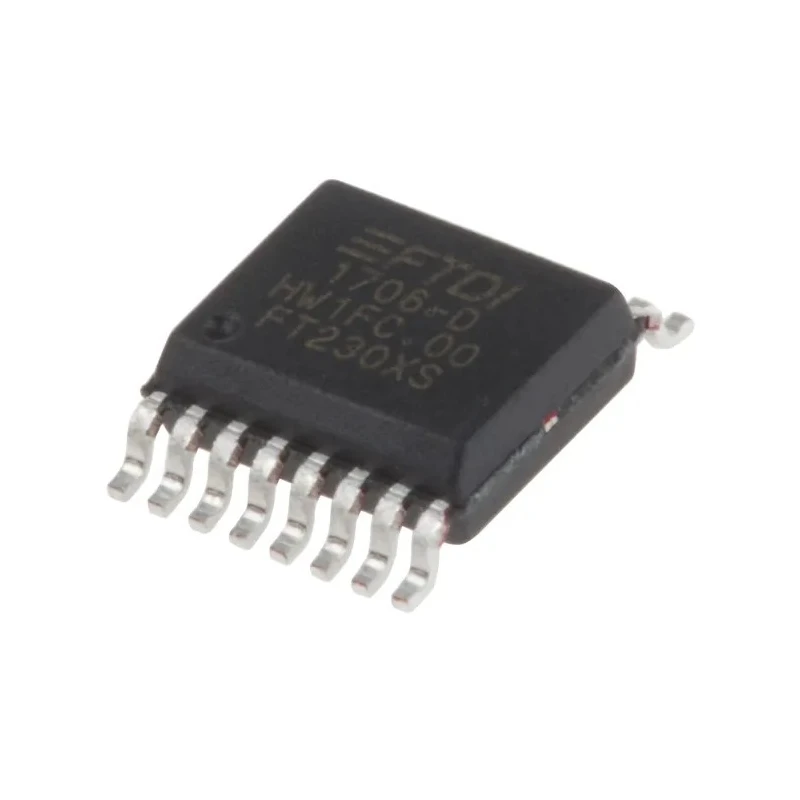

FTDI Chip UART SIE RS422 UART RS232 RS485 16-Pin SSOP Interface IC FT230XS-R
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | FTDI Chip |
| Height | 1.76mm |
| Length | 6.2mm |
| Model | FT230XS-R |
| Mount Type | Surface |
| Series | FT230X |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB suspend mode current of 125 μA |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 5V |
| Maximum Data Rate | 3MBd |
| Standard Supported | SIE, RS422, UART, RS232, RS485 |
| Transmit FIFO | 512bit |
| Receive FIFO | 512bit |
Key Features
- This device is designed for full-speed USB to UART conversion applications.
- It features a fully integrated MTP memory and integrated clock circuit, eliminating the need for an external crystal.
- Operating supply voltage ranges from 3.3V to 5V with low power consumption of 8 mA during operation.
- Supports asynchronous and synchronous bit-bang modes for flexible communication.
- Functions efficiently with USB host controllers using minimal bandwidth.
- Equipped with 512-bit transmit and receive FIFO buffers for reliable data handling.
- Maximum data rate supported is 3 Mbaud, suitable for a variety of serial communication tasks.
- Device operates reliably within a wide temperature range of -40°C to 85°C.
Product Description
FTDI Chip FT230XS-R is a full-speed USB to UART interface IC encapsulated in a 16-pin SSOP package, supporting SIE, RS422, UART, RS232, and RS485 standards. Designed for seamless integration, it features integrated clock, power-on reset, LDO regulators, and MTP memory to reduce component count.
The device operates over a supply voltage range of +3.3 V to +5.25 V with typical current consumption of 8 mA during active operation and a low USB suspend mode current of 125 μA, making it highly power efficient for embedded systems.
With 512-bit transmit and receive FIFO buffers, the FT230XS-R ensures smooth data flow with a maximum data rate of 3 Mbaud. Both asynchronous and synchronous bit-bang modes are supported for flexible serial communication applications.
The device is rated for operation in harsh environments from -40°C up to 85°C, suitable for industrial, commercial, and embedded communication systems. Its compact 16-pin SSOP footprint (6.2 mm length and 1.76 mm height) facilitates ease of PCB integration for space-constrained applications.
Ideal for applications such as embedded system interfaces, USB to serial conversion, and industrial communication protocols, the FT230XS-R provides a robust solution for integrating USB connectivity into devices.
This device is designed for full-speed USB to UART conversion applications. Features fully integrated MTP memory and clock generation, reducing external component requirements. Supports low power consumption with 8 mA operating current and minimal USB suspend current.
Asynchronous and synchronous bit-bang modes for advanced communication options. Compatible with SIE, RS422, UART, RS232, and RS485 standards. Operating temperature range from -40°C to 85°C enhances reliability in industrial environments.
Compact 16-pin SSOP package allows easy installation in embedded and industrial systems. Explore more electronic components and interface IC solutions with EnvMart for your industrial and manufacturing applications.
Explore more products in our Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FT230XS-R supports a maximum data rate of 3 Mbaud, making it suitable for various serial communication tasks.
It operates over a supply voltage range of 3.3V to 5.25V, allowing for flexibility in different applications.
This model supports SIE, RS422, UART, RS232, and RS485 standards, providing versatile connectivity options.
The device operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environments.
During operation, it typically consumes 8 mA, and in USB suspend mode, it has a current of 125 μA.
The FT230XS-R is encapsulated in a 16-pin SSOP package, which is suitable for surface mounting.
Yes, it features integrated MTP memory and an integrated clock circuit, which reduces the need for external components.
It is equipped with 512-bit transmit and receive FIFO buffers for efficient data handling.
The mounting type for this model is surface mount, facilitating easy integration into PCB designs.
This model supports both asynchronous and synchronous bit-bang modes, allowing for flexible communication options.
The height of the device is 1.76 mm, and its length is 6.2 mm, making it compact for embedded applications.
The FT230XS-R is manufactured in Taiwan, reflecting its origin in the semiconductor industry.
