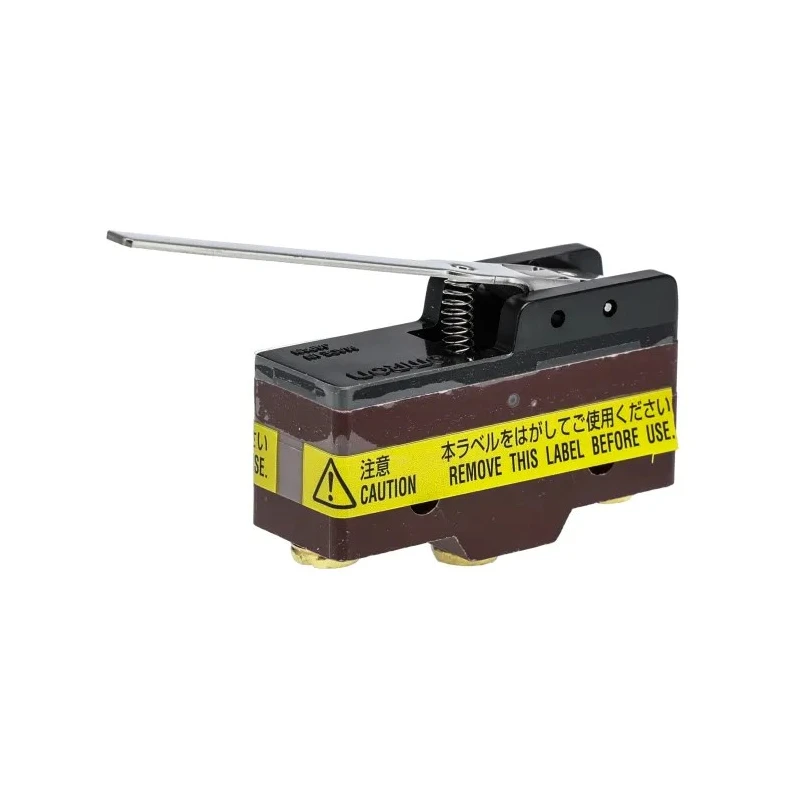

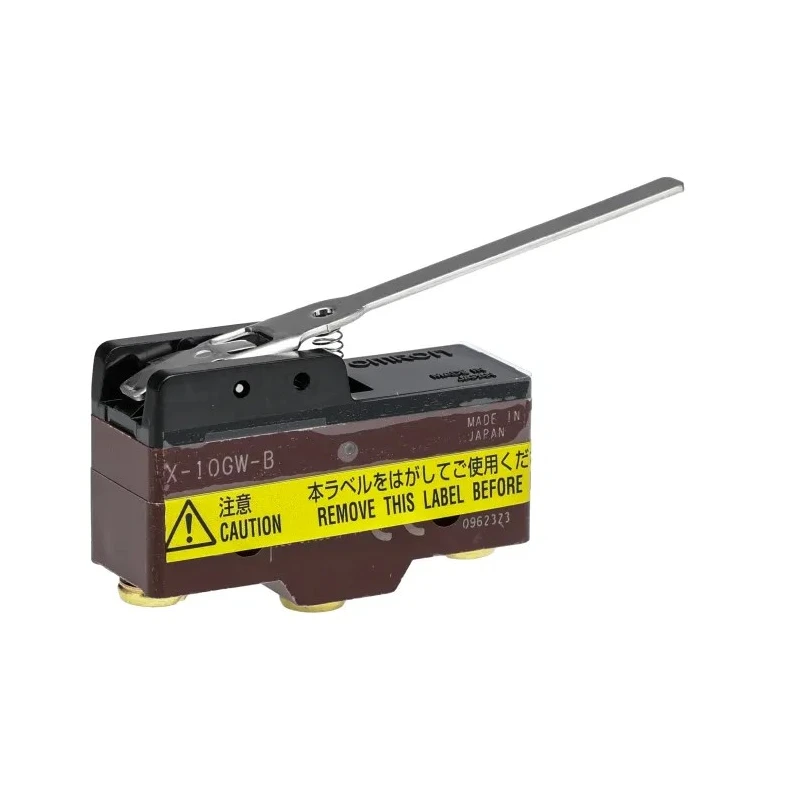

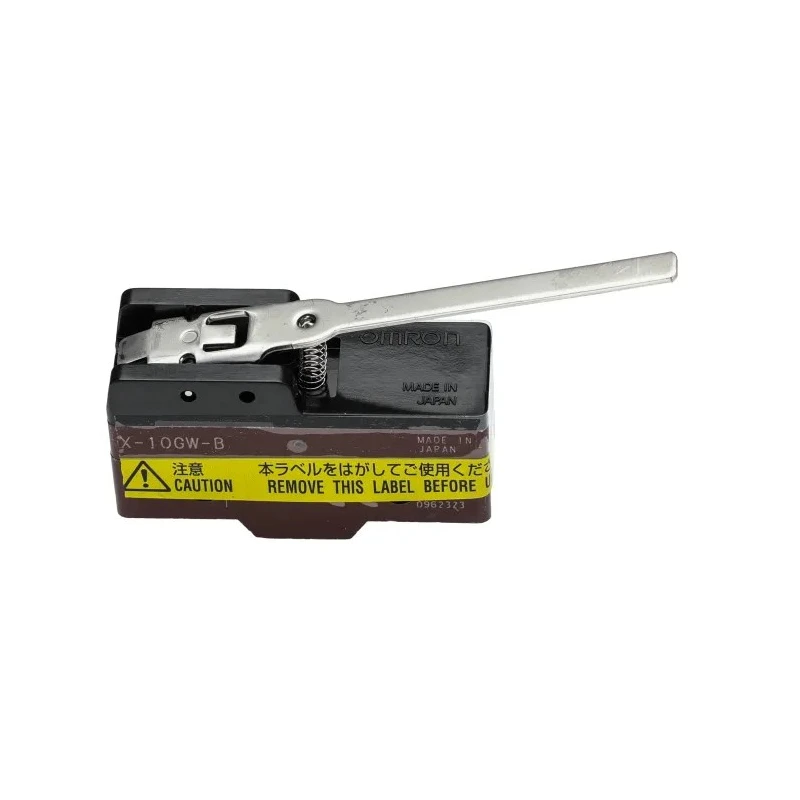

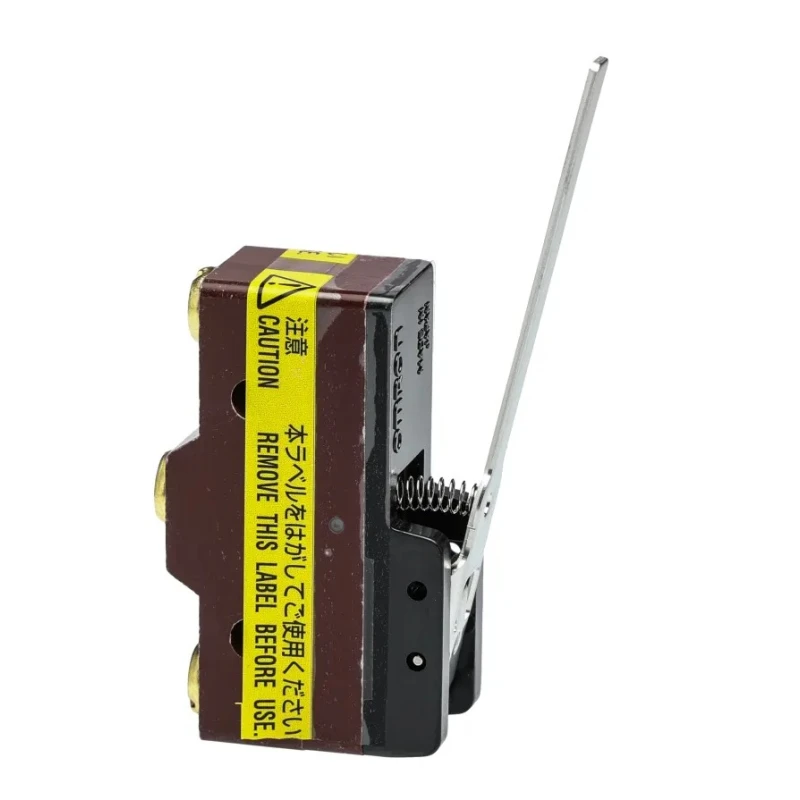

Omron Lever Limit Switch SPDT Thermosetting Resin Housing 250V AC IP00

Omron X-10GW-B lever limit switch is a high-quality component designed for industrial automation and control applications. It features a single-pole double-throw (SPDT) contact configuration to facilitate versatile circuit integration. Housed in rugged thermosetting resin, this limit switch offers robust resistance against environmental and mechanical stress, ensuring reliable operation in demanding industrial environments.

With a lever actuator tailored for precise actuation, the switch is optimized for side mounting installations. Its compact form factor - 49.2mm length, 24.2mm width, and 17.45mm depth - allows seamless integration in tight spaces. The device supports a switching AC voltage up to 250V and a maximum current of 10A, making it suitable for various control circuits and safety interlocks in industrial machinery.

Designed to operate within a temperature range of -25°C to 80°C, the X-10GW-B maintains consistent performance across typical industrial ambient conditions. Its snap action contact mechanism enables quick, accurate switching with minimal bounce, enhancing system responsiveness.

This limit switch features screw terminals for secure wiring and a conduit entry dimension of 20 mm, facilitating easy installation and connection. The mechanical lifespan of up to 1 million operations reduces the frequency of maintenance and replacements, thereby improving overall system uptime.

Manufactured in Japan, the product complies with the RoHS directive, ensuring adherence to environmental and safety standards. It is widely utilized in conveyors for operational monitoring, robotic systems for enhanced functionality, industrial automation requiring precise control, and safety interlocks in machinery and vehicles.

Equipped with a lever actuator for precise positional control. Snap action contacts deliver quick and reliable switching response. Constructed with thermosetting resin for enhanced durability. Operates safely within temperatures from -25°C to +80°C.

Designed for side mounting with compact dimensions of 49.2mm (L) x 24.2mm (W) x 17.45mm (D). Supports maximum current rating of 10A for various industrial circuits. Screw terminal type ensures secure electrical connections.

Rated for 1,000,000 mechanical operations for long service life. Complies with RoHS standards and is manufactured in Japan. Explore more Omron Limit Switches and related industrial electrical components on EnvMart for optimized automation solutions.
