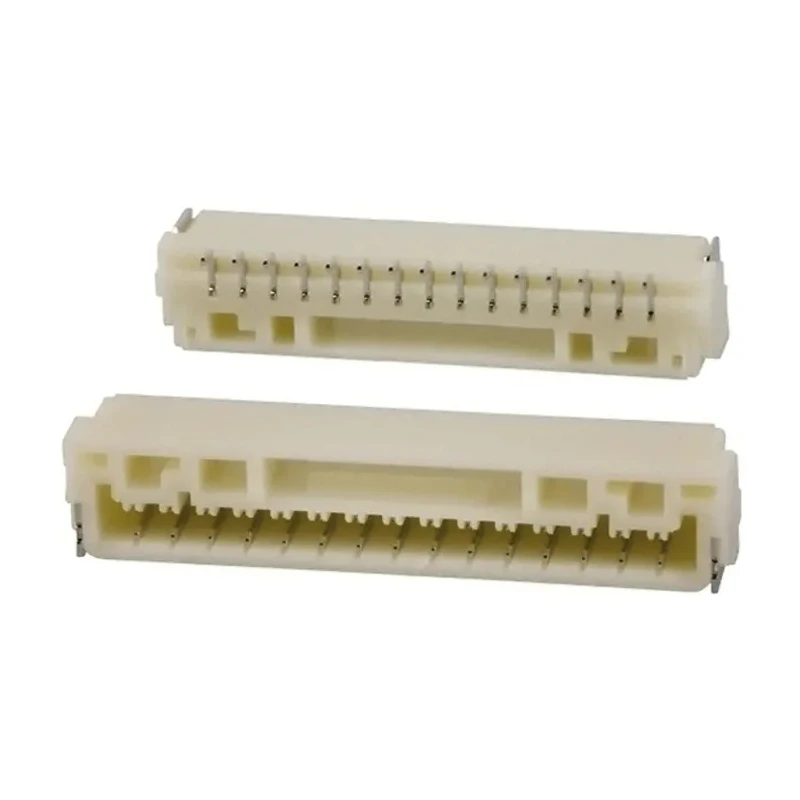

JST GH Series Right Angle Surface PCB Header 15 Contacts 1.25 mm Pitch 1 Row Shrouded SM15B-GHS-TB(LF)(SN)

JST SM15B-GHS-TB(LF)(SN) is a right angle surface PCB header designed for wire-to-board applications, featuring a 1.25 mm pitch and 15 contacts arranged in a single row. The shrouded construction ensures secure mating and reliable electrical connections in compact electronic devices.

The connector housing is made of sturdy polyamide, providing excellent electrical insulation and mechanical strength. The contact material is phosphor bronze plated with tin, which ensures consistent conductivity and resistance to corrosion. This header supports current ratings of up to 1 Amp and voltage ratings up to 50 Volts, making it ideal for small power applications in devices like plasma display panels and LCD modules.

Operating temperature ranges from -25°C to 85°C allows it to function reliably in a variety of environmental conditions encountered in industrial and commercial electronics assembly. Its low insertion force design facilitates ease of assembly while the fork-shaped contacts are supported by housing grooves to prevent deformation, enhancing durability during repeated cycles.

Termination style is solder, ensuring a solid bond for PCB surface mounting, and the connector is equipped with a secure locking structure that maintains the integrity of the connection during vibration or mechanical stress.

This product is crafted in Japan and adheres to strict manufacturing standards. Ideal for industrial, electronics manufacturing, and research laboratories where precision and reliability are imperative.

Designed for wire-to-board connection applications with low insertion force. Constructed with polyamide housing for durability and insulation. Features phosphor bronze contacts plated with tin for reliable conductivity. Operates effectively from -25°C to 85°C temperature range.

Rated for 50 V and 1 A current, suitable for small electronics like PDP and LCD. Offers secure locking structure and fork-shaped contacts to prevent deformation. Surface mount type suitable for SMT assembly processes. Male contact gender with solder termination type.

Manufactured in Japan ensuring high quality standards. Explore more electronics connectors and PCB Headers on EnvMart for your precise engineering needs.
