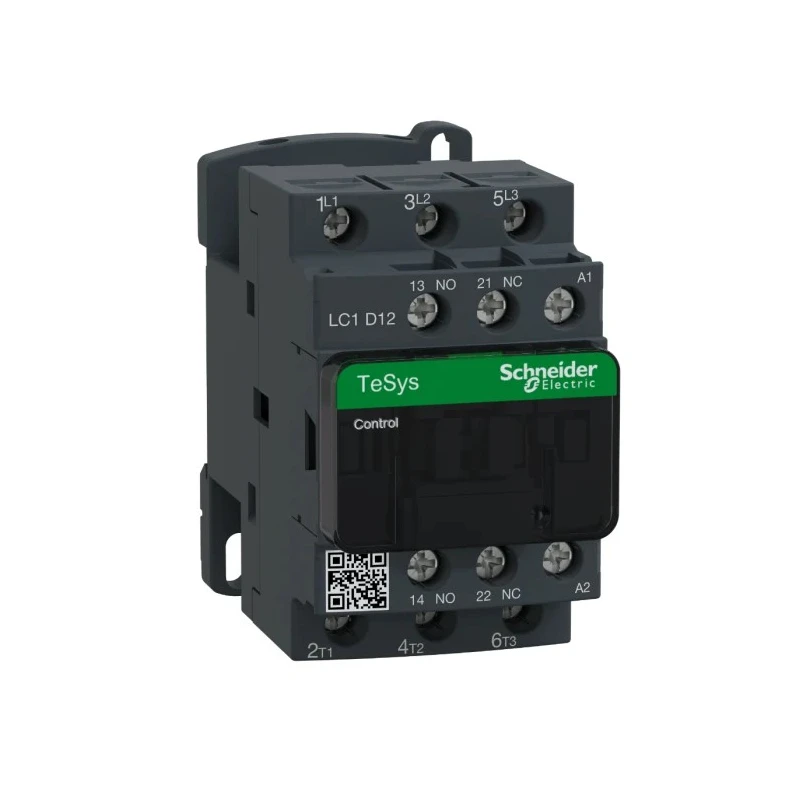

Schneider Electric LC1D TeSys D Contactor, 110V AC Coil, 3-Pole, 12 A, 0.5 HP, 690V AC 3 NO LC1D12G7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D12G7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 0.5HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 690V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 2 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features a 3-pole configuration suitable for 12 A contact current.
- It supports a power rating of 0.5 HP at 690V AC.
- Equipped with 3 normally open (NO) contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Mounting is DIN Rail type with screw terminal connections for secure wiring.
- Operational temperature range is from -40°C to 60°C ensuring durability in various environments.
- Standard approvals include CSA and UL for quality assurance.
- Provides IP20 finger-safe terminals with North American and International markings.
Product Description
Schneider Electric LC1D12G7 Contactor is a robust automation and control device equipped with a 110V AC coil, designed specifically for motor control and resistive load applications. This 3-pole contactor handles 12 amperes of current and is rated for 0.5 horsepower at 690 volts AC, making it suitable for diverse industrial and commercial electrical control systems.
This contactor boasts a 3 normally open contact configuration along with 2 auxiliary contacts arranged as 1 normally open and 1 normally closed. Its DIN rail mounting and secure screw terminal connections facilitate easy installation and reliable operation. The device operates efficiently between -40°C to 60°C, providing resilience in harsh environmental conditions.
Certified to meet CSA and UL standards, the LC1D12G7 complies with industry quality and safety requirements. Designed with better sustainability in mind, it is part of Schneider Electric's Better World product range, emphasizing disassemblability for end-of-life management.
The contactor complies with AC-1 and AC-3 categories, supporting applications such as resistive loads and squirrel cage motors, including lifts, conveyors, compressors, and air conditioning units. It includes IP20 finger-safe terminals with clear terminal markings suitable for both North American and international markets, enhancing user safety and wiring clarity.
The contactor features a 3-pole configuration for motor control and resistive load applications. Equipped with a reliable 110V AC coil and screw-type terminals for secure connections. Designed to operate within the temperature range of -40°C to 60°C.
Includes auxiliary contacts configured as 1 NO and 1 NC for versatile control. Compliant with CSA and UL standards assuring product quality and safety. Supports application categories AC-1 and AC-3 for diverse industrial uses.
Manufactured with design for disassembly, supporting environmental sustainability.
This Schneider Electric contactor is ideal for applications in industrial automation, manufacturing systems, HVAC controls, and electrical motor management. For more Schneider Electric products and industrial automation solutions, browse the EnvMart category of Contactors and Relays.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 0.5 horsepower at 690V AC.
It can handle a contact current of 12 amperes.
The operational temperature range is from -40°C to 60°C.
This contactor features a 3-pole configuration.
It supports DIN rail mounting with screw terminal connections for secure wiring.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor is certified to meet CSA and UL standards for quality assurance.
It is suitable for motor control and resistive load applications, including lifts, conveyors, and compressors.
The dimensions are 77 mm in length, 45 mm in width, and 86 mm in depth.
It features IP20 finger-safe terminals with both North American and International terminal markings.
The coil voltage for this contactor is 110V AC.
It supports AC-1 and AC-3 categories, suitable for resistive loads and squirrel cage motors.
