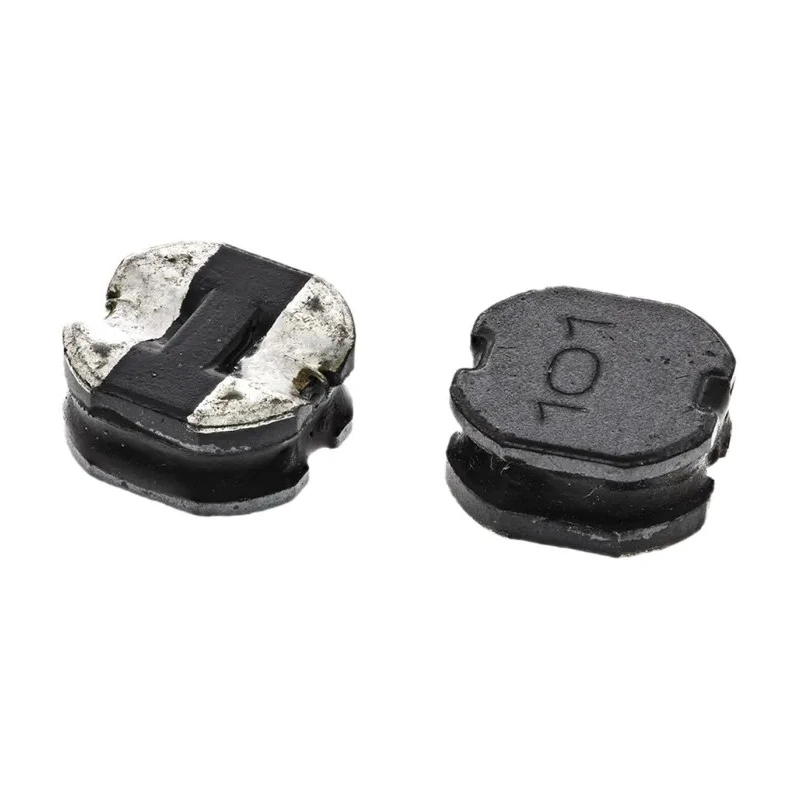

Bourns 0804 Shielded Surface Mount Inductor with Ferrite Core 100μH ±20% 1 A Idc Semi Shielded SRN8040
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4mm |
| Length | 8mm |
| Model | SRN8040 |
| Depth | 8mm |
| Packaging | Reel |
| Series | SRN8040 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 0804 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 400mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6MHz |
| Minimum Quality Factor | 10 |
| Inductor Construction | Semi Shielded |
| Automotive systems | Driver assistant, information, lighting, entertainment |
Key Features
- This inductor features an 0804 package with length and depth of 8mm and height of 4mm.
- It has an inductance tolerance of ±20% and a minimum quality factor of 10.
- The device supports a maximum DC current of 1A and maximum DC resistance of 400mΩ.
- Operating temperature ranges from -40°C to 125°C with a maximum self-resonant frequency of 6MHz.
- Constructed with a ferrite core and semi shielded design for enhanced performance.
- Solder termination style ensures reliable mounting on surface mount technology PCBs.
- Complies with RoHS standards and is suitable for automotive and industrial applications.
Product Description
The Bourns SRN8040 series 0804 shielded surface mount inductor is designed with a ferrite core and semi shielded construction, offering reliable performance with an inductance of 100μH and tolerance of ±20%. It supports a maximum DC current of 1 ampere and features a minimum quality factor of 10 ensuring stable operation across a wide frequency range up to 6 MHz.
This inductor is housed in an 0804 package measuring 8mm in length and depth and 4mm in height, making it compact for space-efficient PCB layouts. The semi shielded design reduces electromagnetic interference while maintaining efficiency, making it ideal for use in automotive electronics, DC-DC converters, power supplies, TVs, and digital video equipment.
It operates reliably in temperature ranges from -40°C up to 125°C and is RoHS compliant for environmental safety. The solder termination style provides a strong mechanical and electrical connection on surface mount boards and ensures automated assembly compatibility.
Typical applications include driver assistance systems, lighting, entertainment, and information systems in the automotive sector, as well as power supply filtering and signal conditioning in industrial and consumer electronics.
This inductor features an 0804 package with length and depth of 8mm and height of 4mm. Inductance value is 100μH with ±20% tolerance for flexibility in circuit design. Supports a maximum DC current of 1A with a maximum resistance of 400mΩ.
Semi shielded construction reduces electromagnetic interference. RoHS compliant ensuring environmentally friendly manufacturing practices. Designed for automotive and industrial use with a temperature range of -40°C to 125°C.
Suitable for DC-DC converters, power supplies, televisions, and digital video. Explore more Bourns components and Surface Mount Inductors at EnvMart for your next electronics project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100μH with a tolerance of ±20%.
It supports a maximum DC current of 1A.
The inductor is housed in an 0804 package, measuring 8mm in length and depth, and 4mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 6MHz.
This inductor is constructed with a ferrite core.
The maximum DC resistance is 400mΩ.
It features a solder termination style for reliable mounting on surface mount technology PCBs.
This inductor is suitable for automotive systems, DC-DC converters, power supplies, and digital video equipment.
The minimum quality factor is 10, ensuring stable operation across a wide frequency range.
Yes, it complies with RoHS standards for environmental safety.
It is packaged on a reel, suitable for automated assembly.
