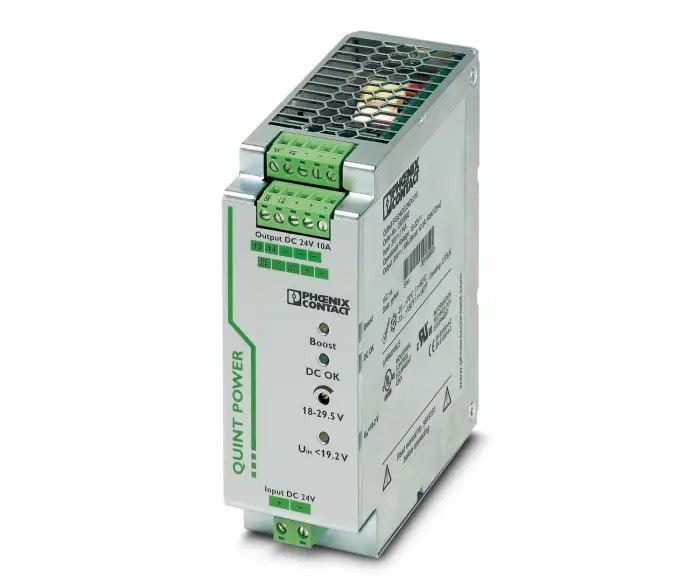

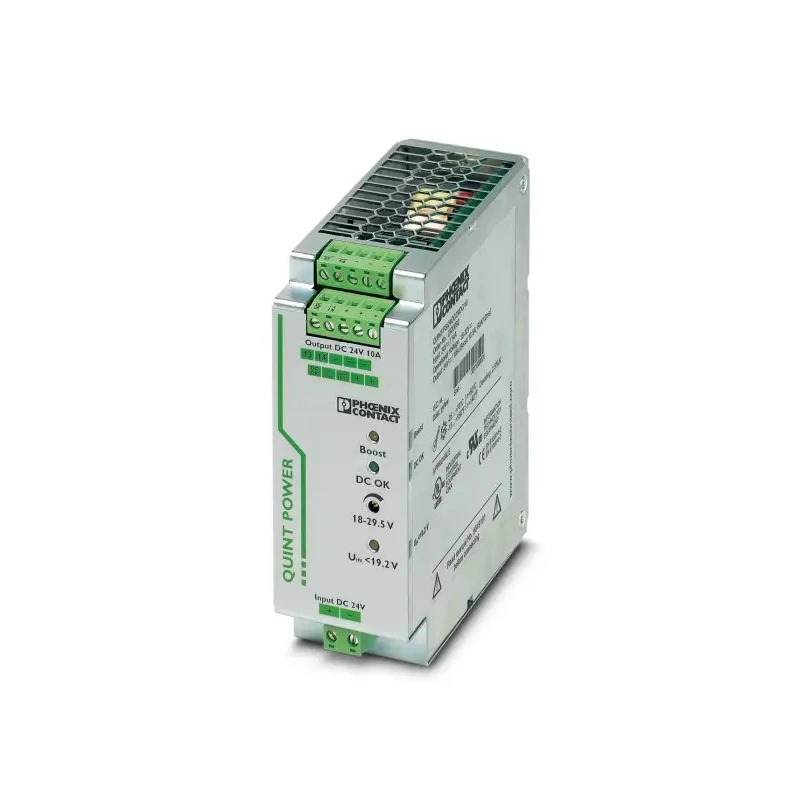

Phoenix Contact QUINT-PS/24DC/24DC/10 DC/DC Converter, 24V DC Output, 10A Current, 32V DC Max Input, 240W Power, DIN 2320092
Specifications
| Country of Origin | India |
|---|---|
| Brand | Phoenix Contact |
| Efficiency | 92% |
| Length | 130mm |
| Model | 2320092 |
| Depth | 125mm |
| Gross Weight | 900g |
| Width | 48mm |
| Mount Type | DIN Rail |
| Series | QUINT-PS/24DC/24DC/10 |
| Minimum Operating Temperature | 70°C |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Output Power | 240W |
| Maximum Input Voltage | 32V dc |
| Standards/Approvals | cULus, UL, cUL, EAC |
| Minimum Input Voltage | 24V dc |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 10A |
| Output Voltage Adjustment Range | 18 to 29.5 V |
| Isolation Voltage | 1.5kV dc |
| Output Voltage 2 | 29.5V |
Key Features
- Provides regulated 24V DC output current of 10A.
- Supports a wide input voltage range from 24V DC to 32V DC for versatile applications.
- High efficiency of 92% minimizes energy loss during operation.

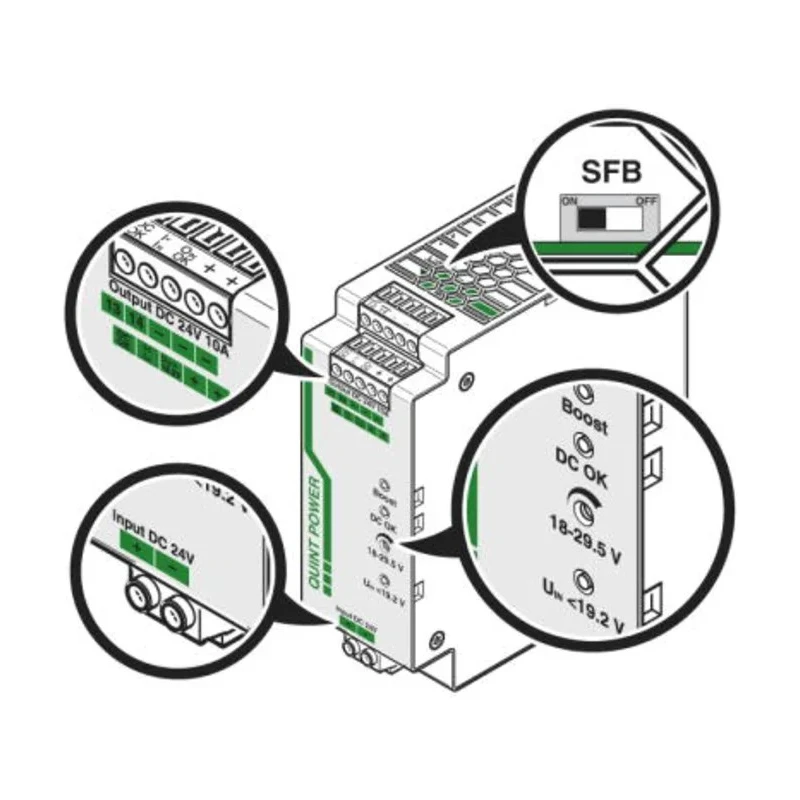

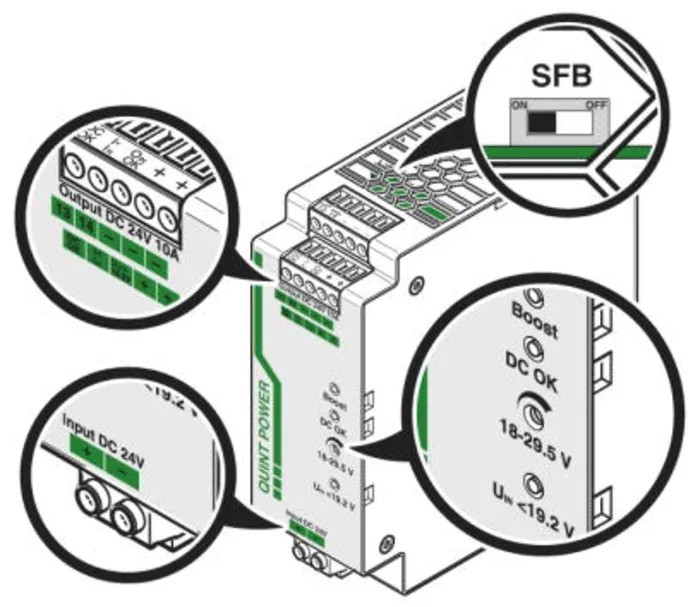

- Features selective fuse breaking (SFB) technology for individual circuit protection.
- Supports DIN rail mounting suitable for industrial control panels.
- Has an output voltage adjustment range between 18V to 29.5V DC.
- Operates reliably within temperature up to 70°C for demanding environments.
- Provides electrical isolation of 1.5kV DC to safeguard connected systems.
Product Description
Phoenix Contact 2320092 DC/DC Converter is a high-performance power supply module designed to deliver stable 24V DC output current at 10A, with a maximum power capacity of 240W. It features a wide input voltage range of 24V to 32V DC, making it ideal for industrial environments requiring reliable and consistent power conversion.
This converter employs selective fuse breaking (SFB) technology that enables individual circuit protection by detecting short circuits or over-current situations. This critical functionality prevents damage to other circuits on the DC bus, enhancing overall system availability and maintenance efficiency.
The device’s output voltage can be adjusted between 18V and 29.5V DC, allowing flexible operation to accommodate varying load requirements. It supports DIN rail mounting, simplifying integration into electrical distribution and control panels.
Boasting an efficiency of 92%, the converter ensures energy-efficient performance, reducing operational costs. The unit also provides 1.5kV DC isolation voltage for electrical separation and system safety.
With compact dimensions of 130mm length, 48mm width, and 125mm depth, this model fits neatly within constrained spaces. It operates reliably at temperatures up to 70°C, suitable for demanding industrial applications.
Regulated 24V DC output with 10A current. Wide input voltage of 24 to 32V DC. Selective fuse breaking technology for advanced circuit protection. Output voltage adjustment from 18V to 29.5V DC. Efficient 92% power conversion efficiency.
Electrical isolation at 1.5kV DC for safety. Compact DIN rail mountable design. Operating temperature up to 70°C for harsh environments. Meets cULus, UL, cUL, and EAC safety approvals.
This Phoenix Contact QUINT-PS series converter is suitable for industrial automation, manufacturing processes, and electrical control systems requiring stable DC power conversion and high system reliability.
Explore the Electronics & Electricals category on EnvMart for a wide range of DC/DC Converters and power supplies from leading brands like Phoenix Contact.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output current of 10A at 24V DC.
The maximum input voltage for this converter is 32V DC.
It boasts an efficiency of 92%, minimizing energy loss during operation.
Yes, the output voltage can be adjusted between 18V and 29.5V DC.
The dimensions are 130mm in length, 48mm in width, and 125mm in depth.
It supports DIN rail mounting, making it suitable for industrial control panels.
It provides an isolation voltage of 1.5kV DC for electrical safety.
The maximum output power is 240W.
It meets cULus, UL, cUL, and EAC safety approvals.
The ripple and noise is specified at 20mV Pk-Pk.
The minimum operating temperature is up to 70°C, suitable for demanding environments.
This converter has one output.
