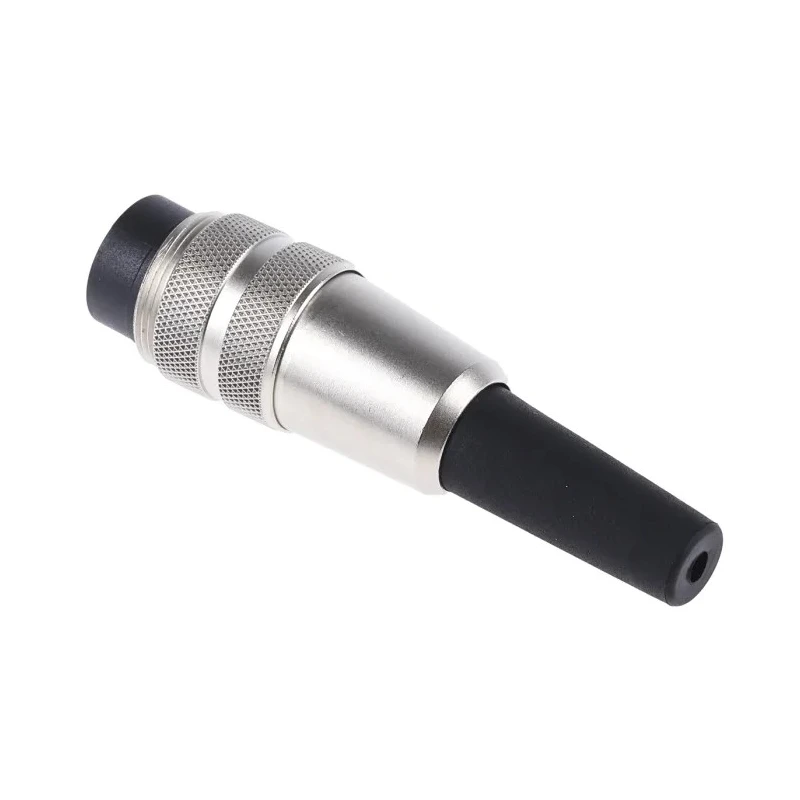

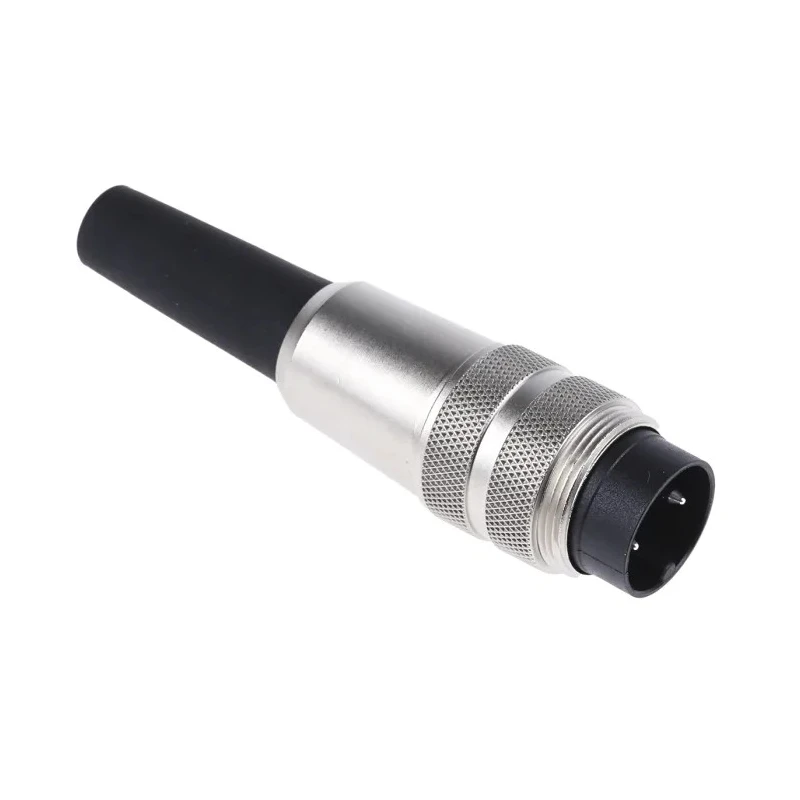

binder Circular Connector 2 Contacts Cable M16 Plug Male IP40 680 Series 09-0301-00-02
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shell Size | 17.2 |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- Compact miniature circular connector with screw lock mating type for secure connections.
- Rated for 7A current and 250V voltage, ideal for industrial electrical systems.
- Polyamide housing ensures durability with operating temperatures from -40°C to 85°C.
- Silver plated brass contacts provide reliable electrical contact and corrosion resistance.

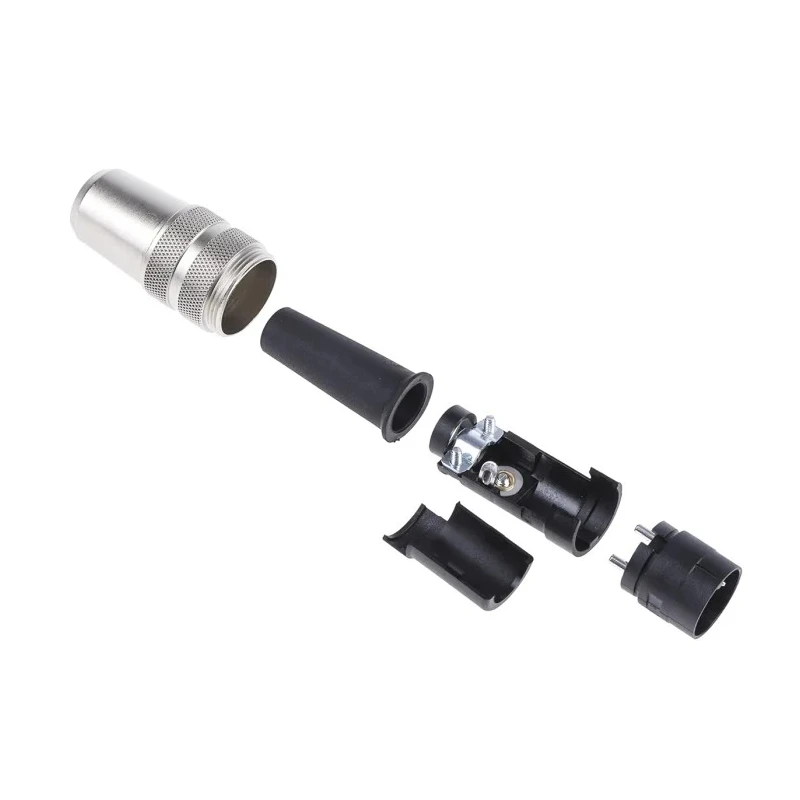

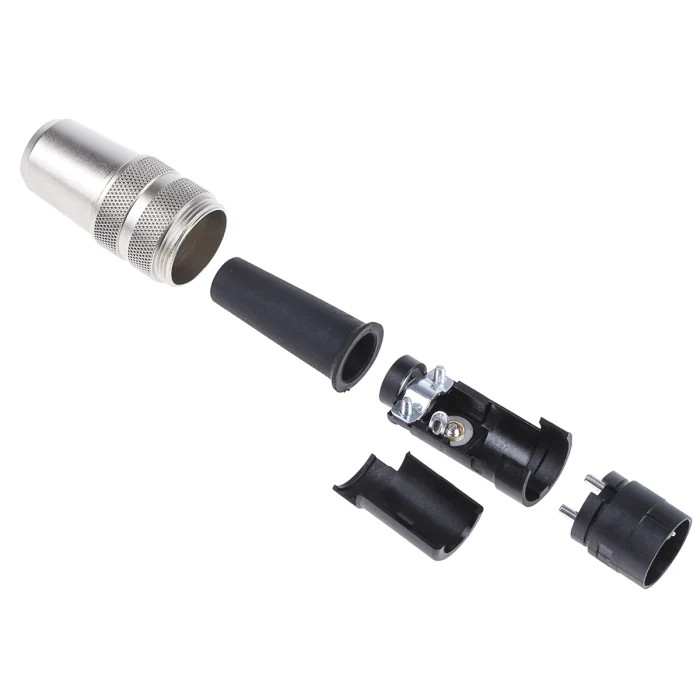

- Internal bend protection sleeve and strain relief enhance cable retention and stability.
- Straight orientation with 17.2mm shell size fits standard DIN style connectors.
- Perfect for automation, industrial instrumentation, and machine tool applications.
- IP40 rated for indoor use, protecting against solid objects but not water ingress.
Product Description
binder 09-0301-00-02 Circular Connector, 2 Contacts, Cable Mount Type, M16 Size, Male Plug, IP40 Ingress Protection, Series 680, rated 7A/250V, designed for industrial and automation applications.
This miniature circular connector features robust polyamide housing with a screw lock mechanism and silver-plated brass contacts that ensure excellent corrosion resistance and electrical conductivity. The internal bend protection sleeve and strain relief maximize cable retention and provide enhanced durability under mechanical stress.
The straight orientation and 17.2 mm shell size facilitate compatibility with other circular DIN style connectors, making it an ideal choice for industrial instrumentation, machine tools, process control equipment, and medical devices.
Operating temperature ranges from -40°C to 85°C, suitable for demanding environments. The IP40 rating restricts this connector to indoor applications free from dust and moisture exposure. It is not waterproof and should not be used outdoors or in harsh environments.
The solder termination ensures secure cable connection. The 680 series connectors support a high number of mating cycles, providing reliable and long-lasting performance in manufacturing, electrical equipment, and plant machinery.
Compact miniature design with screw locking for secure connection. Silver plating on brass contacts for durability and conductivity. Polyamide housing provides chemical and mechanical resistance. Internal bend protection and strain relief increase cable stability.
Compatible with DIN style circular connectors. Rated for 7A current and 250V voltage operation. IP40 protection suitable for indoor industrial environments. Solder termination ensures reliable cable connection. Explore a wide range of Industrial Circular Connectors at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for 7A current and 250V voltage, making it suitable for industrial electrical systems.
The connector has an IP40 rating, which protects against solid objects but does not provide protection against water ingress, making it suitable for indoor use only.
The housing is made of polyamide, and the contacts are silver-plated brass, providing corrosion resistance and reliable electrical contact.
It operates within a temperature range of -40°C to 85°C, suitable for demanding environments.
The screw lock mating type ensures secure connections by locking the connector in place, preventing accidental disconnection during operation.
The shell size is 17.2 mm, which allows compatibility with standard DIN style connectors.
This model features 2 contacts, designed for various industrial applications.
It uses solder termination, ensuring a secure and reliable cable connection.
The connector has a straight orientation, facilitating easy installation in various setups.
It complies with the DIN EN 61076-2-106 standard, ensuring compatibility with industry requirements.
It is ideal for automation, industrial instrumentation, machine tools, and process control equipment.
The country of origin for this connector is Germany.
