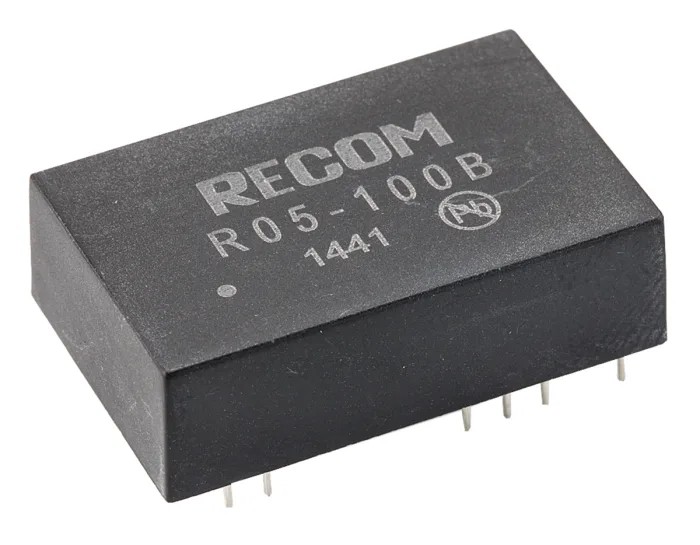

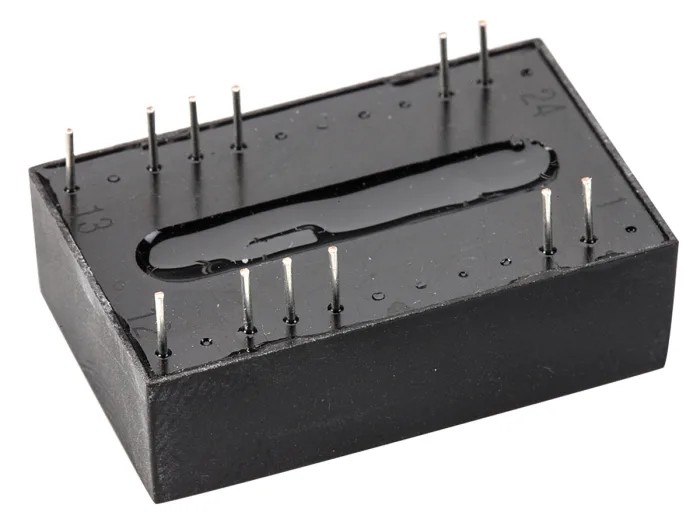

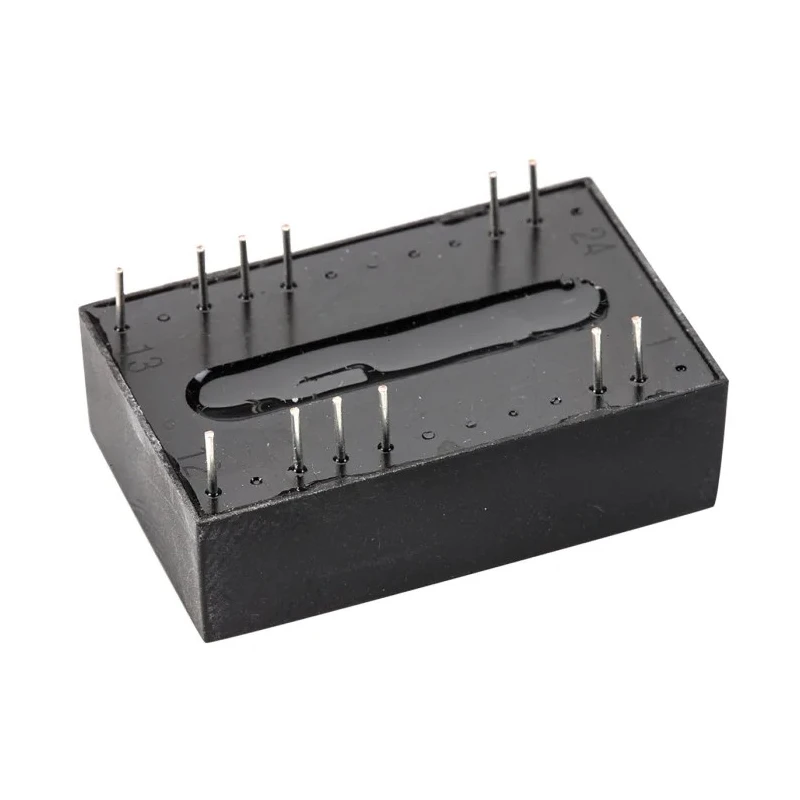

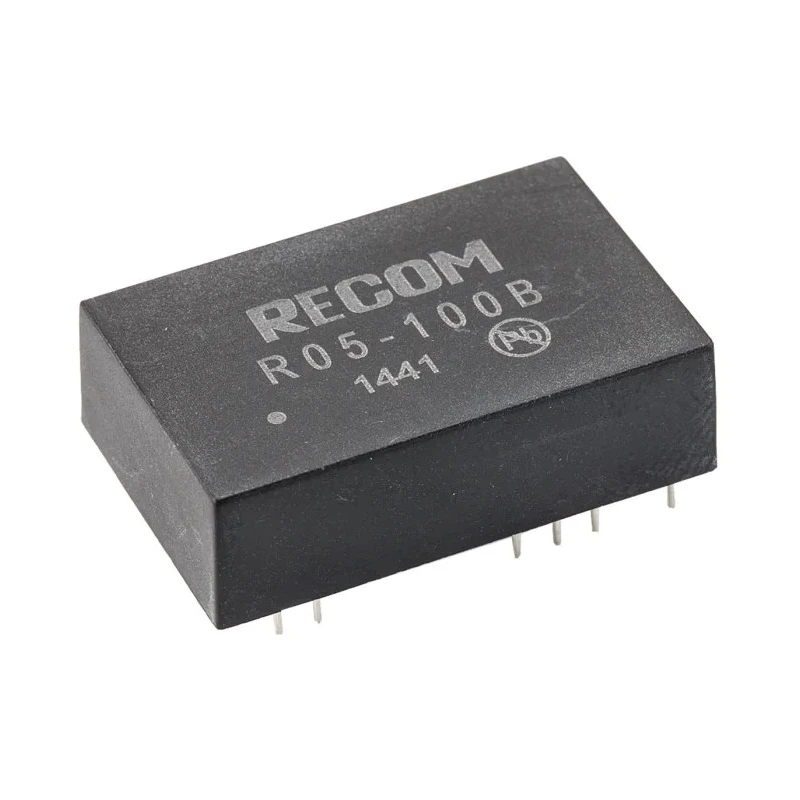

Recom DC/DC Converter 87V Output, 25mA Output Current, 6V dc Input, 4.5V Minimum Input, 3W Max Power, Through Hole R05-100B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R05 DC/DC Converter, 87V/ 25 mA, 6V dc Input |
| Brand | Recom |
| Efficiency | 77% |
| Length | 31.8mm |
| Model | R05-100B |
| Depth | 9.4mm |
| Mount Type | Through Hole |
| Series | R05 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1400000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 6V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 24 |
| Output Voltage 1 | 87V |
| Output Current 1 | 25mA |
| Isolation Voltage | 3kV dc |
Key Features
- Offers regulated isolated DC to DC conversion with high efficiency.
- Supports adjustable output voltages up to 210 Vdc.
- Features 3kV input/output isolation for safety and reliability.
- Operates within a temperature range of -40°C to 85°C.
- Compact package size with 31.8 mm length and 9.4 mm depth dimensions.
- Delivers continuous short circuit protection and automatic restart functionality.
- MTBF rated at 1,400,000 hours for extended service life.
- Compatible with cascading for output voltages up to 420 Vdc.
Product Description
Recom R05-100B DC/DC Converter is a high-performance, regulated, isolated power supply component engineered for industrial and electronic applications requiring stable DC voltage conversion. This model provides an output voltage of 87V at 25mA with a maximum output power rating of 3W, making it ideal for precise control circuits and power-sensitive devices.
Designed for through-hole mounting in a DIP 24-pin package, this converter accepts a DC input voltage range from 4.5V minimum to a maximum of 6V, delivering reliable performance across temperature extremes from -40°C to 85°C. Its input/output isolation voltage of 3kV dc ensures safe operation in demanding industrial environments.
The R05 series offers adjustable outputs up to 210V DC and can be cascaded to achieve output voltages as high as 420 Vdc. With 77% efficiency and continuous short circuit protection with auto-restart capabilities, this converter ensures durability and security for long-term applications. The unit's MTBF is rated at 1,400,000 hours per MIL-HDBK 217F standard, assuring extended operational lifespan.
Compact dimensions of 31.8 mm length and 9.4 mm depth allow space-efficient integration on PCBs. This DC/DC converter is widely used in industrial electronics, telecommunications, power supply modules, and instrumentation systems where precise and isolated DC power conversion is critical.
Offers regulated isolated DC to DC conversion with high efficiency. Supports adjustable output voltages up to 210 Vdc. Features 3kV input/output isolation for safety and reliability. Operates within a temperature range of -40°C to 85°C.
Compact package size with 31.8 mm length and 9.4 mm depth dimensions. Delivers continuous short circuit protection and automatic restart functionality. MTBF rated at 1,400,000 hours for extended service life. Compatible with cascading for output voltages up to 420 Vdc.
Explore a wide range of DC/DC Converters and power conversion solutions on EnvMart for optimum industrial and electronic system performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The R05-100B model provides an output voltage of 87V with an output current of 25mA.
It accepts a DC input voltage range from a minimum of 4.5V to a maximum of 6V.
The maximum output power rating of this unit is 3W.
This model has a length of 31.8 mm and a depth of 9.4 mm.
The efficiency of the R05-100B is rated at 77%.
It features an isolation voltage of 3kV dc, ensuring safe operation in industrial environments.
The operating temperature range for this converter is from -40°C to 85°C.
This model is designed for through-hole mounting in a DIP package.
This converter has one output.
The MTBF for the R05-100B is rated at 1,400,000 hours per MIL-HDBK 217F standard.
Yes, it is compatible with cascading to achieve output voltages up to 420 Vdc.
This model is widely used in industrial electronics, telecommunications, power supply modules, and instrumentation systems that require stable DC voltage conversion.
