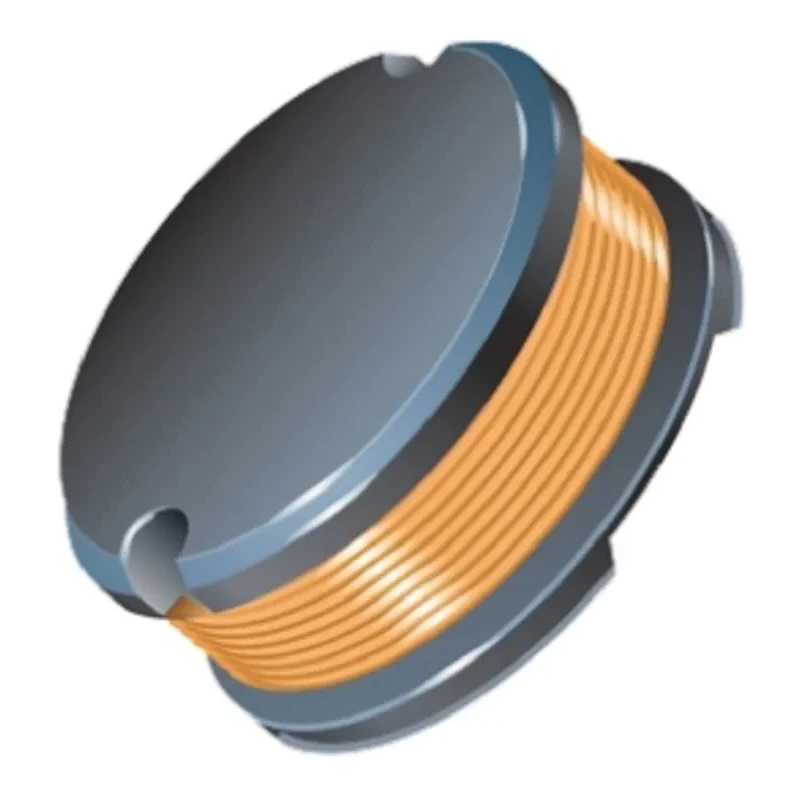

Bourns Wirewound Surface Mount Inductor 100 μH ±10% 0.97 A IDC Ferrite DR Core 1006 Package SDR1006
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.8mm |
| Brand | Bourns |
| Height | 5.8mm |
| Length | 9.8mm |
| Model | SDR1006 |
| Depth | 9.8mm |
| Packaging | Reel |
| Series | SDR1006 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 1006 |
| Maximum DC Current | 0.97A |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5.2MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite DR core for enhanced performance.
- Provides inductance tolerance of ±10 percent for accuracy.
- Constructed with wirewound technology and moulded design.
- Supports a maximum DC resistance of 350 milliohms.
- Operates reliably within -40°C to 125°C temperature range.
- Maximum self-resonant frequency of 5.2 MHz and minimum quality factor of 15.
- Packaged in a 1006 surface mount case style suitable for reel mounting.
- Ideal for use in DC/DC converters, power supplies, and electronic filtering applications.
Product Description
Bourns SDR1006 Wirewound Surface Mount Inductor is a precision passive electronic component designed for use in power supply and electronic circuitry applications requiring high reliability and performance. It features a ferrite DR core and wirewound construction, providing stable inductance of 100 microhenries with a tolerance of ±10 percent.
This inductor is rated for a maximum DC current of 0.97 amperes and has a maximum DC resistance of 350 milliohms, ensuring efficient current handling with minimal power loss. Its surface mount termination style and 1006 package case make it compatible with automated PCB assembly processes and compact board layouts.
The component is designed to operate in harsh environments, with a minimum operating temperature of -40°C and a maximum of 125°C. It offers a maximum self-resonant frequency of 5.2 MHz and a high quality factor of at least 15, supporting efficient filtering and energy storage in switching power supplies and DC/DC converter circuits.
Measuring 9.8 mm in diameter, 5.8 mm in height, and 9.8 mm in depth, this moulded inductor is compact yet robust. It is RoHS compliant, meeting environmental and safety standards. Ferrite DR core enhances magnetic performance.
Wirewound construction ensures precision inductance. Surface mount package supports automated assembly. Wide operating temperature range from -40°C to 125°C. Suitable for electronic power supplies and converters. Compact 1006 case size with reel packaging.
High quality factor of 15 for efficient operation. RoHS compliant for environmental safety.
This inductor is ideal for industrial, commercial, and laboratory electronics applications including DC/DC converters, power supplies, and signal filtering. Its small package and reliable electrical characteristics make it a preferred choice for modern electronic designs.
Explore additional Bourns electronic components and inductors at EnvMart for your specialized industrial and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 microhenries (μH) with a tolerance of ±10 percent.
It is rated for a maximum DC current of 0.97 amperes.
The maximum DC resistance is 350 milliohms.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 5.2 MHz.
This inductor has a minimum quality factor of 15.
It features a ferrite DR core, which enhances its magnetic performance.
It is packaged in a 1006 surface mount case style suitable for reel mounting.
The inductor is constructed using wirewound technology, which provides stable inductance.
Yes, the SDR1006 is RoHS compliant, meeting environmental and safety standards.
It is ideal for use in DC/DC converters, power supplies, and electronic filtering applications.
It measures 9.8 mm in diameter, 5.8 mm in height, and 9.8 mm in depth.
