| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQG18H |
| Depth | 0.8mm |
| Packaging | Paper Tape |
| Series | LQG18H |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN networks, etc |
| Inductance | 12nH |
| Package/Case | 0603 |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3GHz |
| Minimum Quality Factor | 12 |
| Inductor Construction | Wirewound |

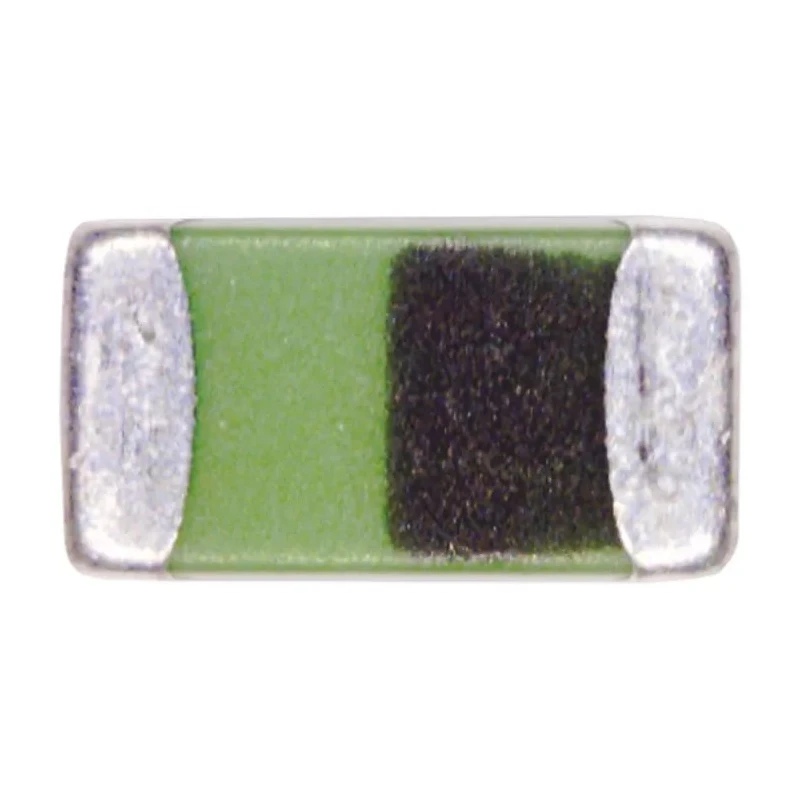

Murata LQG18H 0603 Unshielded Wirewound Surface Mount Inductor offers a precise 12 nH inductance with a tolerance of ±5%, designed for high frequency electronic circuits.

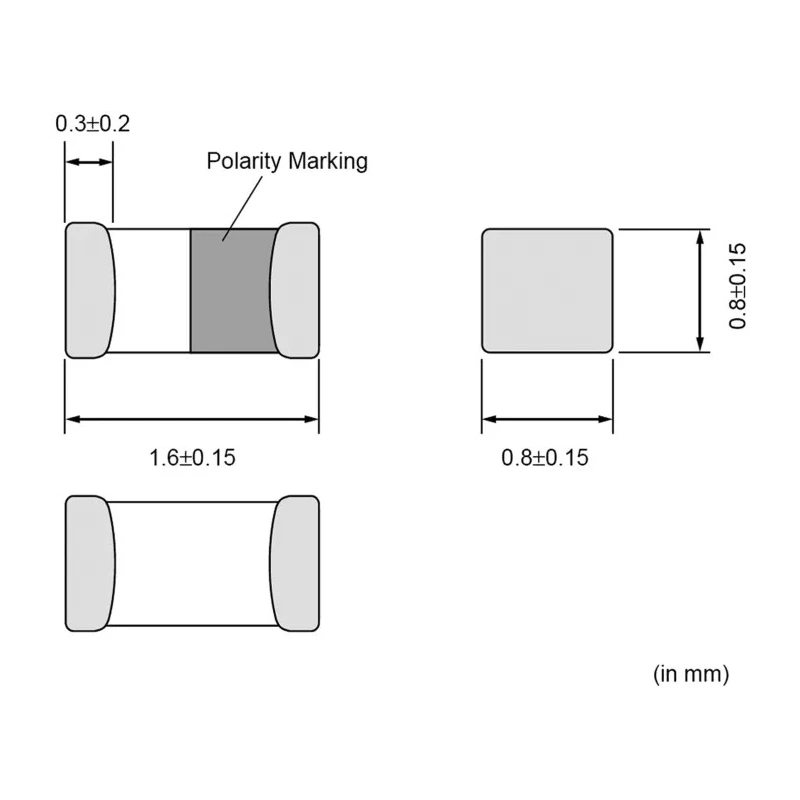

This inductor is part of Murata's LQG18HN series and features a compact 0603 surface mount package measuring 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth, making it ideal for space-constrained applications.
The wirewound construction provides high stability and quality factor (minimum Q of 12), with an inductance tolerance suitable for demanding RF applications. The device supports a maximum DC current of 400 mA and a maximum DC resistance of 350 mΩ, contributing to efficient performance.
Its nickel barrier external electrodes ensure strong resistance to high soldering temperatures, improving manufacturing reliability. The inductor operates effectively within an ambient temperature range of -40°C to 85°C and maintains a maximum self-resonant frequency of 3 GHz.
Packaged in paper tape format, this surface mount inductor is ready for integration in automated PCB assembly lines. It is widely used in applications such as mobile telephony devices, Bluetooth modules, and WLAN network equipment, where stable high-frequency performance is essential.
Compact 0603 SMD size for efficient mounting. Wirewound structure for high quality and stability. 400 mA max DC current rating with low resistance. Durable nickel barrier electrodes tolerant to soldering heat. High self-resonant frequency of 3 GHz suitable for RF circuits.
Temperature range from -40°C to 85°C for varied environments. Paper tape packaging for automated manufacturing. Applicable for wireless communications and network devices.
This Murata surface mount inductor is a superior choice for electronic component suppliers and manufacturers focused on high-frequency circuit designs. Explore more Surface Mount Inductors and electronic components at EnvMart for your industrial and commercial needs.
