Murata 0603 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 10 nH ±5 % 650 mA Idc Q:35 LQW18AN10NJ00D

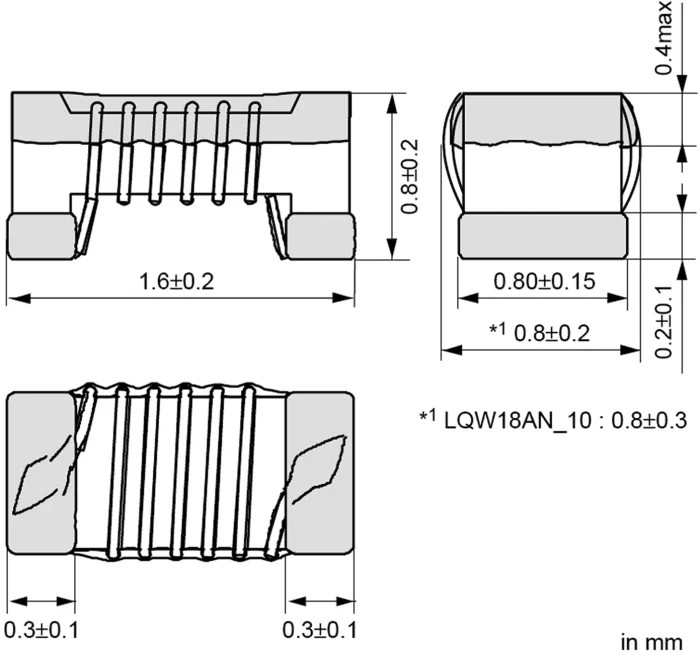

Murata LQW18AN10NJ00D is a high-quality unshielded wirewound surface mount inductor featuring a ferrite core designed for high-frequency circuits. The device is packaged in a compact 0603 case with dimensions 1.6mm length, 0.8mm height, and 0.8mm depth, making it ideal for applications where space and performance are critical.

With an inductance of 10 nH and a tolerance of ±5 %, this inductor supports a maximum DC current of 650 mA and exhibits a low DC resistance of 110mΩ, facilitating efficient energy transfer and minimal power loss. The component is RoHS compliant and uses solder termination style for reliable surface mounting on PCB assemblies.

Suitable for use in wireless telecommunications equipment such as Bluetooth, GSM, and WLAN at VHF and UHF frequencies, it boasts a high self-resonant frequency of 6 GHz and a quality factor of at least 35, ensuring excellent signal integrity and filtering capability.

The operating temperature range from -55°C to 125°C accommodates various industrial and commercial environments, maintaining performance stability over temperature variations. The series LQW18AN includes models with suffix '10D' indicating lower DC resistance values, enhancing circuit efficiency.

This Surface Mount Inductor is moulded and constructed with precision wirewound technology to assure consistent inductance values and minimal electromagnetic interference due to its unshielded construction.

Ferrite core enhances magnetic performance. 0603 package size with compact 1.6mm length and 0.8mm height and depth dimensions. Low maximum DC resistance of 110mΩ for efficient operation. High self-resonant frequency up to 6 GHz supports high frequency applications.

Suitable for VHF and UHF wireless telecommunications circuits including Bluetooth, GSM, and WLAN. RoHS compliant with solder termination for surface mounting. Minimum operating temperature -55°C and maximum operating temperature 125°C suitable for diverse environments.

Wirewound construction providing stable inductance and high quality factor (Q) of minimum 35.

This product is ideal for use in industrial, telecommunications, and electronic manufacturing applications requiring dependable and precise inductors. Explore the Electronics Components category on EnvMart for more products from Murata and related high-quality components.
