| Country of Origin | China |
|---|---|
| Brand | EDAC |
| Orientation | Top Entry |
| Length | 5.8mm |
| Width | 4.4mm |
| Mount Type | Surface |
| Housing Material | Polyamide 66 |
| Insulation resistance | 1000 MΩ (minimum) |
| Number of Rows | 1 |
| Pitch | 2mm |
| For Use With | High-Density Connection Of Internal Wires To Pcb |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| Connector Gender | Female |

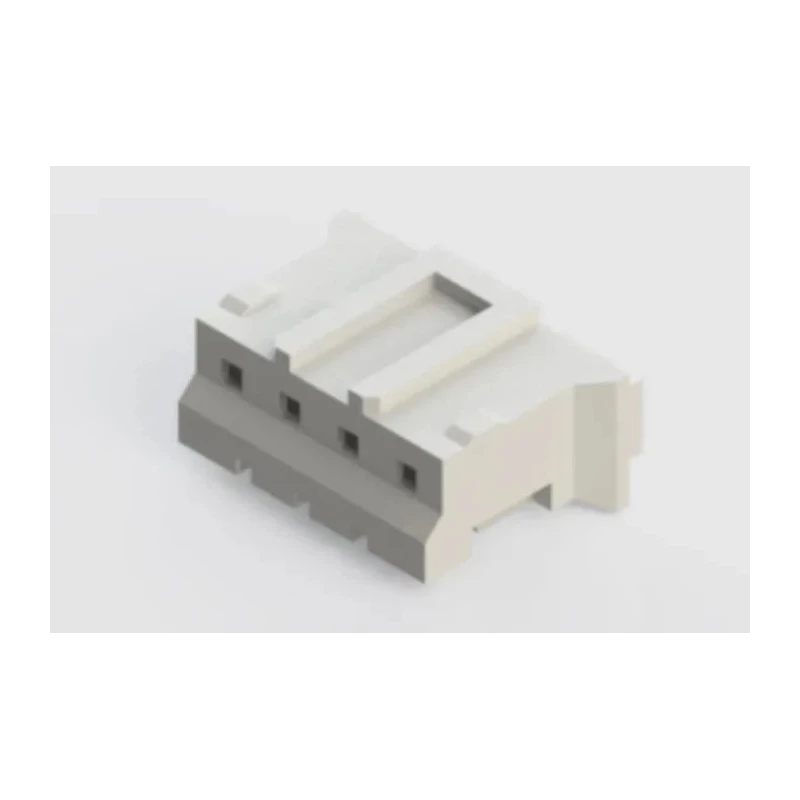

EDAC 140-504-210-011 Female Crimp Connector Housing is a high-quality PCB wire-to-board connector designed for demanding electronics and industrial applications. It features a 2 mm pitch, 4-way single-row configuration and top-entry orientation, making it ideal for high-density internal wire connections to PCBs.
The housing is crafted from Polyamide 66 (PA66), rated UL94V-0 for flame retardancy, providing excellent insulation and durability. The female connector supports surface mount installation, simplifying the assembly process and ensuring secure retention to the board. Its compact dimensions, including a 5.8 mm length and 4.4 mm width, allow for tight layouts in modern PCB designs.
Features a robust Polyamide 66 housing for enhanced reliability and insulation. Surface mount design simplifies installation and secures retention to PCB. Offers 4 female contacts and 1 row, ideal for compact and high-density applications.
2 mm pitch supports tight layouts for modern PCB design needs. Top entry configuration facilitates easy crimping and wire insertion. Operating temperature range of -40°C to +105°C, suitable for various environments. Insulation resistance minimum 1000 megaohms ensures dependable operation.
Complies with RoHS standards for safety and environment.
This connector housing is designed for high-density connection of internal wires to PCBs in applications such as industrial control systems, electronic circuit boards, commercial equipment, and manufacturing automation. Its top entry facilitates straightforward wire load and crimping, enhancing installation efficiency. Board retention contacts are available, and the low-profile insulator body supports space-saving requirements.
EDAC's 140-504-210-011 is fully compliant with RoHS standards, ensuring safe and environmentally responsible integration. The PA66 housing delivers excellent mechanical strength, maintaining secure contact integrity even under demanding conditions. Suitable for use in manufacturing, laboratory electronics assembly, automation, and many other commercial and industrial sectors.
Explore further PCB wire housing solutions and other EDAC components in the PCB Connector Housing category on EnvMart.
