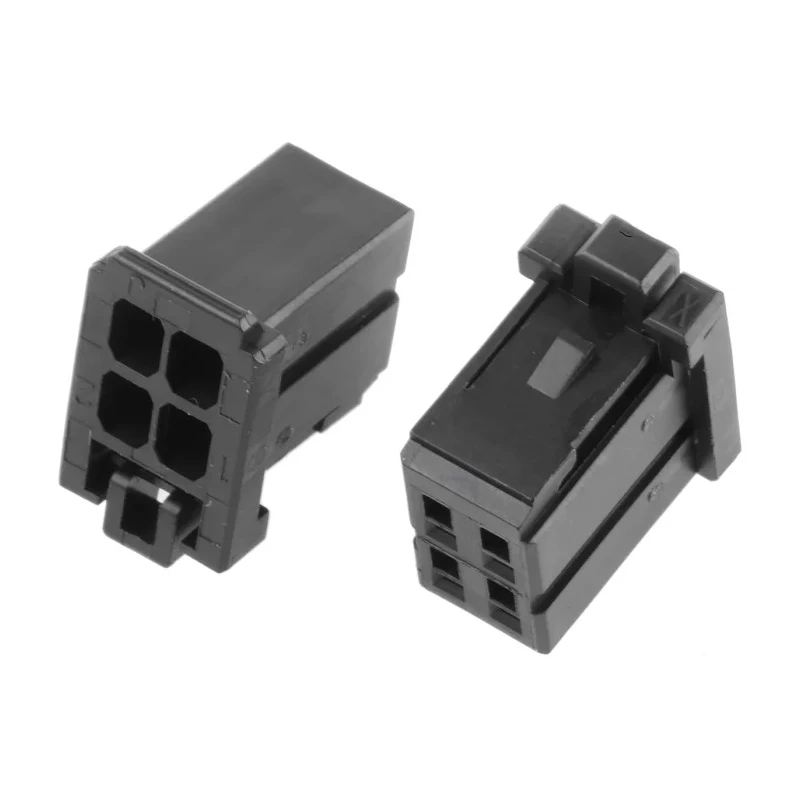

TE Connectivity Dynamic 1000 Series Female Connector Housing 4 Contacts 2 Rows 2.5mm Pitch Straight 1-1827864-2
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 7.6mm |
| Width | 12.45mm |
| Mount Type | Wire-to-Board |
| Housing Material | Polyethylene Terephthalate |
| Series | Dynamic 1000 |
| Number of Rows | 2 |
| Pitch | 2.5mm |
| For Use With | Wire-to-Wire Connector, Wire-to-Board Connector, Wire-to-Panel Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
Key Features
- The housing features a polyethylene terephthalate material construction ensuring durability.
- Designed for wire-to-wire, wire-to-board, and wire-to-panel connections with a straight orientation.
- Compact length of 7.6 mm and width of 12.45 mm enable space-saving in miniaturized applications.
- The connector incorporates housing lock and keying for precise and secure mating.
- Color-coded with circuit numbers to aid in accurate mating identification and wiring.
- Manufactured in Japan, meeting high-quality standards.
- Part of the Dynamic 1000 series, known for the smallest signal connectors in the Dynamic range.
- Suitable for electronic, industrial, telecommunications, and automotive applications.
Product Description
TE Connectivity 1-1827864-2 Dynamic 1000 Series Female Connector Housing is a precision-engineered 4-contact housing designed for wire-to-board applications requiring reliable, compact signal connections.
This connector features a 2.5 mm pitch in a 2-row, 4-way configuration, offering a straight orientation ideal for PCB mounting and wire harness assembly. Constructed from robust polyethylene terephthalate, this housing ensures long-lasting durability and resistance to mechanical stresses in electronic devices.
The Dynamic 1000 series is recognized for its compact size as the smallest signal connector family, perfect for use in miniaturized equipment requiring space efficiency.
The housing incorporates a lance structure to prevent terminal contact lance breakage during assembly, along with locking and keying features for secure and accurate mating of connectors.
It is color-coded and marked with circuit numbers facilitating easy identification and correct wiring during installation.
Suitable industrial applications include electronic component assembly, telecommunications equipment, automotive electronics, instrumentation, and other precision electronic devices where space is constrained.
Manufactured in Japan, this Connector Housing meets rigorous quality and reliability standards expected in professional electronics manufacturing. The housing material is polyethylene terephthalate providing durability and thermal resistance.
Compatible with wire-to-wire, wire-to-board, and wire-to-panel connectors. The pitch of 2.5 mm allows for fine-pitch connector arrangements. Four contacts arranged in two rows provide reliable multi-pin connections. The connector orientation is straight facilitating direct PCB insertion.
Housing locking and keying mechanisms ensure secure mating and prevent mismatches. Compact dimensions enable usage in space-limited circuit board designs. Explore more from TE Connectivity dynamic series and other premium connectors on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a pitch of 2.5 mm, allowing for fine-pitch connector arrangements.
This model has 4 contacts arranged in 2 rows, providing reliable multi-pin connections.
The connector housing is designed with a straight orientation, facilitating direct PCB insertion.
The housing is constructed from polyethylene terephthalate, ensuring durability and thermal resistance.
It is manufactured in Japan, meeting high-quality standards expected in professional electronics.
This model is suitable for wire-to-wire, wire-to-board, and wire-to-panel connections.
The housing has a length of 7.6 mm and a width of 12.45 mm, enabling space-saving in miniaturized applications.
This connector housing is part of the Dynamic 1000 series, known for its compact size as the smallest signal connector family.
Yes, it incorporates housing locking and keying mechanisms to ensure secure mating and prevent mismatches.
It is suitable for applications in electronic component assembly, telecommunications equipment, automotive electronics, and instrumentation.
The mount type for this connector housing is wire-to-board, making it ideal for PCB mounting and wire harness assembly.
