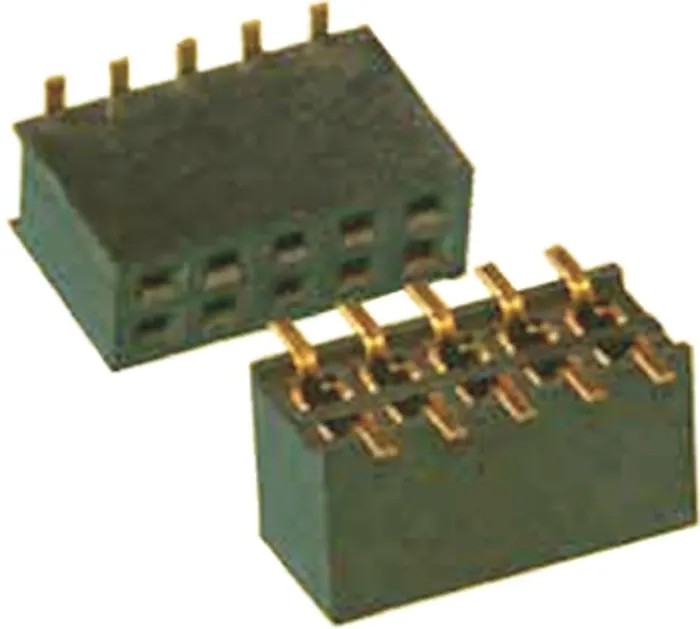

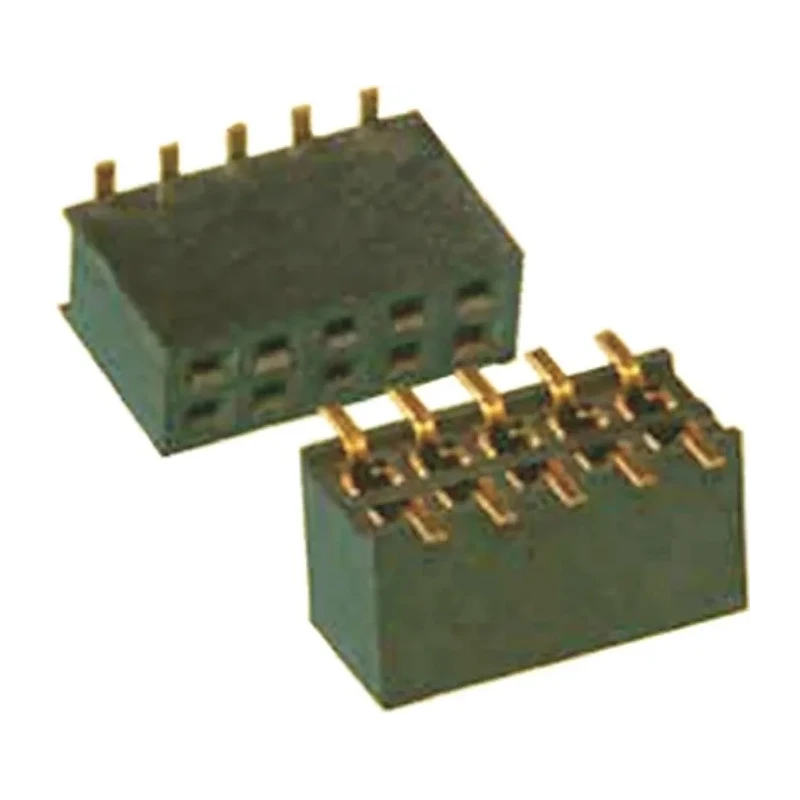

Amphenol Communications Solutions Minitek Series Straight Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm 20021321-00020C4LF

Amphenol Communications Solutions 20021321-00020C4LF Minitek Series Straight Surface PCB Socket is a high-quality, reliable connector designed for board-to-board applications with a socket strip sub-type. Featuring 20 contacts arranged in 2 rows with a 1.27 mm pitch, this surface-mount socket is built to provide excellent electrical connectivity with a current rating of 12 A and voltage rating up to 125 V.

The socket features gold plated copper contacts ensuring superior conductivity and corrosion resistance. The housing is made from high-temperature, black thermoplastic material rated UL 94 V-0 for flammability, supporting operating temperatures from -55°C up to 125°C, which makes it suitable for demanding industrial and electronic environments.

With a stacking height of 6.9 mm and a straight orientation, this connector facilitates compact and robust PCB mounting solutions. It is compatible with mating MINITEK SMT headers and supports up to 100 mating cycles, ensuring durability and reliable long-term performance.

Manufactured in China, this socket is part of the extensive MINITEK 127 series connector system, known for its modularity and compatibility across various wire to board and cable to board applications. This system is not proprietary, allowing interoperability with other common connector designs.

This PCB socket features a straight orientation with board-to-board connector system. It supports a voltage rating of 125 V and a current rating of 12 A. Constructed from gold-plated copper contacts ensuring reliable electrical performance.

The socket can operate in temperatures ranging from -55°C to 125°C. Its stacking height is 6.9 mm, suitable for compact electronic assemblies. Material used is high temperature, black thermoplastic with UL 94 V-0 flammability rating.

Designed for wave solder applications and can withstand up to 100 mating cycles. Compatible with a wide range of MINITEK series accessories and headers. Ideal for electronics manufacturing and industrial PCB assembly uses.

This Minitek Series PCB socket is ideal for use in electronic component manufacturing, industrial equipment, and electrical assemblies requiring reliable surface mount connectors. The durable design combined with its high current and voltage ratings makes it suitable for demanding industrial, manufacturing, and laboratory electronics applications.
